A syslog connector is added to the gateway environment where logs will be sent as syslog. Adding Connectors to Gateway Environments


After this setting is made, this connector will be active by default for all API Proxies that will be added.

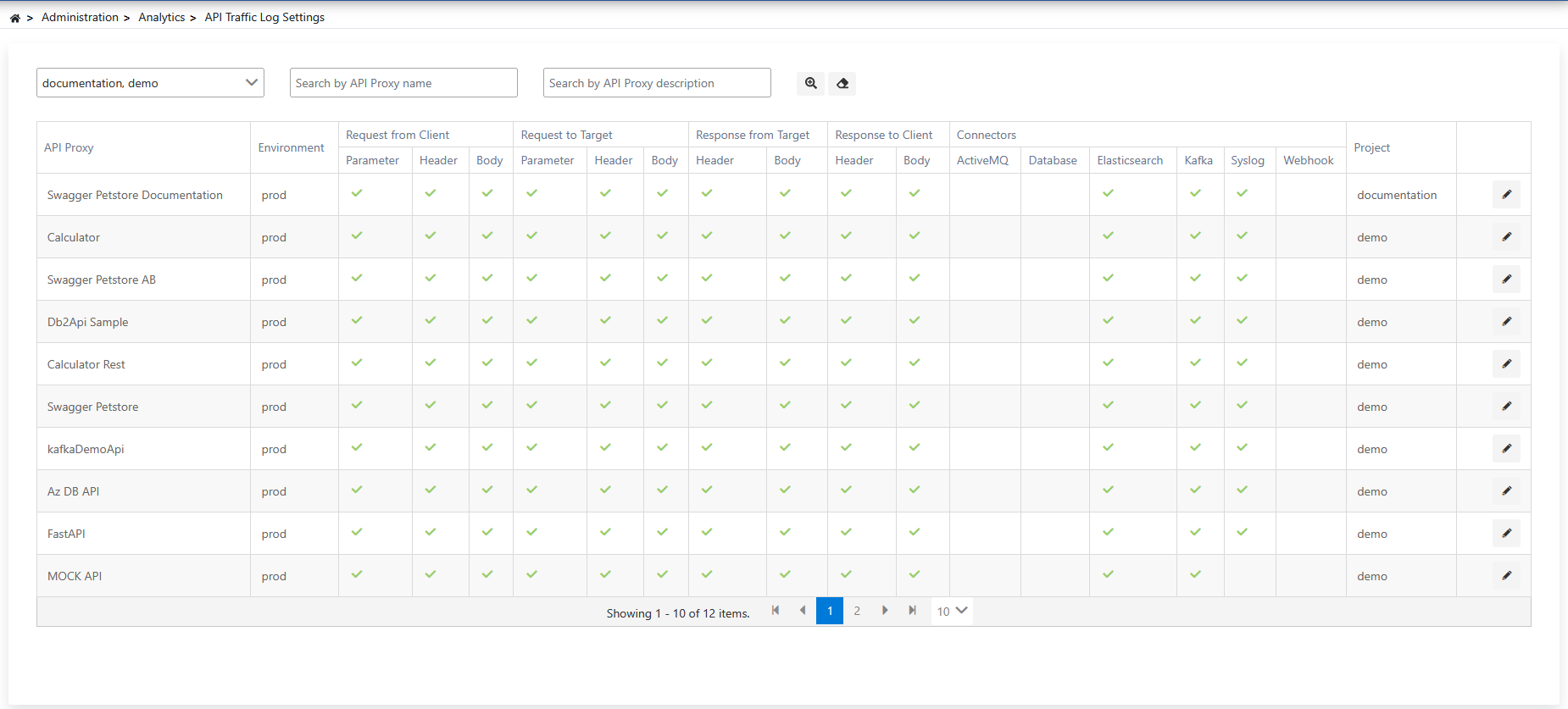

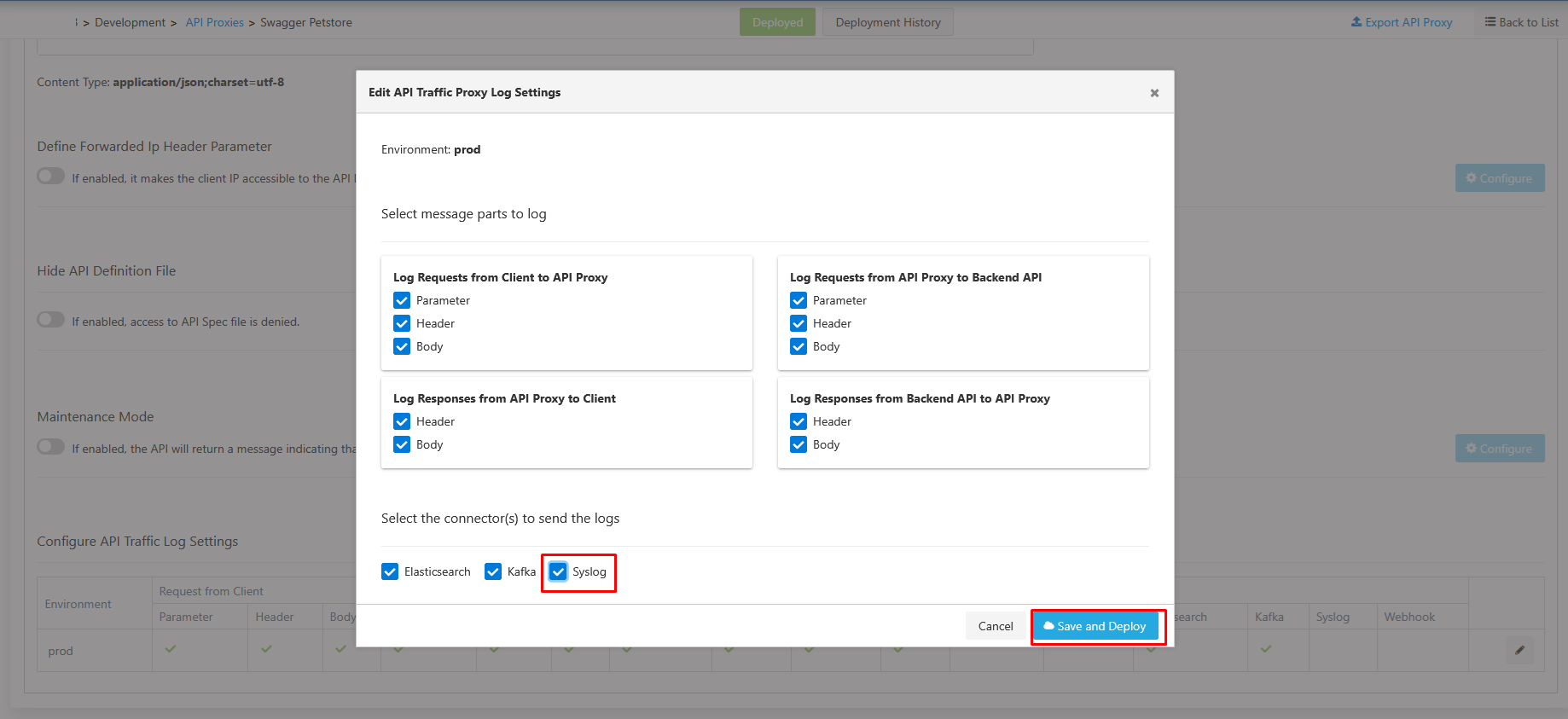

This setting must be enabled for API Proxies added before this setting was implemented. This can be done either from the settings tab of the relevant API Proxy or from the “Administration → Analytics → API Traffic Log Settings” page.



After the necessary settings have been made, the API Traffic Log format sent to syslog will be as follows. Click here for documentation on the data structure related to API traffic logs.

{
  "@timestamp":"2025-06-11T08:19:48.810Z",
  "aci":"da7082df-fbea-4352-a2a2-db72acf97f11",
  "ei":"63ca7ed05c8e155862d99e11",
  "pi":"68493b6e80f5de2a3c29c511",
  "api":"68493bb680f5de2a3c29c611",
  "apn":"Swagger Petstore Documentation",
  "eat":"REST",
  "aprp":"/documentation/petstore",
  "apmi":"28bf6962-b1db-4339-bf15-bc3a6392639",
  "apmn":"/pet/findByStatus",
  "hr1ra":"XX.XXX.0.1",
  "hr1hm":"GET",
  "hr1pi":"/documentation/petstore/pet/findByStatus",
  "uok":"anonymous",
  "ra":"https://petstore.swagger.io/v2/pet/findByStatus?status=sold",
  "rrc":0,
  "rfc":0,
  "trqpt":3,
  "trspt":1,
  "trt":325,
  "tapt":329,
  "sr1t":0,
  "sr2t":4114,
  "ch":false,
  "sc":200,
  "rt":"SUCCESS",
  "fcrp":[{"k":"status","v":"sold"}],
  "fcrh":[{"k":"X-Real-IP","v":"10.244.0.81"}],
  "tbap":[{"k":"status","v":"sold"}],
  "tbah":[{"k":"X-Real-IP","v":"10.244.0.81"}],
  "fbarh":[{"k":"Connection","v":"close"}],
  "fbarb":"[{\"id\":9223372036854748624,\"name\":\"Salma\",\"status\":\"sold\"}]",
  "tch":[{"k":"Connection","v":"close"}],
  "tcb":"[{\"id\":9223372036854748624,\"name\":\"Salma\",\"status\":\"sold\"}]"
}
