These results reflect a zero-policy scenario: only request routing and asynchronous traffic logging were measured. In production environments, actual throughput will be lower depending on the type and number of active policies. CPU-intensive policies (XSLT, XSD validation, encryption) reduce throughput, while policies requiring external system calls (LDAP, OAuth2 introspection) increase response latency. See the Policy Performance Impact section for details.

Test Environment

The benchmark was run across four isolated servers. Each component was deployed on a separate machine to prevent measurements from interfering with each other.

Load Generator

6 vCPU · 12 GB RAM · 100 GB NVMe
wrk2 load generation tool
CentOS, single server

Upstream (Backend)

6 vCPU · 12 GB RAM · 100 GB NVMe
High-capacity Go-based HTTP server (~70K RPS)
Network RTT to load generator: ~0.5 ms

Elasticsearch

8 vCPU · 24 GB RAM · 200 GB NVMe
Elasticsearch 8 — traffic log target
Physically separate from the gateway server

API Gateway (Worker)

12 vCPU (Intel Broadwell @ 2.0 GHz) · 48 GB RAM · 250 GB NVMe
Runs on Kubernetes
Hosts Worker pods only

API Manager, MongoDB, and the Kubernetes master run on a separate server. These components have no direct impact on gateway performance; they only serve configuration data during the load test.

Gateway Resource Configurations (Tiers)

The gateway was tested under four different resource constraints on Kubernetes. Each tier represents a real-world production deployment scenario.

Tier	CPU	Memory	IO Threads	Worker Threads	VT Parallelism
W1	1	2 GB	2	256	1
W2	2	2 GB	4	512	2
W4	4	4 GB	8	1,024	4
W8	8	8 GB	16	3,072	8

The JVM engine is G1GC across all tiers. Heap size, Direct Memory, and GC region size are automatically determined by the entrypoint per tier (W1/W2: Heap 60%, W4/W8: Heap 65%). Backend I/O and traffic logging run on Virtual Threads (VT); HTTP dispatch uses Platform Threads (PT).

Methodology

Load Generator: wrk2

Tests were conducted with wrk2, a high-precision HTTP load generator designed to track actual request rates and eliminate coordinated omission bias. Core parameter — R=999999 Overload Method:

wrk2 -t<threads> -c<connections> -d300s -R999999 --latency <url>

The R=999999 target rate is set far above the gateway’s maximum sustainable RPS. This means the measured value is the system’s true maximum throughput, not a pre-configured rate.

Test Parameters

Parameter	Value
Request types	GET · POST 1KB · POST 5KB
Duration	300 seconds
Repetitions	3 runs per concurrency point
Reported value	Average of 3 runs
Latency metrics	P50 · P99
ES modes	ES Off · ES On
Policy	None (zero-policy, pure routing)

Upstream Is Not a Bottleneck

The upstream server can sustain approximately 4–5× the gateway’s maximum throughput (~70,000 RPS). All observed limits originate from gateway capacity; the upstream is not a bottleneck. Network latency between the load generator and the gateway was measured at ~0.5 ms.

ES Modes

ES Off: Traffic logs are not written to Elasticsearch. Measures pure gateway overhead.
ES On: An asynchronous traffic log is written to Elasticsearch for each request. Simulates a real production scenario.

Results

1. Peak Throughput Summary

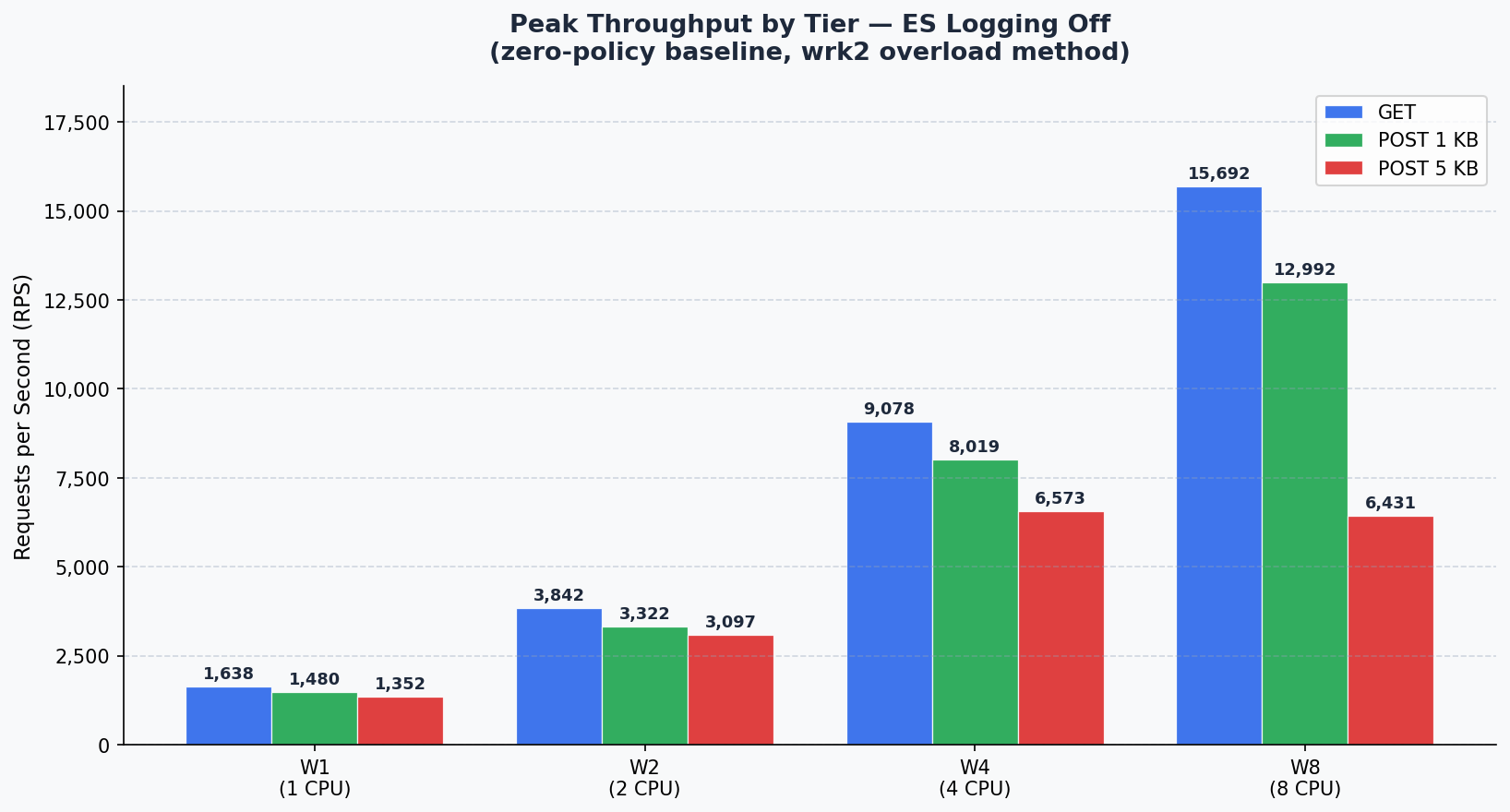

Maximum RPS observed across all concurrency points for each tier and request type.

ES Off

Tier	CPU	GET (RPS)	POST 1KB (RPS)	POST 5KB (RPS)
W1	1	1,638	1,480	1,352
W2	2	3,842	3,322	3,097
W4	4	9,078	8,019	6,573
W8	8	15,692	12,992	6,431

ES On

Tier	CPU	GET (RPS)	POST 1KB (RPS)	POST 5KB (RPS)
W1	1	1,422	1,342	1,148
W2	2	3,385	2,498	2,237
W4	4	7,490	5,980	5,147
W8	8	14,256	12,704	6,543

At the W8 tier, the ES On/Off difference is significantly smaller than at lower tiers. The async processing capacity provided by 8 CPUs largely absorbs Elasticsearch write latency.

2. CPU Scaling Efficiency

RPS per CPU core and scaling ratio relative to W1 (ES Off, GET).

Tier	CPU	Peak RPS	RPS/CPU	Scaling
W1	1	1,638	1,638	1.00×
W2	2	3,842	1,921	1.17×
W4	4	9,078	2,269	1.38×
W8	8	15,692	1,961	1.20×

Total increase from W1 to W8 is 9.6×. Exceeding the theoretical ideal of 8× (120% efficiency) demonstrates that the gateway achieves super-linear scaling through its shared connection pool and virtual thread model.

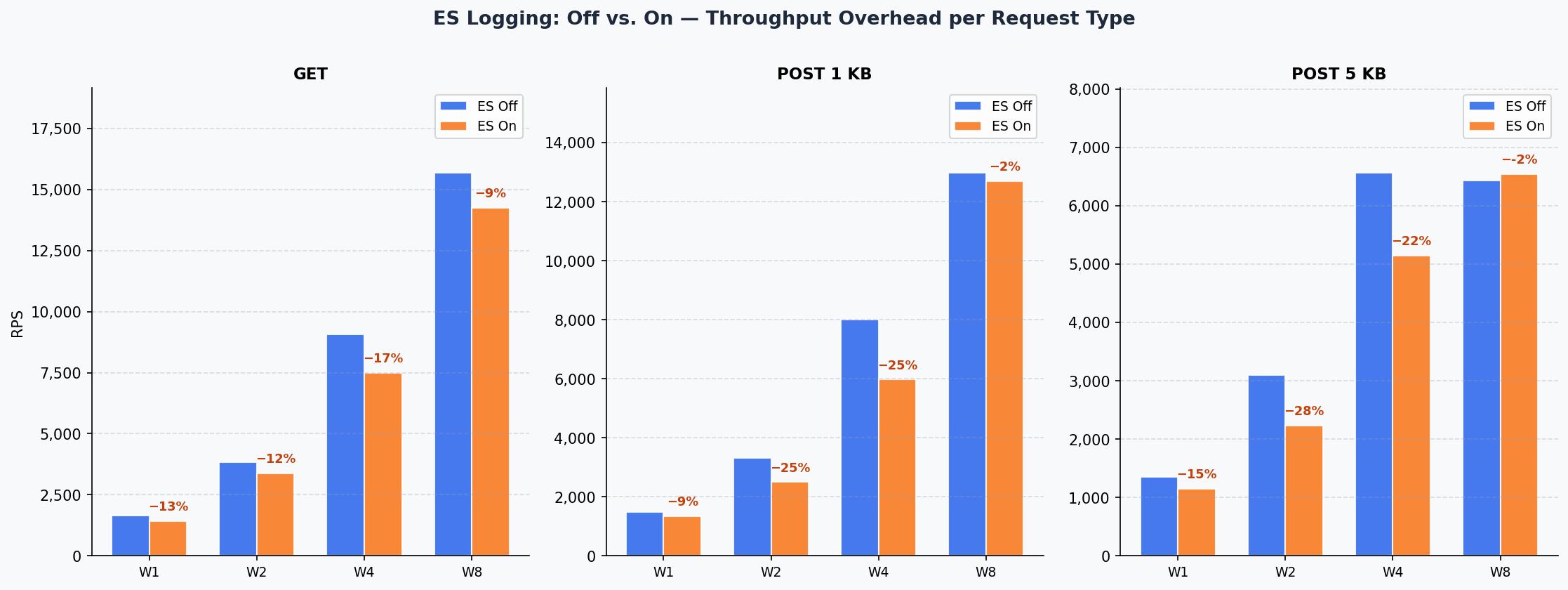

3. ES On vs. ES Off Comparison

GET
POST 1KB
POST 5KB

Tier	ES Off	ES On	Overhead
W1	1,638	1,422	13.2%
W2	3,842	3,385	11.9%
W4	9,078	7,490	17.5%
W8	15,692	14,256	9.2%

Tier	ES Off	ES On	Overhead
W1	1,480	1,342	9.3%
W2	3,322	2,498	24.8%
W4	8,019	5,980	25.4%
W8	12,992	12,704	2.2%

Tier	ES Off	ES On	Overhead
W1	1,352	1,148	15.1%
W2	3,097	2,237	27.8%
W4	6,573	5,147	21.7%
W8	6,431	6,543	~0%

4. Concurrency Curves (Per Tier)

W1 (1 CPU / 2GB)
W2 (2 CPU / 2GB)
W4 (4 CPU / 4GB)
W8 (8 CPU / 8GB)

GET

Conns	ES-OFF RPS	ES-OFF P50	ES-OFF P99	ES-ON RPS	ES-ON P50	ES-ON P99
100	1,447	56 ms	3.15 s	1,198	29 ms	720 ms
250	1,448	57 ms	384 ms	1,198	31 ms	165 ms
500	1,638	55 ms	461 ms	1,422	65 ms	304 ms

POST 1KB

Conns	ES-OFF RPS	ES-OFF P50	ES-OFF P99	ES-ON RPS	ES-ON P50	ES-ON P99
100	1,338	2.48 s	5.91 s	1,097	36 ms	652 ms
250	1,348	103 ms	1.57 s	1,099	45 ms	658 ms
500	1,480	93 ms	1.11 s	1,342	65 ms	297 ms

POST 5KB

Conns	ES-OFF RPS	ES-OFF P50	ES-OFF P99	ES-ON RPS	ES-ON P50	ES-ON P99
100	1,196	61 ms	1.38 s	899	27 ms	225 ms
250	1,199	70 ms	796 ms	898	32 ms	211 ms
500	1,352	107 ms	540 ms	1,148	45 ms	496 ms

GET

Conns	ES-OFF RPS	ES-OFF P50	ES-OFF P99	ES-ON RPS	ES-ON P50	ES-ON P99
250	3,498	58 ms	3.03 s	2,995	43 ms	1.30 s
500	3,493	73 ms	653 ms	2,996	92 ms	2.79 s
750	3,493	57 ms	427 ms	2,993	91 ms	1.52 s
1,000	3,842	81 ms	396 ms	3,385	74 ms	1.29 s

POST 1KB

Conns	ES-OFF RPS	ES-OFF P50	ES-OFF P99	ES-ON RPS	ES-ON P50	ES-ON P99
250	2,746	45 ms	1.32 s	2,246	13 ms	313 ms
500	2,745	41 ms	305 ms	2,246	23 ms	709 ms
750	2,746	31 ms	222 ms	2,246	48 ms	531 ms
1,000	3,322	56 ms	391 ms	2,498	95 ms	550 ms

POST 5KB

Conns	ES-OFF RPS	ES-OFF P50	ES-OFF P99	ES-ON RPS	ES-ON P50	ES-ON P99
250	2,496	26 ms	413 ms	1,996	42 ms	320 ms
500	2,497	44 ms	880 ms	1,997	69 ms	2.33 s
750	2,494	73 ms	293 ms	1,997	59 ms	967 ms
1,000	3,097	87 ms	319 ms	2,237	139 ms	1.63 s

GET

Conns	ES-OFF RPS	ES-OFF P50	ES-OFF P99	ES-ON RPS	ES-ON P50	ES-ON P99
250	8,441	10.9 s	21.0 s	7,145	10.7 s	17.1 s
500	8,898	1.75 s	7.96 s	7,490	56 ms	1.37 s
1,000	8,929	772 ms	5.06 s	7,478	162 ms	2.68 s
2,000	9,078	193 ms	4.00 s	6,836	12.4 s	26.6 s

POST 1KB

Conns	ES-OFF RPS	ES-OFF P50	ES-OFF P99	ES-ON RPS	ES-ON P50	ES-ON P99
250	7,382	22.7 s	35.7 s	5,104	24.5 s	49.9 s
500	7,377	14.8 s	37.8 s	5,699	11.2 s	31.2 s
1,000	7,727	8.88 s	25.3 s	5,656	7.06 s	34.0 s
2,000	8,019	1.65 s	8.79 s	5,980	7.41 s	20.4 s

POST 5KB

Conns	ES-OFF RPS	ES-OFF P50	ES-OFF P99	ES-ON RPS	ES-ON P50	ES-ON P99
250	5,215	24.4 s	42.5 s	4,330	13.2 s	29.1 s
500	5,919	6.26 s	18.1 s	4,700	2.23 s	8.15 s
1,000	6,071	2.13 s	12.4 s	4,705	2.02 s	8.52 s
2,000	6,573	630 ms	6.56 s	5,147	1.44 s	7.89 s

GET

Conns	ES-OFF RPS	ES-OFF P50	ES-OFF P99	ES-ON RPS	ES-ON P50	ES-ON P99
250	13,893	33 ms	3.74 s	12,983	21 ms	2.90 s
500	13,964	32 ms	2.10 s	12,893	115 ms	2.08 s
1,000	13,972	30 ms	1.21 s	12,972	36 ms	1.29 s
2,000	13,960	67 ms	6.06 s	12,804	98 ms	5.04 s
3,000	—	—	—	14,256	1.70 s	6.57 s
4,000	15,692	319 ms	4.06 s	—	—	—

POST 1KB

Conns	ES-OFF RPS	ES-OFF P50	ES-OFF P99	ES-ON RPS	ES-ON P50	ES-ON P99
250	12,992	159 ms	5.79 s	11,984	45 ms	1.68 s
500	12,974	35 ms	3.45 s	11,825	2.20 s	8.69 s
1,000	12,972	46 ms	2.44 s	11,978	246 ms	4.09 s
2,000	12,963	77 ms	2.58 s	11,948	513 ms	5.45 s
3,000	—	—	—	12,704	153 ms	3.91 s
4,000	12,988	742 ms	19.1 s	—	—	—

POST 5KB

Conns	ES-OFF RPS	ES-OFF P50	ES-OFF P99	ES-ON RPS	ES-ON P50	ES-ON P99
250	6,431	1.39 s	5.98 s	5,793	2.22 s	13.8 s
500	6,420	74 ms	4.65 s	5,928	80 ms	4.81 s
1,000	6,377	3.10 s	15.6 s	5,985	55 ms	4.07 s
2,000	6,347	625 ms	13.6 s	5,985	178 ms	1.60 s
3,000	—	—	—	6,543	263 ms	1.61 s
4,000	6,423	4.04 s	29.5 s	—	—	—

5. JVM Diagnostics

ES Off
ES On

Tier	Heap Usage	Young GC	Threads (Peak)
W1	135 / 1,189 MB (11%)	14,923× / 343 s	351
W2	201 / 1,230 MB (16%)	7,245× / 156 s	609
W4	724 / 2,664 MB (27%)	10,570× / 213 s	1,129
W8	933 / 5,328 MB (18%)	14,308× / 192 s	3,189

Tier	Heap Usage	Young GC	Old GC	Threads (Peak)
W1	455 / 1,189 MB (38%)	15,364× / 311 s	0	354
W2	791 / 1,230 MB (64%)	11,430× / 392 s	40× / 10 s	612
W4	1,918 / 2,664 MB (72%)	12,037× / 711 s	23× / 9 s	1,132
W8	2,983 / 5,328 MB (56%)	11,491× / 600 s	0	3,120

Blocked thread count remained 0 across all tiers and modes. No deadlocks or resource contention occurred.

Policy Performance Impact

Benchmark results reflect zero-policy routing. In real production scenarios, each policy adds its own cost depending on its mechanism. These costs fall into two categories: CPU load and external latency.

CPU-Intensive Policies — Reduce Throughput

These policies perform computation on the gateway for each request. CPU is consumed directly and can be compensated by scaling up the tier or adding horizontal replicas.

XML / XSD Schema Validation

The request or response body is parsed and validated against a loaded XSD schema on every call. Schema complexity and message size increase CPU consumption linearly.For example, a complex XSD schema on a 50KB XML body can reduce throughput by 30–60% on its own. If the schema is simple and messages are small, the impact remains limited.

XML Transformation (XSLT)

XSLT runs a full XML parse and template transformation cycle on the gateway for every request. A complex XSLT template alone is sufficient to double CPU consumption.Processing cost differs significantly between XSLT 1.0 and 2.0. W4 or higher tiers are recommended for large messages or frequently triggered endpoints.

JSON Schema Validation

The JSON equivalent of XSD validation. The JSON body is parsed and traversed against defined JSON Schema rules on each request. Schema depth (number of nested objects) and message size are the primary CPU drivers.

Encryption / Decryption (WS-Security, JWE)

XML encryption, WS-Security body encryption, or JWE token decryption involve cryptographic operations that significantly increase CPU usage. Asymmetric encryption (RSA) carries a much higher cost than symmetric alternatives (AES).

Digital Signature and Verification (WS-Security, JOSE)

Computing or verifying a signature per request requires cryptographic operations. RSA-2048 or RSA-4096 based signatures place a noticeable throughput burden compared to HMAC-based alternatives. Algorithm selection matters for high-traffic endpoints.

Content Filtering

Body content is scanned against regex or custom rules, evaluating the full message on every request. As rule count grows and messages get larger, CPU cost escalates non-linearly.

Script Policy (Groovy)

Groovy scripts run on the JVM with startup compilation cost reduced through script caching. However, script complexity directly determines CPU usage. Loop-heavy, parse-intensive, or computation-heavy scripts can substantially reduce throughput.

Policies That Add External Latency — Increase Response Time

These policies connect to an external system to perform work. Gateway CPU is largely idle while waiting; response time increases by the round-trip to the external system. Scaling up CPU does not reduce this latency — the external system’s performance and network RTT are the controlling factors.

LDAP Authentication

Each request connects to an LDAP server to verify username and password. The network round-trip to the LDAP server (typically 1–10 ms) is added to every request. Without connection pooling, connection setup cost also applies per request.If the LDAP server is in the same datacenter, impact is relatively contained. Across datacenters or in cloud environments, latency can reach tens of milliseconds and throughput drops disproportionately.

OAuth2 Token Introspection / OIDC

The token is sent to the Authorization Server for validation on every request. Response time depends entirely on the AS’s response speed. Without token caching, this creates significant pressure on both throughput and latency.With token caching enabled, cost can be substantially reduced depending on the cache miss rate. Cache TTL should be set carefully based on business requirements.

JWT (Remote JWKS Validation)

If the signing key must be fetched from a remote JWKS endpoint, each key retrieval is a network call. When JWKS caching is enabled, this cost is largely eliminated; no additional latency occurs as long as the cache remains valid.

SAML Authentication

When SAML assertions need to be validated against an IdP (Identity Provider), an external connection is unavoidable. WS-Trust or SOAP-based IdP calls add both network latency and processing cost.

Backend Authentication (Basic / API Key / Token)

If authentication credentials forwarded to the backend service need to be renewed or validated per request (e.g., dynamic token retrieval), an additional external call is made. No cost is incurred when static credentials are used.

API Call Policy

Calling another API within the policy pipeline adds the called API’s response time as latency. Multiple sequential API calls multiply latency. This cost can be minimized through conditional execution and result caching.

Low-Impact Policies

The following policies add minimal CPU and zero external latency on the gateway. Their impact on performance is generally negligible even in high-traffic environments.

IP Allow / Block List

Incoming IP is compared against an in-memory list. Completes in microseconds.

Rate Limiting / Quota

Counting against local counters or shared cache. Pure in-memory operation when no external cache integration is present.

Header Manipulation

Adding, removing, or modifying specific headers are string operations; CPU cost is negligible.

Basic Authentication (Local)

When credentials are defined on the gateway without an external LDAP/directory service, validation is entirely in-memory.

Policies that add external latency also reduce throughput — threads waiting for external responses cannot serve new requests. For policies that depend on external system calls, high-thread-capacity tiers like W8 significantly mitigate this effect.

Analysis

CPU Scaling: Super-Linear Efficiency

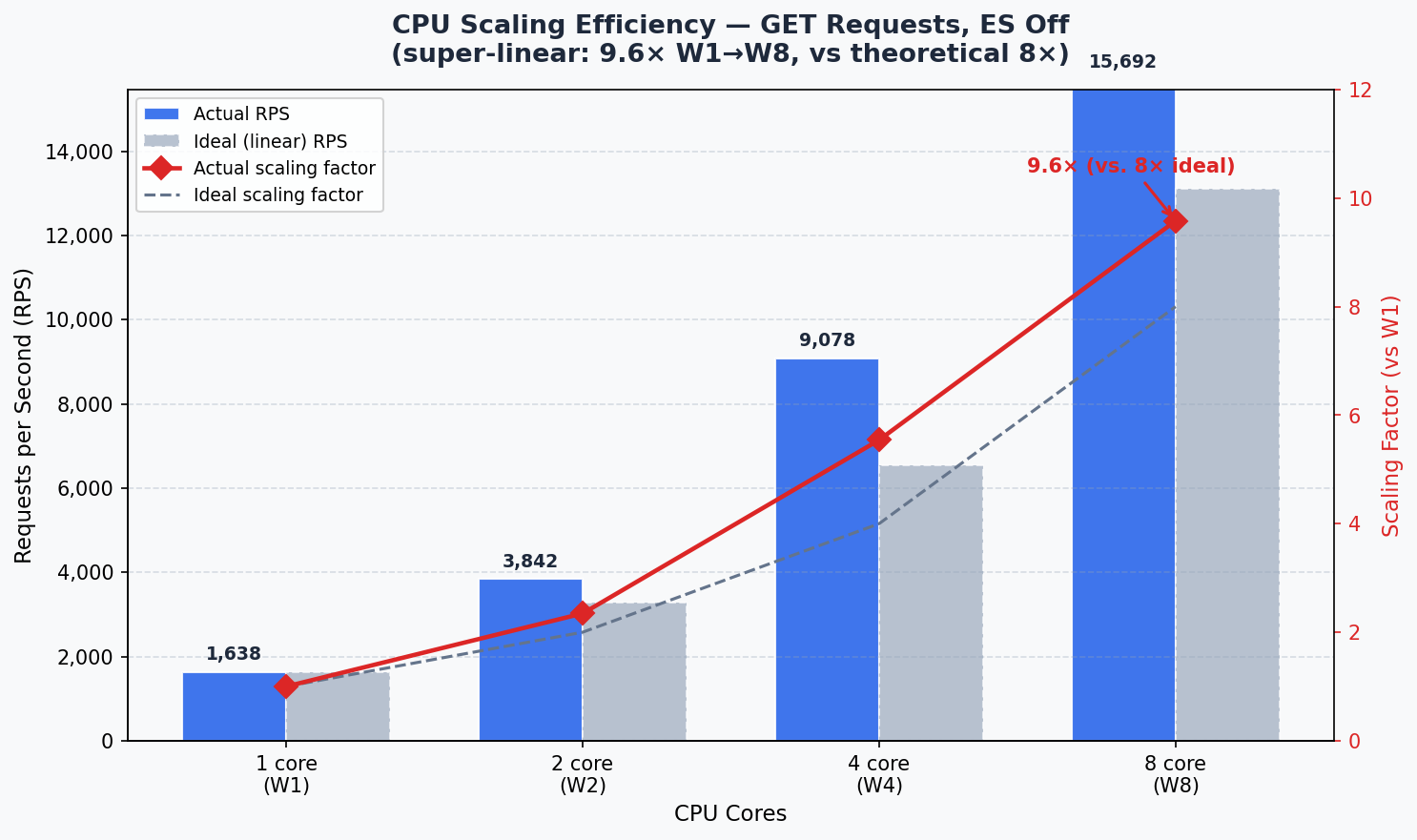

GET throughput increased 9.6× from W1 to W8. Exceeding the theoretical ideal of 8× (120% efficiency) demonstrates super-linear scaling made possible by the shared connection pool and Java virtual thread model working together.

Elasticsearch Logging Overhead

ES logging overhead decreases disproportionately as tier size grows. At W8, overhead is just 9% for GET and 2% for POST 1KB. The asynchronous processing capacity of 8 CPUs largely absorbs Elasticsearch write latency.

Architectural Recommendation for Policy Design

Limit CPU-intensive policies (XSLT, encryption, schema validation) to only the necessary endpoints using conditional execution. Back latency-adding policies (LDAP, OAuth2 introspection) with token or result caching. Applying both measures together eliminates the majority of policy cost.

Capacity Planning Guide

The values below represent the zero-policy baseline (routing + ES logging only). Actual capacity with policy load will be lower.

Expected Load	Recommended Starting Tier
< 1,000 RPS	W1
1,000–3,000 RPS	W2
3,000–7,000 RPS	W4
7,000–14,000 RPS	W8
> 14,000 RPS	W8 × N (horizontal scale)

Cache Performance

The Cache component stores API responses in memory, serving repeated requests directly without forwarding them to the backend. The results below show the maximum capacity of the cache component for GET (read) and PUT (write) operations across different resource configurations.

The Cache component is Hazelcast-based and runs with the ZGC garbage collector. JVM parameters are automatically determined by the entrypoint for each tier. Test methodology is the same as the gateway benchmark (R=999999 overload, wrk2).

Cache Resource Configurations

Tier	CPU	Memory	Hazelcast Op Threads	VT Parallelism
W1	1	2 GB	2	1
W2	2	2 GB	4	2
W4	4	4 GB	8	4
W8	8	8 GB	16	8

Peak Throughput

Tier	CPU	GET (RPS)	PUT (RPS)
W1	1	2,169	1,974
W2	2	5,037	3,673
W4	4	7,896	6,632
W8	8	13,619	13,069

CPU Scaling Efficiency

Tier	CPU	GET RPS	GET/CPU	PUT RPS	PUT/CPU	Scaling (GET)
W1	1	2,169	2,169	1,974	1,974	1.00×
W2	2	5,037	2,519	3,673	1,837	1.16×
W4	4	7,896	1,974	6,632	1,658	0.91×
W8	8	13,619	1,702	13,069	1,634	0.79×

Total increase from W1 to W8 is 6.3× for GET and 6.6× for PUT, demonstrating near-linear scaling relative to CPU increase (8×). PUT operations reach near-parity with GET at W8, showing that write bottlenecks are eliminated at higher CPU counts.

Cache Capacity Planning

Expected Cache Load	Recommended Starting Tier
< 2,000 RPS	W1
2,000–5,000 RPS	W2
5,000–10,000 RPS	W4
> 10,000 RPS	W8

Benchmark Version: v1 · Test Date: March 27, 2026 · Methodology: R=999999 overload, 300 s × 1 run · Environment: Kubernetes (isolated pod), Hazelcast 5.5 + Java 25 ZGC

Next Steps

Capacity Planning

Review hardware requirements and sizing guidance

Deployment Topologies

Explore deployment topologies and high availability options

What Is a Policy?

Learn about policy types and the application mechanism

Message Processing and Policy Execution

Understand the gateway’s request flow and policy ordering

Benchmark Version: v8 · Test Date: March 14, 2026 · Methodology: R=999999 overload, 300 s × 3 runs · Environment: Kubernetes (isolated pod), Undertow + Java 25 Virtual Threads

Getting Started

Understanding Apinizer

Documentation Index

​Test Environment

Load Generator

Upstream (Backend)

Elasticsearch

API Gateway (Worker)

​Gateway Resource Configurations (Tiers)

​Methodology

​Load Generator: wrk2

​Test Parameters

​Upstream Is Not a Bottleneck

​ES Modes

​Results

​1. Peak Throughput Summary

​ES Off

​ES On

​2. CPU Scaling Efficiency

​3. ES On vs. ES Off Comparison

​4. Concurrency Curves (Per Tier)

​5. JVM Diagnostics

​Policy Performance Impact

​CPU-Intensive Policies — Reduce Throughput

​Policies That Add External Latency — Increase Response Time

​Low-Impact Policies

IP Allow / Block List

Rate Limiting / Quota

Header Manipulation

Basic Authentication (Local)

​Analysis

​Cache Performance

​Cache Resource Configurations

​Peak Throughput

​CPU Scaling Efficiency

​Cache Capacity Planning

​Next Steps

Capacity Planning

Deployment Topologies

What Is a Policy?

Message Processing and Policy Execution

Test Environment

Gateway Resource Configurations (Tiers)

Methodology

Load Generator: wrk2

Test Parameters

Upstream Is Not a Bottleneck

ES Modes

Results

1. Peak Throughput Summary

ES Off

ES On

2. CPU Scaling Efficiency

3. ES On vs. ES Off Comparison

4. Concurrency Curves (Per Tier)

5. JVM Diagnostics

Policy Performance Impact

CPU-Intensive Policies — Reduce Throughput

Policies That Add External Latency — Increase Response Time

Low-Impact Policies

Analysis

Cache Performance

Cache Resource Configurations

Peak Throughput

CPU Scaling Efficiency

Cache Capacity Planning

Next Steps
