This document explains how to add LDAPs login credentials in Apinizer and how to log in to Apinizer with your LDAP users as an example.

​
1) Adding LDAPs Connection Information

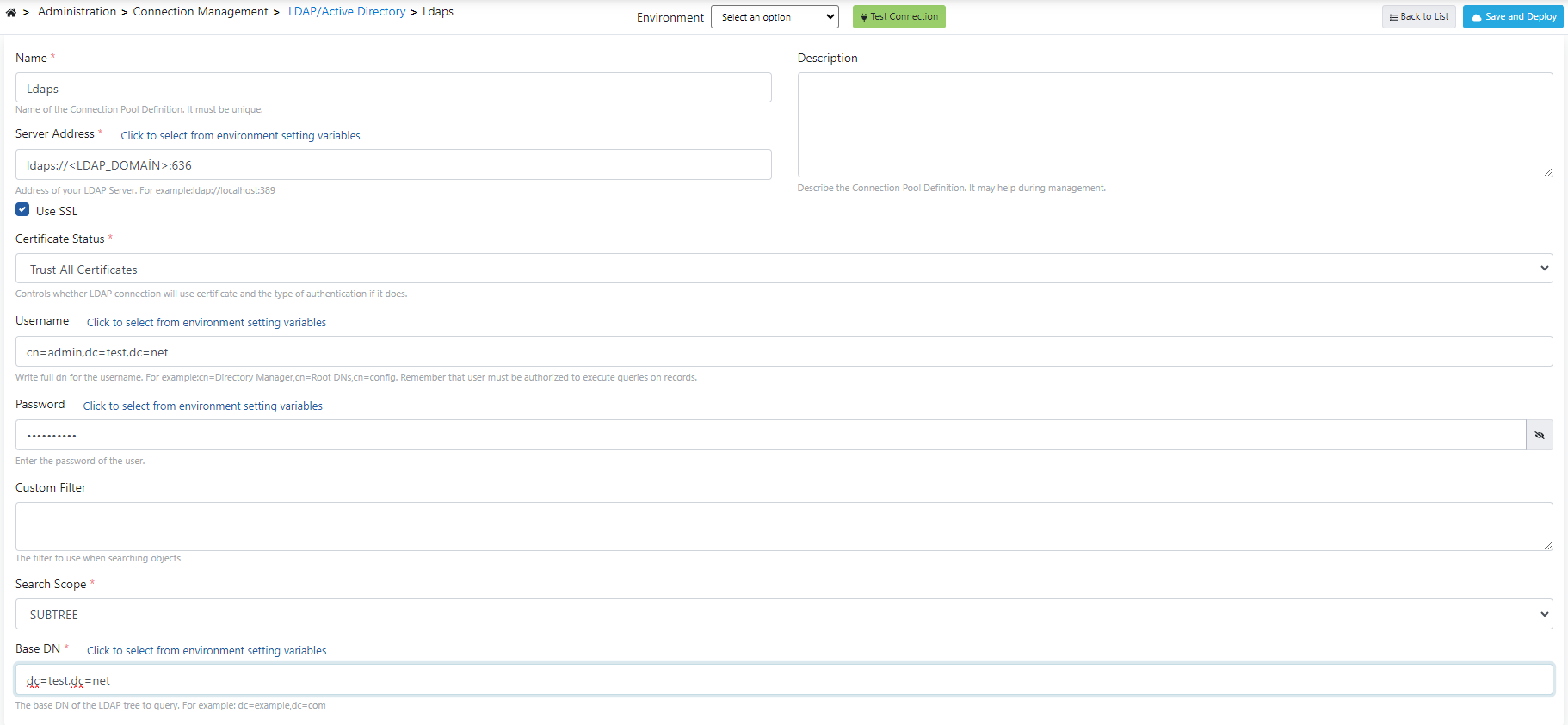

Open the Connection Management → LDAP/Active Directory page and add your information. In the Server Address field, start with ldaps:// followed by the ldap domain and then add port 636. An example image containing LDAPs connection settings is shown below: LDAPs Connection Settings Check the Use SSL button for SSL usage. If Certificate Required is selected in the Certificate Status field, see this address to add a certificate. You can also add a restriction to the search using the Custom Filter field. For example, the filter (&(objectClass=inetOrgPerson)(mail=[email protected])) will work for users belonging to the “inetOrgPerson” class with email address “[email protected]”. In LDAP, users and groups are usually stored under different organizational units. Therefore, different base DN addresses can be given for users and groups:
  • Base DN for users: ou=Users,dc=example,dc=com
  • Base DN for groups: ou=Groups,dc=example,dc=com
After entering your LDAP information, select one from the Environment field on the same page and click the Test Connection button. When the operation is successful, you will see an output like in the example image below. Test Connection Successful You can complete adding LDAPs information to your system by clicking the Save and Deploy button.

​
2) LDAPs Login Settings

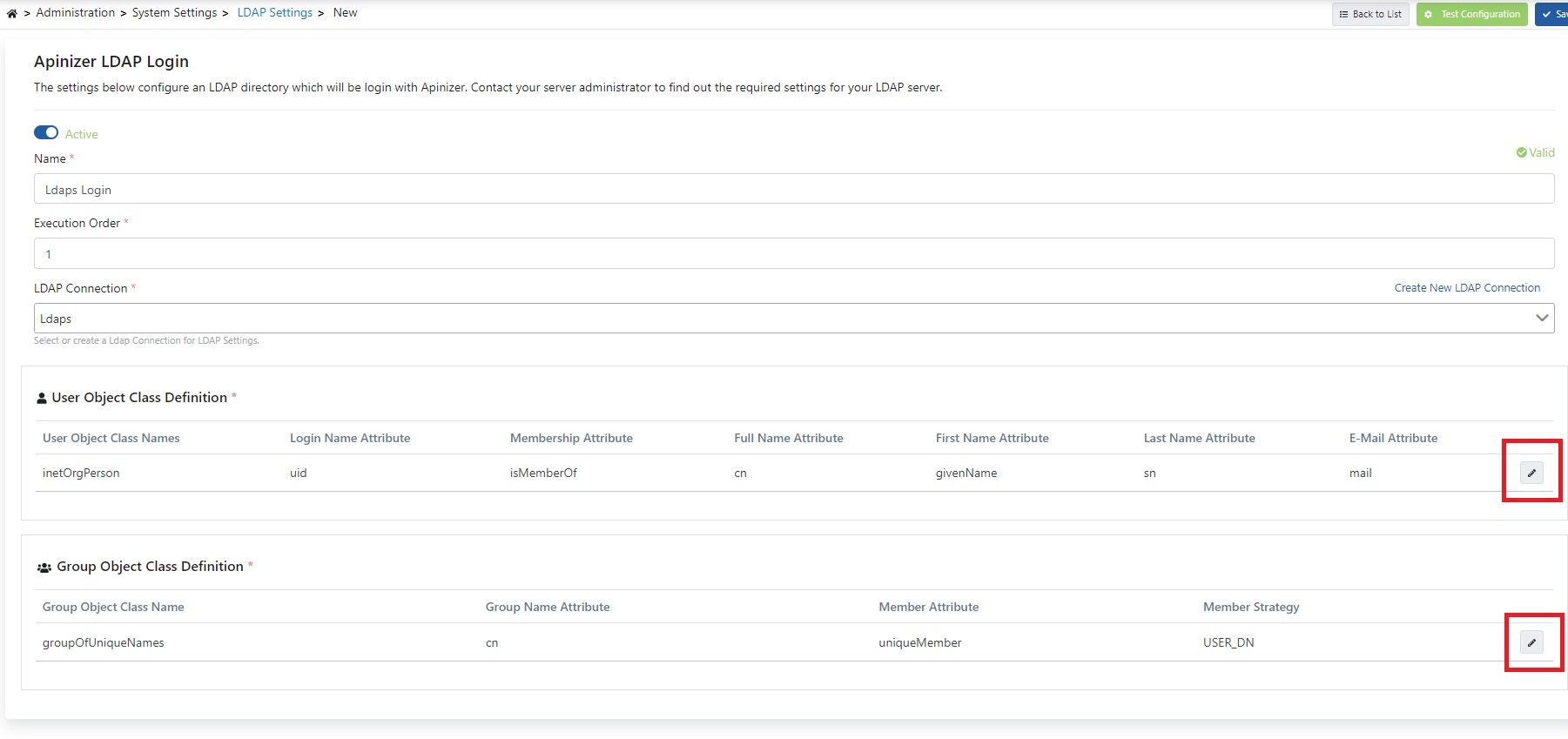

This section contains LDAP connection configurations that will enable integration with identity management systems available in organizations and accessible via LDAP connection so that users can log in to Apinizer. Open the Administration → System Settings → LDAP Settings page. LDAP Settings Page Give a name to the connection as shown in the image above and select the LDAP connection you added in the previous step from the LDAP Connection section. Click the edit button marked with red areas and enter the relevant information. An example usage for the User Object Class Definition popup page is shown in the image below: User Object Class Definition You can view how the relevant fields for User in the example image above can be filled by connecting to your existing LDAP application. One of the points to note is that the object class value is written in the User Object Class Name field. In other fields specified as Attribute, only the attribute expression is written. For this example, you can connect using the JXplorer application and examine its usage from the image below. JXplorer User Example According to the example image above, you can see that the Object Class Name for the user is inetOrgPerson. This information may vary according to your relevant LDAP application. An example usage for the Group Object Class Definition popup page is shown in the image below: Group Object Class Definition You can view how the relevant fields for Group in the example image above can be filled by connecting to your existing LDAP application. One of the points to note is that the object class value is written in the Group Object Class Name field. JXplorer Group Example After entering the information, click the Test Configuration button located in the upper right corner as shown in the image below. Test Configuration When a test login is performed on the opened page with the LDAP user whose uid value is member2 as specified in the example image above and their password, it will return a Success response. Test with your user information in your LDAP application. After seeing the successful response, save the information by clicking the Save button.

​
3) Authorizing LDAP Users or Group Members in Project

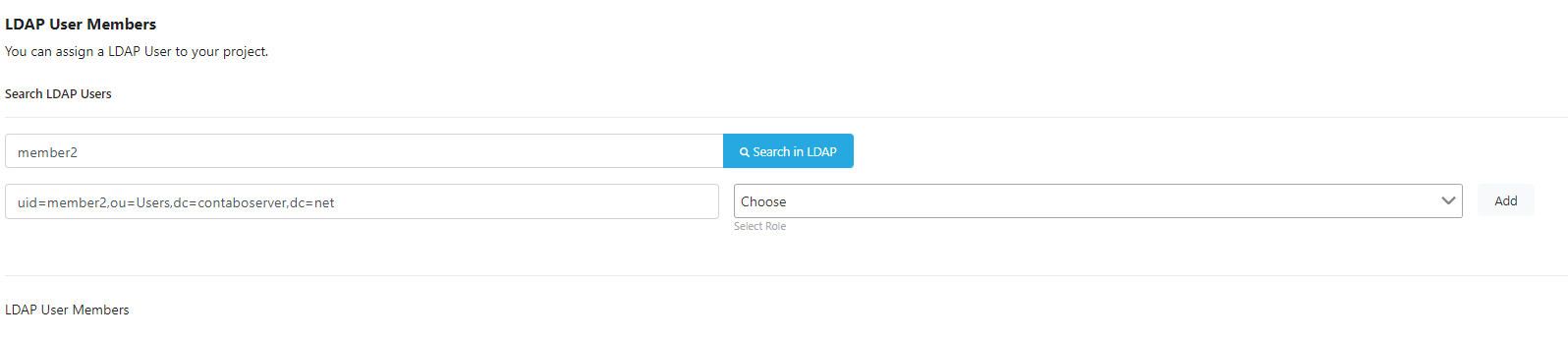

This section explains authorization operations for LDAP users and groups on a project basis. Select a project from the area where your projects are located as shown in the image below. Project Selection After selecting a project, to give user permission to your project: Open the Project Settings → Members page. Write your LDAP user in the LDAP User Members field as shown in the image below and click the Search in LDAP button. LDAP User Members Your LDAP user will appear on the screen as shown in the image below. You can select a permission in the Choose field and add it with Add. Add User Permission You can add permissions for group members in the area shown in the image below. Group Members Permissions After completing the authorization operations, you can complete the save operation by clicking the Save Changes button located in the upper right corner of the page. After this stage, the relevant users or groups will have the permissions you specified in your project.
