Grafana Installation and Prometheus Integration as Data Source

​
1-) Grafana Installation

​
Persistent Storage Configuration

Since Grafana’s data will be stored on a node in the Kubernetes cluster, PersistentVolume (PV) and PersistentVolumeClaim (PVC) definitions must be made. This configuration ensures that Grafana preserves its data in case of shutdown or restart.
apiVersion: v1
kind: PersistentVolume
metadata:
  name: grafana-pv
  namespace: monitoring
spec:
  capacity:
    storage: 1Gi
  accessModes:
    - ReadWriteOnce
  hostPath:
    path: /mnt/data/grafana
  persistentVolumeReclaimPolicy: Retain
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: grafana-pvc
  namespace: monitoring
spec:
  accessModes:
    - ReadWriteOnce
  resources:
    requests:
      storage: 1Gi
The PersistentVolume (PV) and PersistentVolumeClaim (PVC) configuration above ensures that Grafana stores its data on a specific node. However, the hostPath used here is dependent on the local file system of the specific node where Grafana runs.Therefore:
  • If Grafana pods are moved to a different node, they will lose their data unless the same hostPath directory exists on the new node.
  • To guarantee that pods always run on the same node, pods must be pinned to specific nodes using nodeAffinity or nodeSelector.
Alternatively, NFS, Ceph, Longhorn or a cloud-based storage solution can be used to store data in a node-independent manner.

​
Grafana Secret Configuration

// Password and password for the admin user who will access the Grafana interface are determined.
GF_SECURITY_ADMIN_USER=admin
GF_SECURITY_ADMIN_PASSWORD=<YOUR_GRAFANA_PASSWORD>
echo -n ${GF_SECURITY_ADMIN_USER} | base64 //We will put the output of this in place of the <ENCODED_GF_SECURITY_ADMIN_USER> variable in the next step
echo -n ${GF_SECURITY_ADMIN_PASSWORD} | base64 //We will put the output of this in place of the <ENCODED_GF_SECURITY_ADMIN_PASSWORD> variable in the next step
The username and password to be used in the Grafana interface are stored with the secret given below.
apiVersion: v1
kind: Secret
metadata:
  name: grafana-secrets
  namespace: monitoring
type: Opaque
data:
  GF_SECURITY_ADMIN_USER: <ENCODED_GF_SECURITY_ADMIN_USER>
  GF_SECURITY_ADMIN_PASSWORD: <ENCODED_GF_SECURITY_ADMIN_PASSWORD>

​
Grafana Deployment Configuration

Load the Grafana Deployment YAML file below into your Kubernetes Cluster by modifying it to suit your systems.
apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    app: grafana
  name: grafana
  namespace: monitoring
spec:
  replicas: 1
  selector:
    matchLabels:
      app: grafana
  template:
    metadata:
      labels:
        app: grafana
    spec:
      affinity:
        nodeAffinity:
          requiredDuringSchedulingIgnoredDuringExecution:
            nodeSelectorTerms:
              - matchExpressions:
                  - key: kubernetes.io/hostname
                    operator: In
                    values:
                      - <NODE_HOSTNAME>
      initContainers:
        - name: init-permissions
          image: busybox
          command: ["sh", "-c", "chown -R 472:472 /var/lib/grafana"]
          volumeMounts:
            - mountPath: /var/lib/grafana
              name: grafana-storage
      containers:
        - name: grafana
          image: grafana/grafana:11.6.1
          imagePullPolicy: IfNotPresent
          ports:
            - containerPort: 3000
              name: http-grafana
              protocol: TCP
          readinessProbe:
            httpGet:
              path: /api/health
              port: 3000
              scheme: HTTP
            initialDelaySeconds: 10
            periodSeconds: 30
            successThreshold: 1
            timeoutSeconds: 5
          livenessProbe:
            httpGet:
              path: /api/health
              port: 3000
              scheme: HTTP
            initialDelaySeconds: 30
            periodSeconds: 10
            successThreshold: 1
            timeoutSeconds: 5
          resources:
            requests:
              cpu: 256m
              memory: 256Mi
          envFrom:
            - secretRef:
                name: grafana-secrets
          volumeMounts:
            - mountPath: /var/lib/grafana
              name: grafana-storage
      volumes:
        - name: grafana-storage
          persistentVolumeClaim:
            claimName: grafana-pvc

​
Kubernetes Service for Grafana is created.

apiVersion: v1
kind: Service
metadata:
  name: grafana
  namespace: monitoring
  labels:
    app: grafana
spec:
  ports:
    - name: http
      port: 3000
      nodePort: 32181
  selector:
    app: grafana
  type: NodePort
When Grafana is deployed on Kubernetes, it creates a Kubernetes service named grafana and of type NodePort. This service is necessary for accessing Grafana from outside Kubernetes. However, you can adapt this service according to the structure you use for Ingress or connection method in your organization.

​
2) Setting Prometheus as Data Source on Grafana

  1. Log in to Grafana

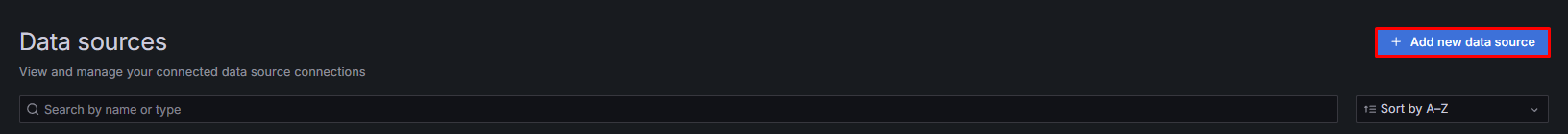

  2. Click the Data Source tab from the left menu and select Add new data source option.
Data Source Seçimi

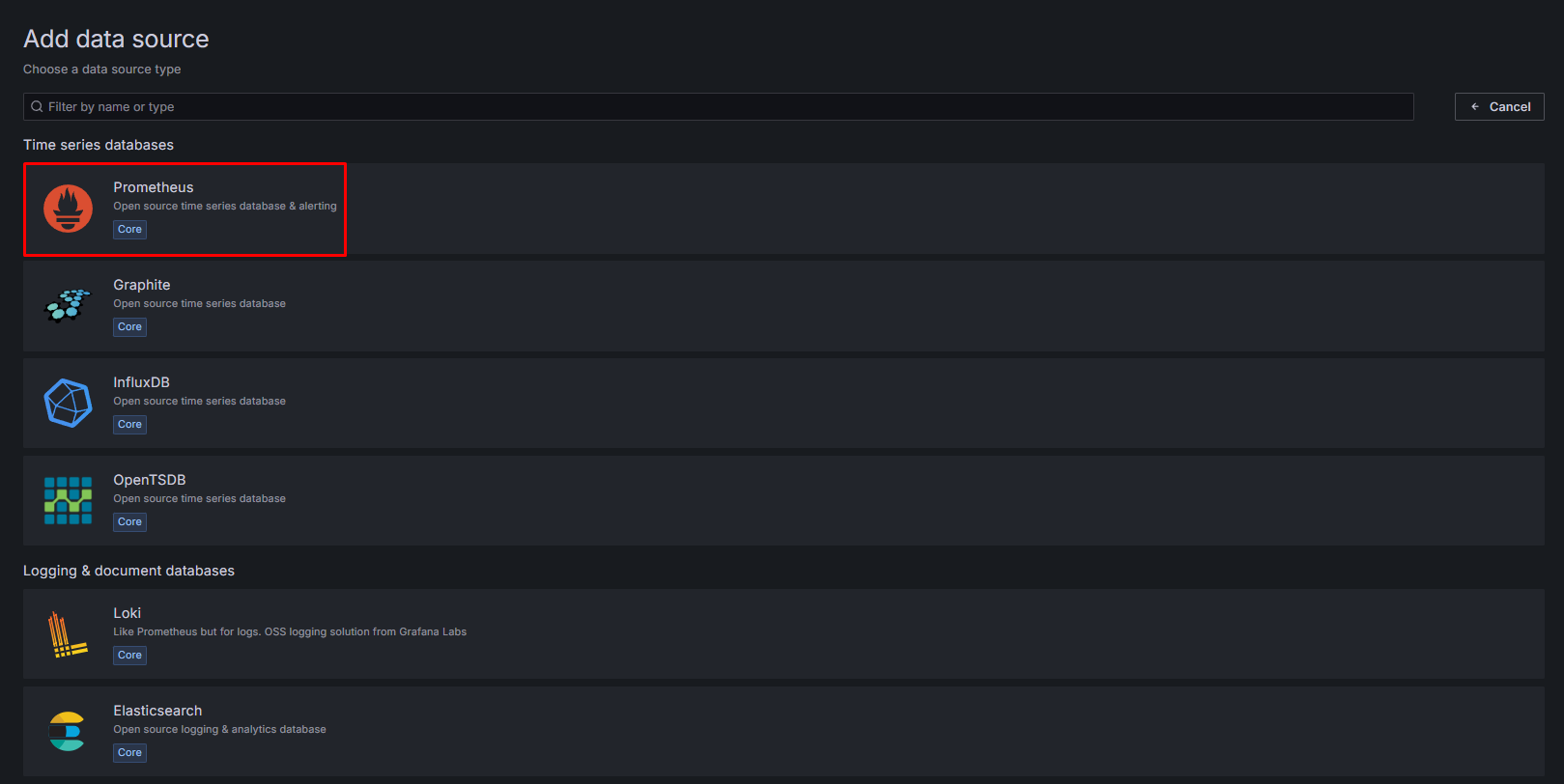

  1. Prometheus is selected as the data source. 4. Prometheus Connection url and other necessary settings are entered and saved.
Data Source Olarak Prometheus Seçimi

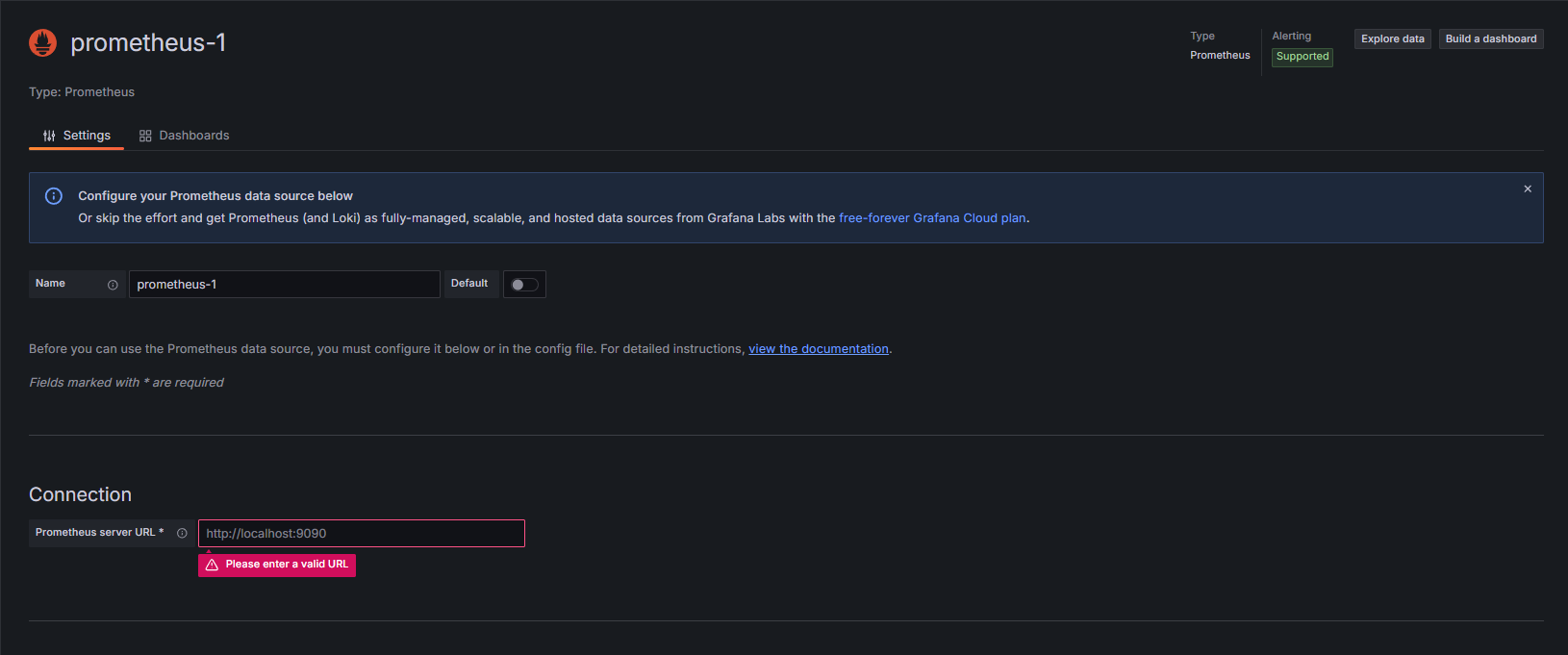

  1. The Prometheus Connection URL and other necessary settings are entered and saved.
Prometheus Connection URL Ayarlanması

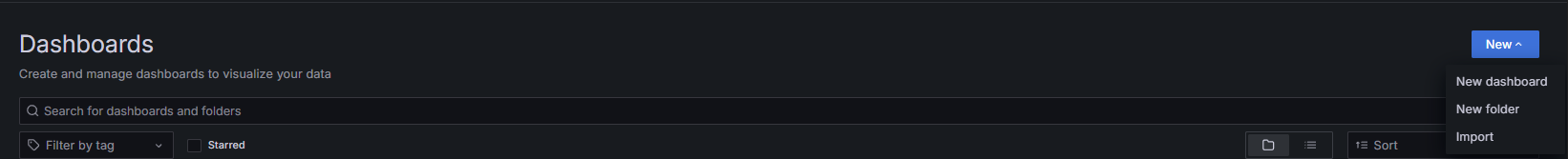

  1. Click the Dashboard tab from the left menu and select the new dashboard option.
New Dashboard Oluşturma

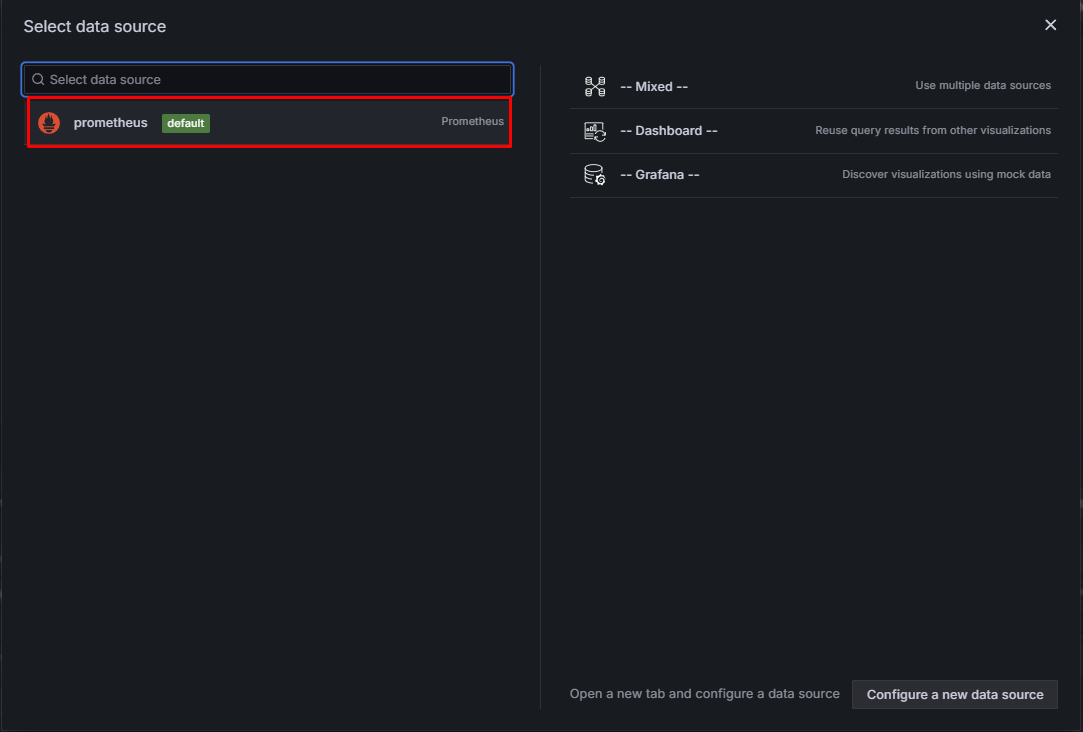

  1. A new dashboard is created and prometheus is selected as the data source.
Data Source Seçimi
