DB-2-API: Select Usage

To get more information about creating DB-2-API, click here.

1. Creating DB-2-API

An API Proxy that manages employee records is desired to be created.

The name and description fields of DB-2-API are filled and the Save and Next button is clicked.

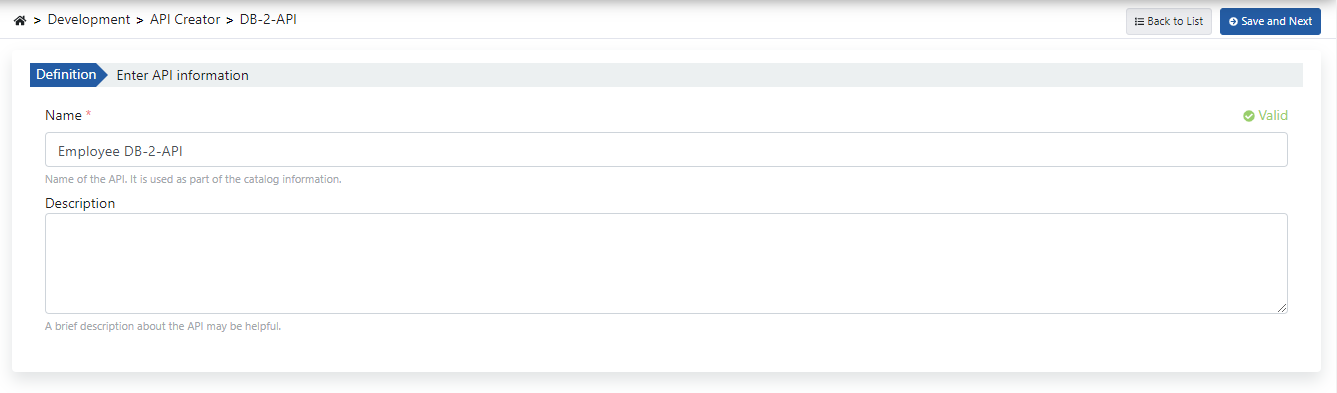

Visual containing DB-2-API settings is provided below:

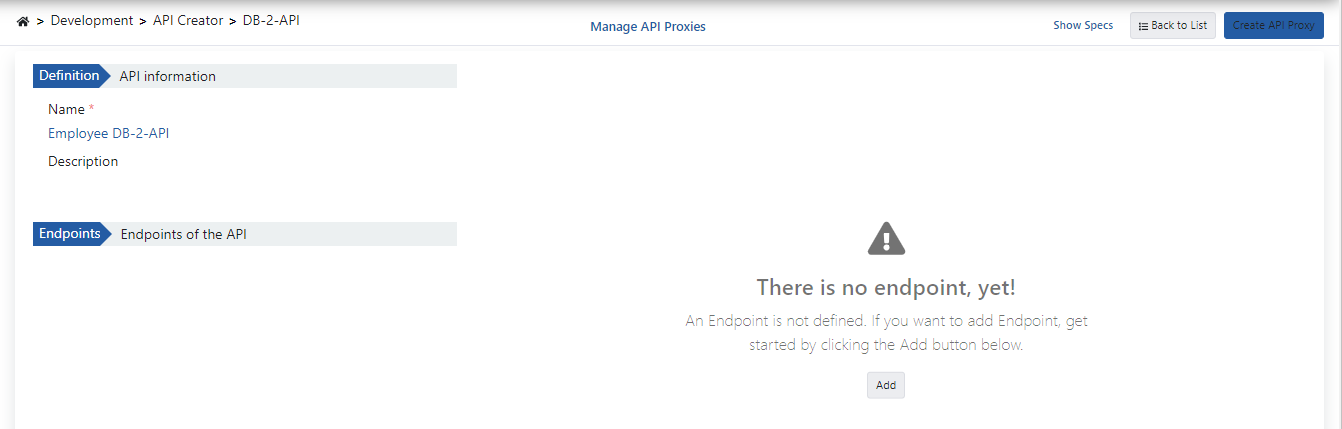

When DB-2-API is created, API and endpoint information is on the left panel, and definition information of the selected method is on the right side.

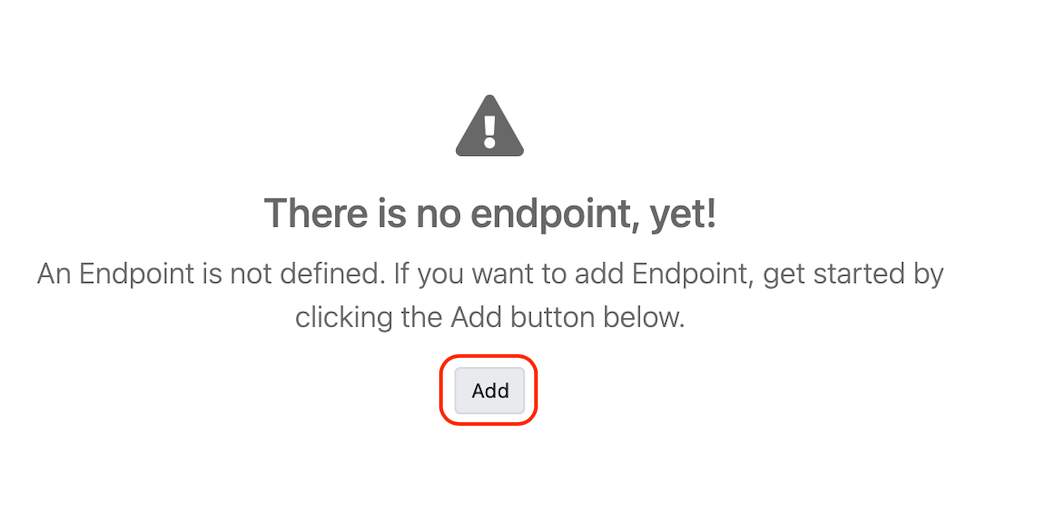

Click the Add button to open the method/endpoint creation panel.

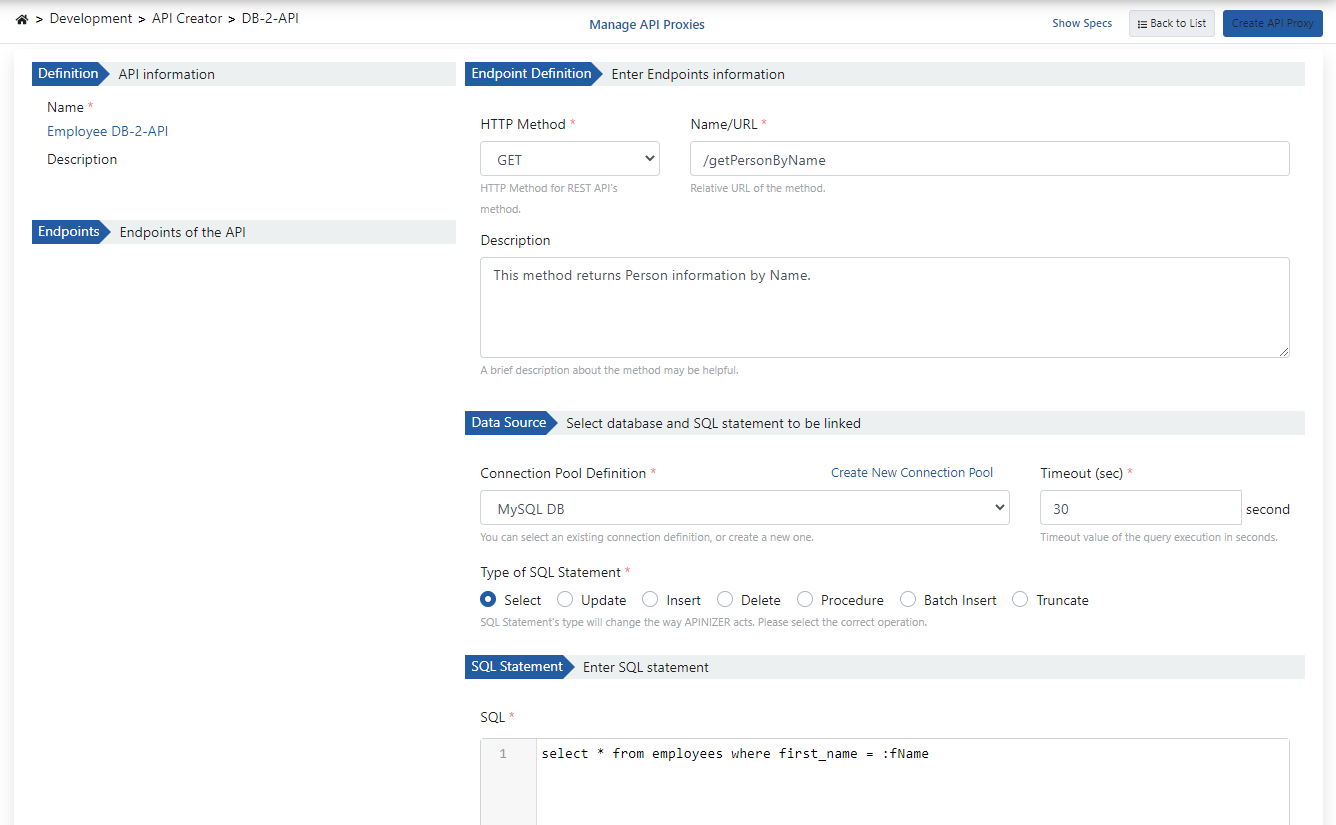

Visual containing method creation settings is provided below:

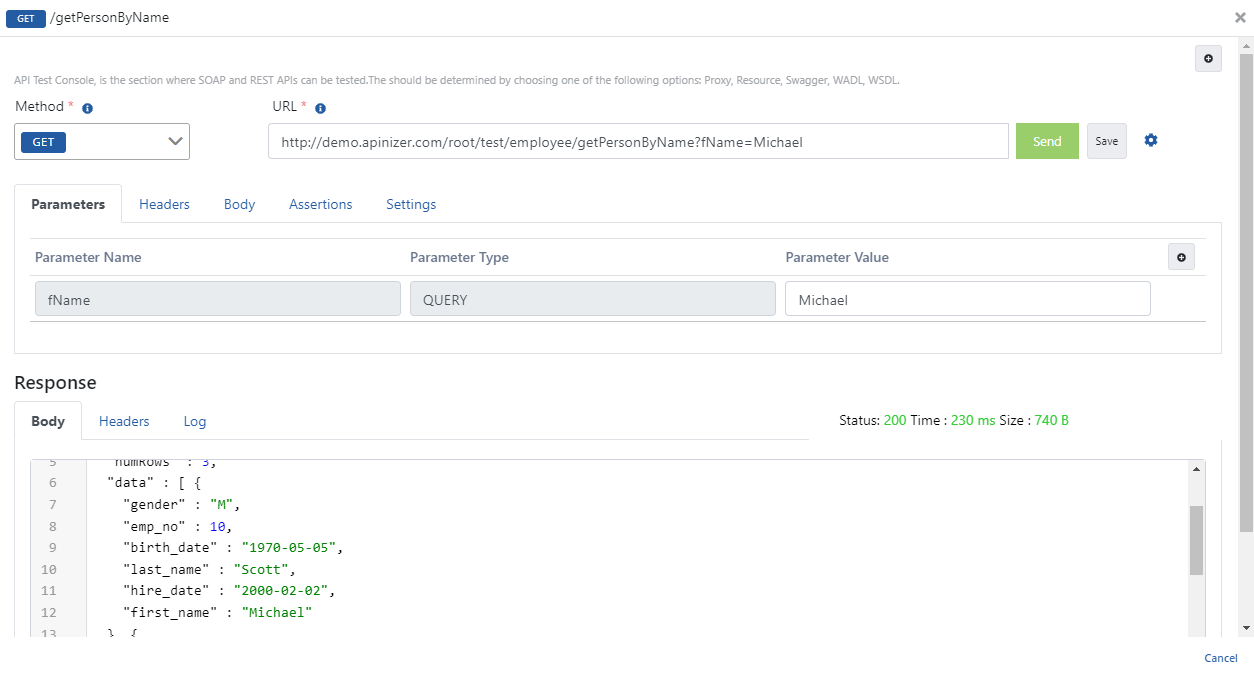

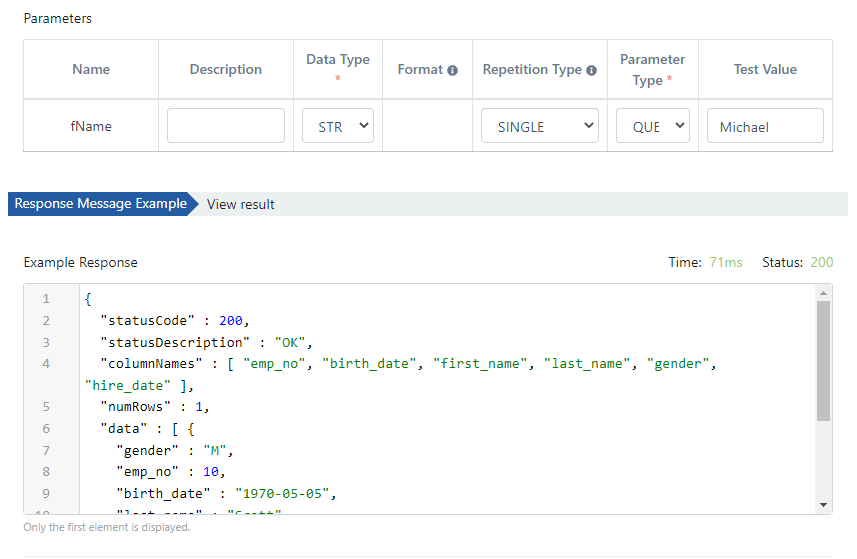

Visual containing the message returned as test result is provided below:

Click the Show Specs link to access the API definition files belonging to Employee Db-2-API.

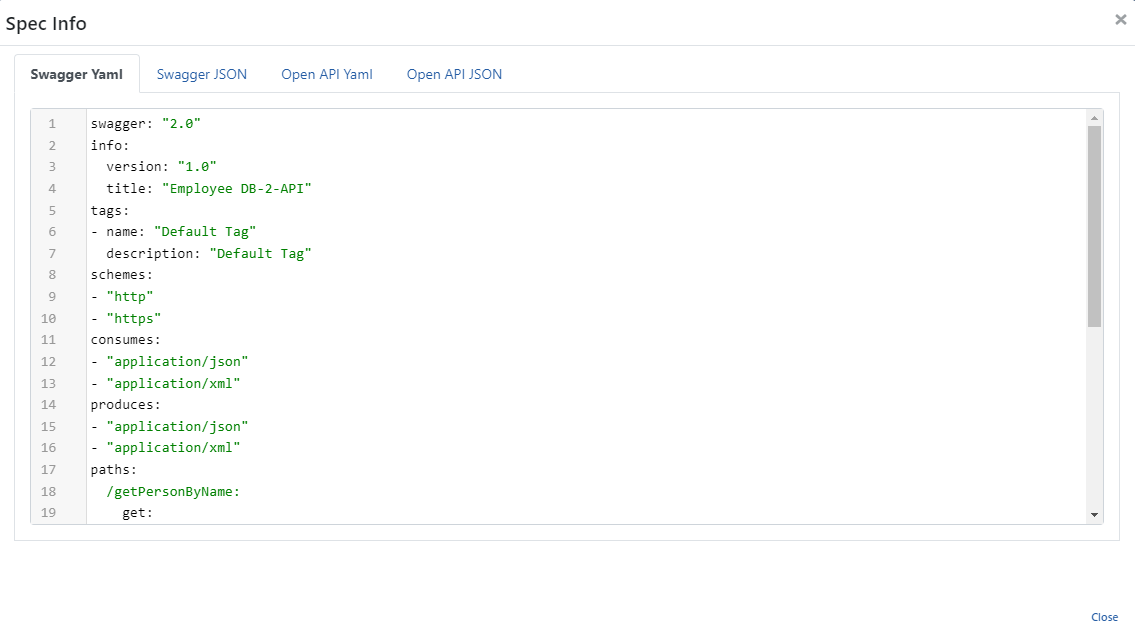

Visual containing Spec Information dialog is provided below:

An API Proxy can be created instantly by clicking the Create API Proxy button from the DB-2-API screen.

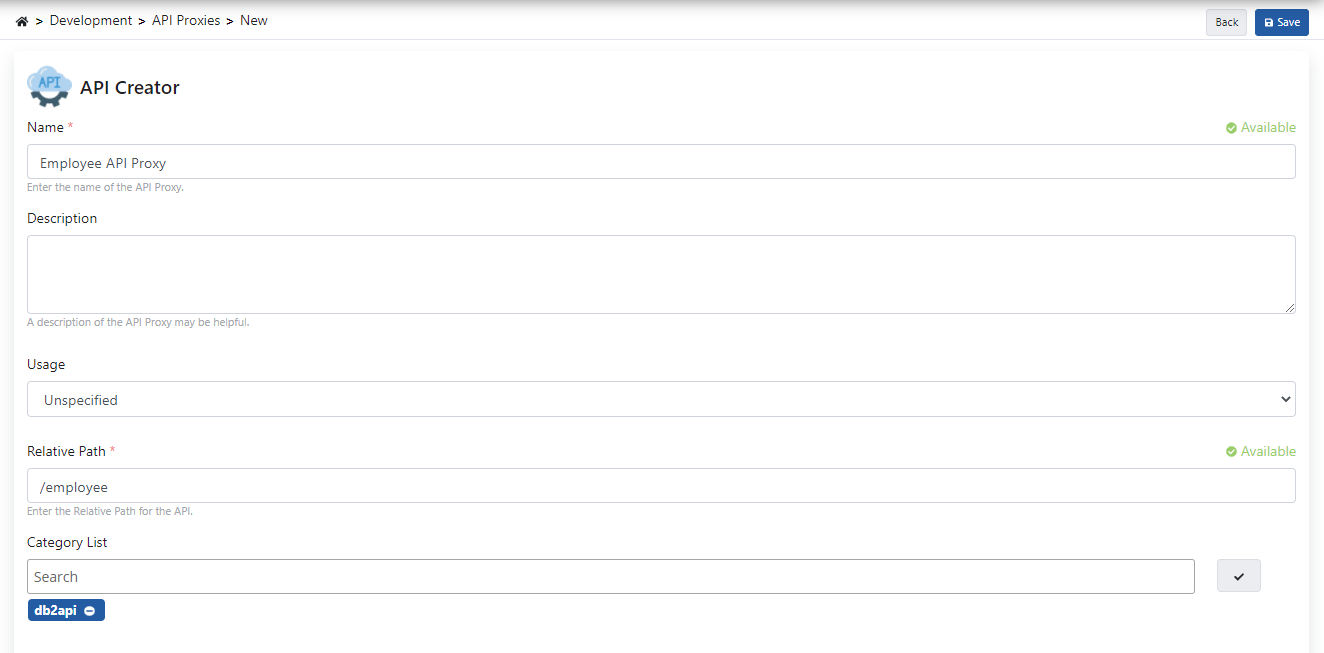

When creating the API Proxy, fill in the required fields shown in the visual below and click the Save button.

Employee API Proxy can be quickly loaded onto the defined environment and opened for client consumption.

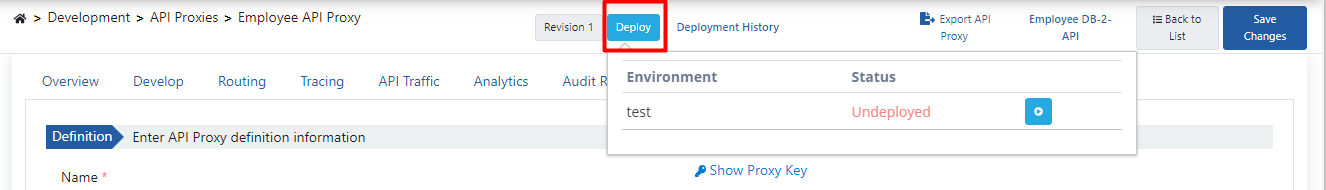

This operation can be managed through the dialog opened by clicking the Deploy button on the API Proxy screen.

When a request is sent to the "getPersonByName" method with the relevant parameter, the following response is returned.
