Example Dashboards on Grafana for Apinizer Gateway

Info

For Grafana Setup and Prometheus Integration as a Data Source, you can refer to our related documentation.

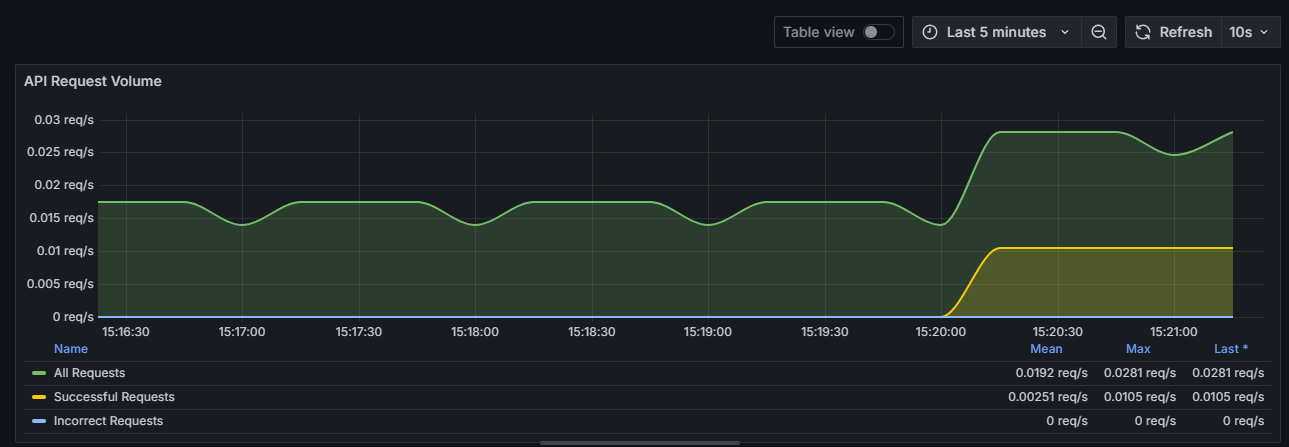

Panel 1: Total API Request Volume by Request Type

PromQL Queries

• A (Total Requests): sum(rate(apinizer_api_traffic_total_count_total[5m]))
• B (Successful Requests): sum(rate(apinizer_api_traffic_success_count_total[5m]))
• C (Failed Requests): sum(rate(apinizer_api_traffic_error_count_total[5m]))

Visualization: Timeseries

Panel Settings:

• Use different colors for each query (e.g., Total=blue, Successful=green, Failed=red)
• Enable legend
• Use "req/s" as Y-axis unit

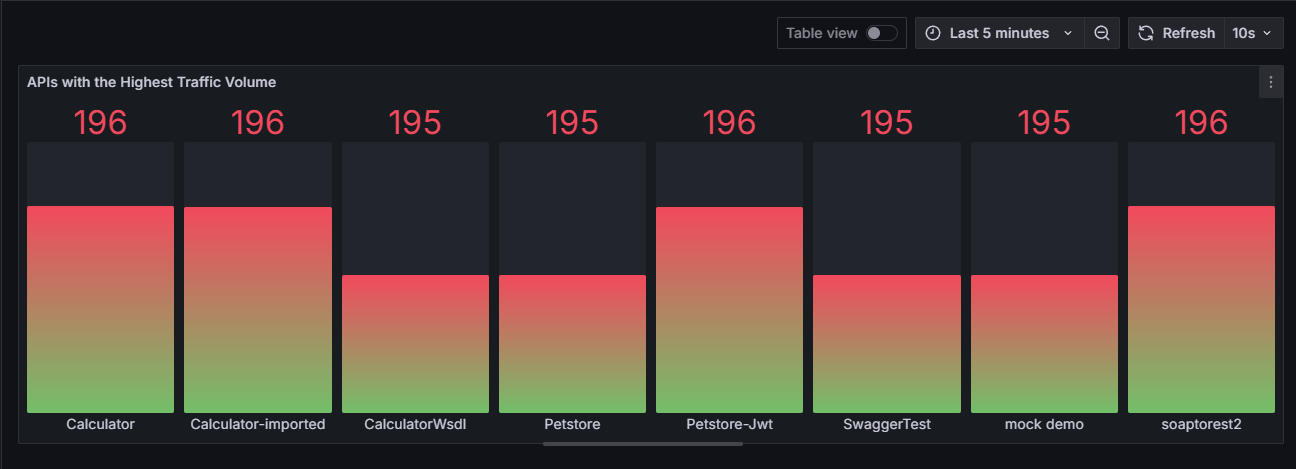

Panel 2: APIs with Highest Traffic Volume

Shows the top 5 APIs with the highest traffic volume in the last 100 minutes.

PromQL Queries

• A (Top 5 APIs): topk(5, sum by (api_name) (increase(apinizer_api_traffic_total_count_tagged_total[100m])))

Visualization: Bar gauge or Bar chart

Panel Settings:

• Direction: Horizontal
• Sorting: High to low
• Enable legend and show API names

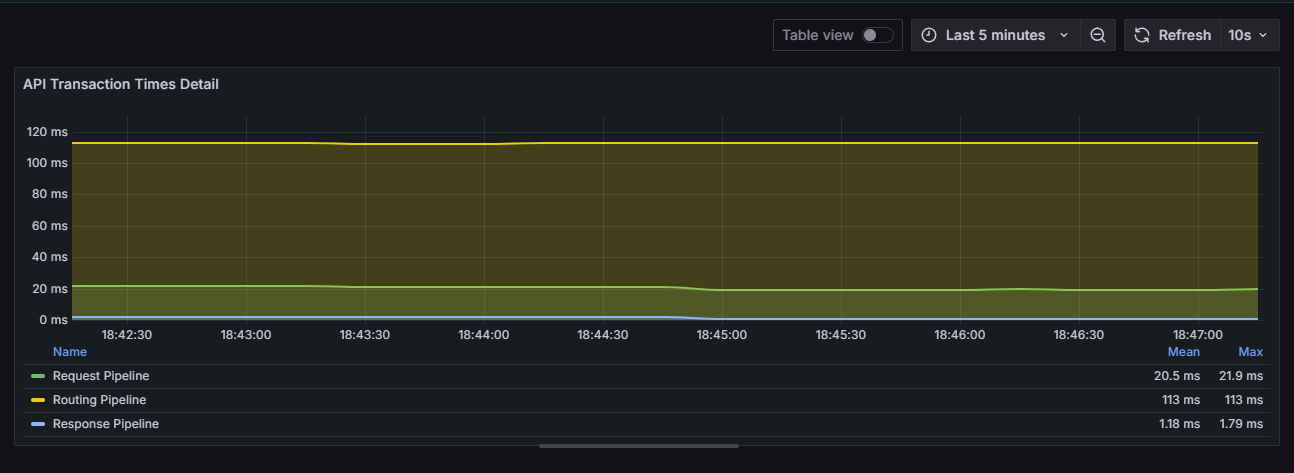

Panel 3: API Processing Times Detail

PromQL Queries

• A (Request Pipeline Duration): sum(rate(apinizer_api_traffic_request_pipeline_time_seconds_sum[5m])) / sum(rate(apinizer_api_traffic_request_pipeline_time_seconds_count[5m])) * 1000
• B (Routing Duration): sum(rate(apinizer_api_traffic_routing_time_seconds_sum[5m])) / sum(rate(apinizer_api_traffic_routing_time_seconds_count[5m])) * 1000
• C (Response Pipeline Duration): sum(rate(apinizer_api_traffic_response_pipeline_time_seconds_sum[5m])) / sum(rate(apinizer_api_traffic_response_pipeline_time_seconds_count[5m])) * 1000

Visualization: Timeseries

Panel Settings:

• Use "ms" (milliseconds) as Y-axis unit
• Use different colors and styles for each query
• Enable legend

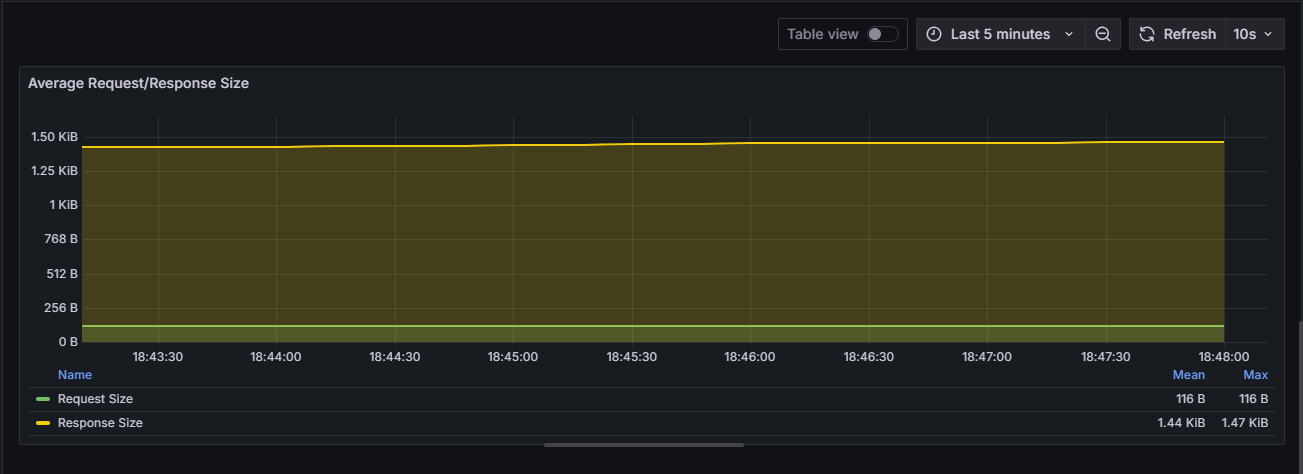

Panel 4: Average Request / Response Size

PromQL Queries

• A (Average Request Size): sum(rate(apinizer_api_traffic_request_size_bytes_sum[5m])) / sum(rate(apinizer_api_traffic_request_size_bytes_count[5m]))
• B (Average Response Size): sum(rate(apinizer_api_traffic_response_size_bytes_sum[5m])) / sum(rate(apinizer_api_traffic_response_size_bytes_count[5m]))

Visualization: Timeseries

Panel Settings:

• Use "bytes" or "decbytes" as Y-axis unit
• Use different colors for each query
• Enable legend

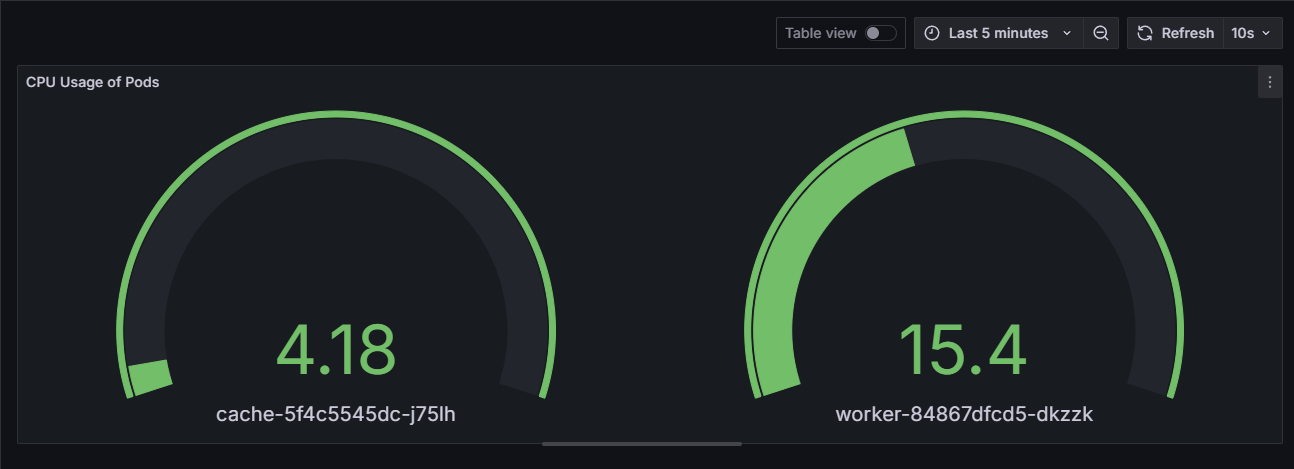

Panel 5: Pod CPU Usage

PromQL Queries

• A (Pod CPU Usage): sum(system_cpu_usage{pod=~".*"}) by (pod) * 100

Visualization: Gauge

Panel Settings:

• Set thresholds (e.g., Green: 0-70%, Yellow: 70-90%, Red: 90-100%)
• Min: 0, Max: 100
• Use "%" as Y-axis unit
• Show pod names in legend

Dashboard Creation Tips

Panel Layout

Organize panels in logical groups. API traffic metrics can be at the top, system metrics at the bottom.

Color Scheme

Use a consistent color scheme. Use green for successful operations, red for errors, yellow for warnings.

Time Range

Set the default time range for the dashboard. Usually the last 1 hour or last 24 hours is useful.

Refresh Interval

Set the automatic refresh time of the dashboard. 30 seconds is suitable for high-traffic systems, 1-5 minutes for low-traffic systems.

Note

These panel examples are sufficient to create a basic dashboard. You can add additional panels or customize existing panels according to your needs.
