Policy Management

​

Message Flow

The flow between the client and Backend API is shown with:

• An arrow symbolizing the request message going from the client to the Backend API,
• An arrow symbolizing the response message going from the Backend API to the client,
• Icons showing the policies applied to request or response messages and the order of application

This section will not go into the details of policies. For detailed information about policies, you can refer to the Policies page.

​

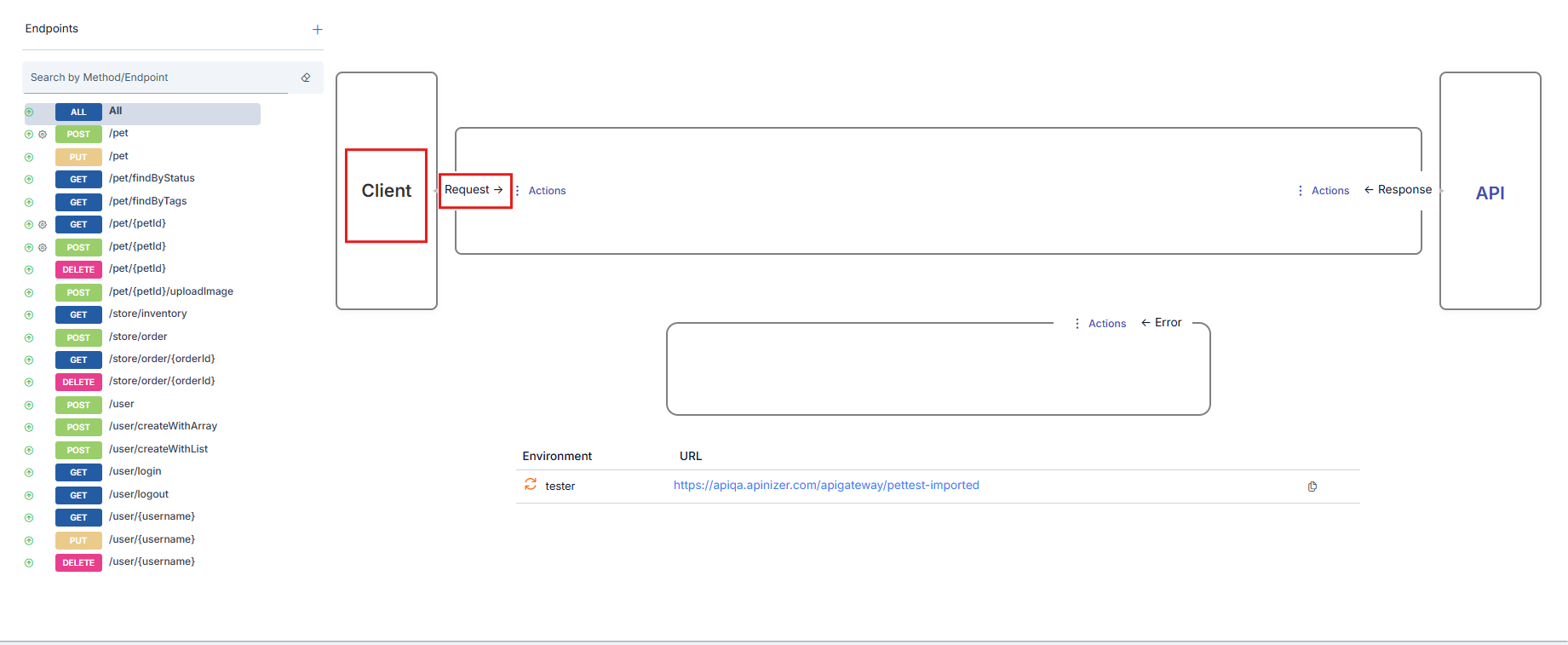

Client

Shown in the frame on the left side of the interface. It is the stakeholder that sends requests to the API Proxy. It starts the flow. The message coming from the client reaches the Backend API after policies are applied.

​

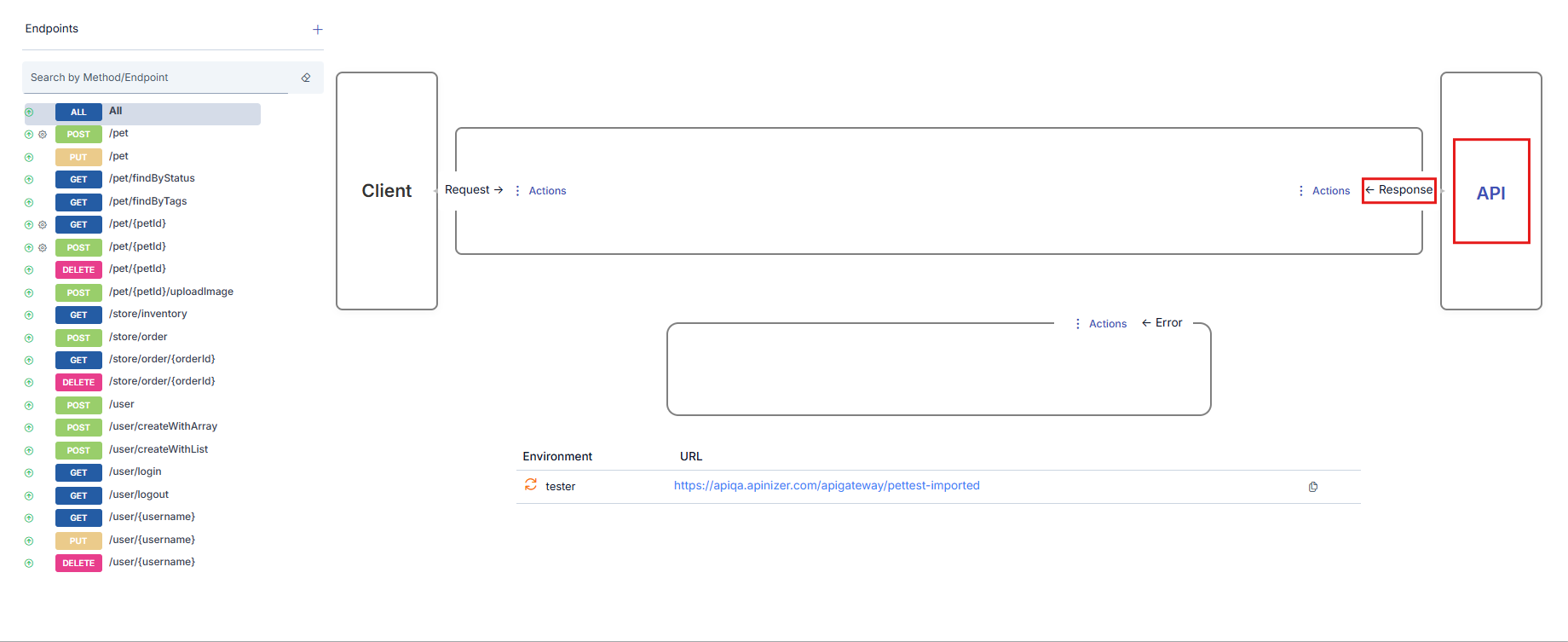

Backend API

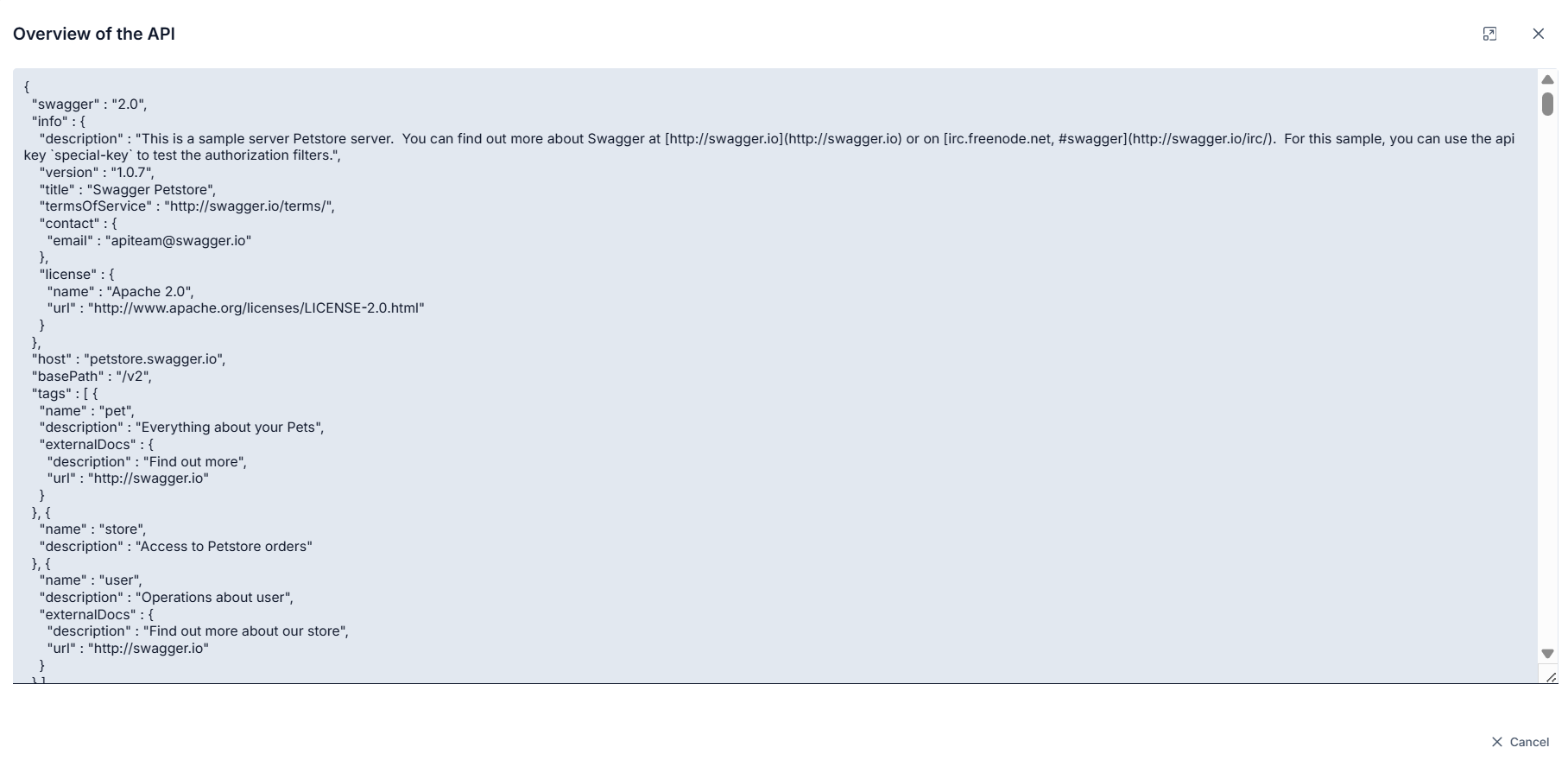

The original API that is closed to direct access from the client and hidden from the client, receives requests from the API Proxy and returns responses to the API Proxy. Shown with the frame on the right side of the interface. The Backend API’s response is sent to the client after policies are applied. When the API link in the Backend API box is clicked, the Backend API’s API Specification Document is displayed.

​

Policy Management

This section explains the management operations that can be performed on policies in the API Proxy’s development tab. For detailed information about the What is Policy? concept, you can refer to the core concepts page. To get detailed information about any policy, you can refer to the documentation related to that policy from the Policies section.

​

Policy Location and Execution Order

Policies can be added to 3 different points:

• API Proxy Group: A policy added to an API Proxy Group is executed only if the request came through the API Proxy Group.
• API Proxy: A policy added to an API Proxy is executed for all methods/endpoints of that API Proxy.
• Method/Endpoint: A policy added to a method/endpoint is executed only for that method/endpoint.

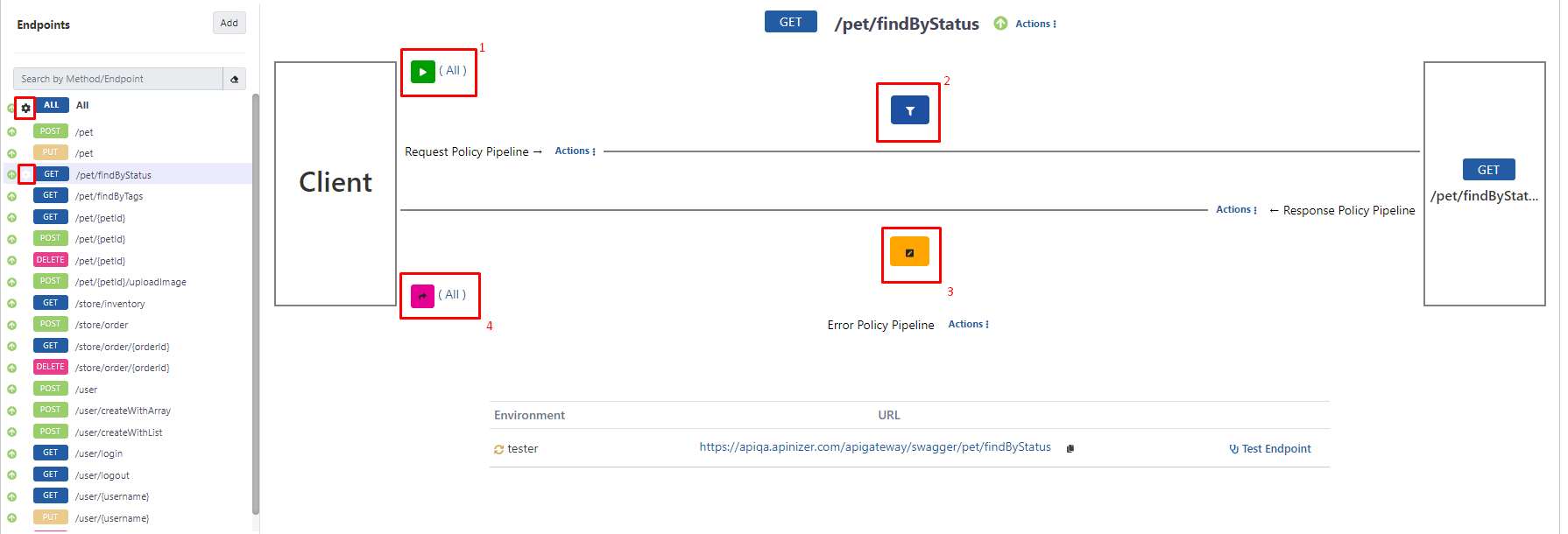

The visual below contains an example related to policies added to all 3 of these points. In the visual, it is seen that the API Proxy with the selected method/endpoint named GET - findByStatus has been added to an API Proxy Group named Proxy Group - 1. The marked areas are the places where policies are displayed depending on where they are added:

• In the area marked with frame number 1, policies added to be valid for all methods/endpoints of this API Proxy without selecting any method/endpoint, and to be applied to request messages, are seen. The text All expresses this.
• In the area marked with frame number 2, policies added to be valid for the selected method/endpoint and to be applied to request messages are seen.
• In the area marked with frame number 3, policies added to be valid for the selected method/endpoint and to be applied to response messages are seen.
• In the area marked with frame number 4, policies added to be valid for all methods/endpoints of this API Proxy without selecting any method/endpoint, and to be applied to response messages, are seen. The text All expresses this.

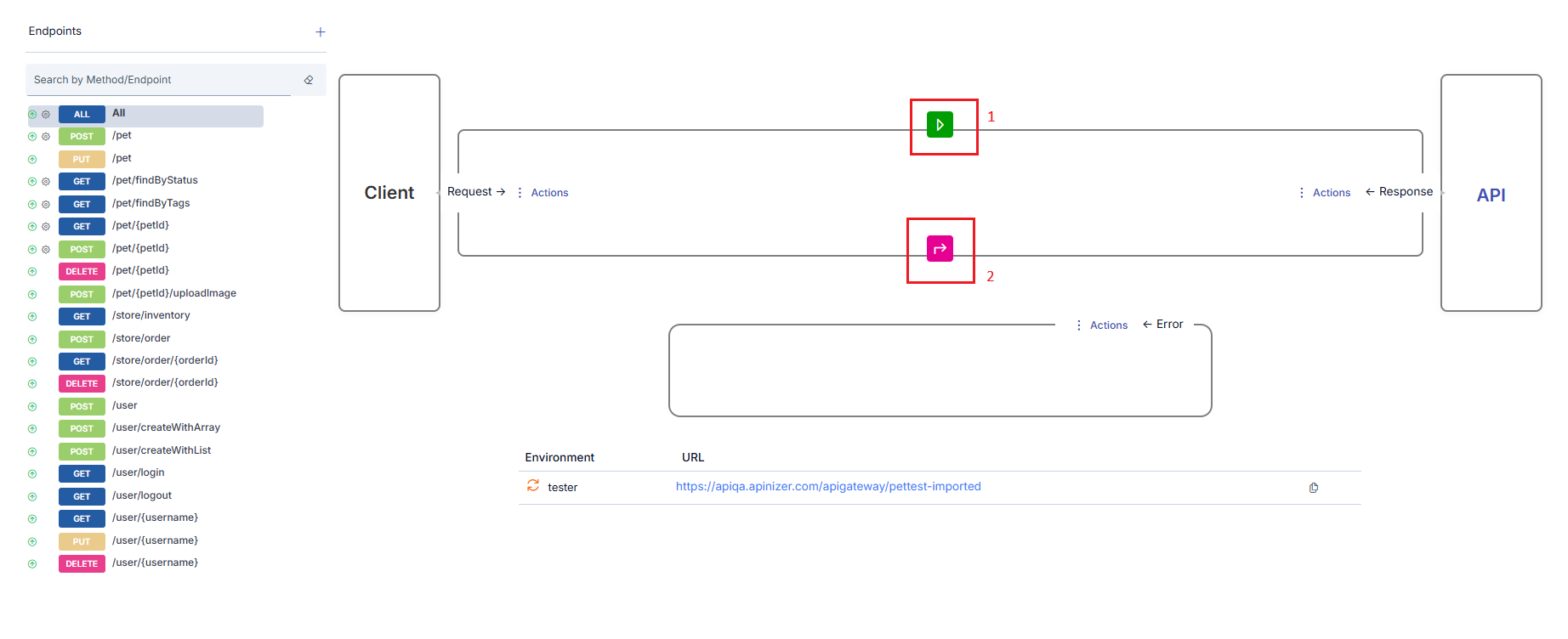

If any policy has been added for any method/endpoint of the API Proxy, a gear icon appears next to the method/endpoint. If no specific method/endpoint of the API Proxy is selected (or All is selected), 2 regions appear as shown in the visual below:

• In the area marked with frame number 1, policies added to be valid for all methods/endpoints of this API Proxy and to be applied to request messages are seen.
• In the area marked with frame number 2, policies added to be valid for all methods/endpoints of this API Proxy and to be applied to response messages are seen.

​

Policy Execution Order

Policies are executed in the order of message flow as follows:

• For request message: API Proxy Group → API Proxy → method/endpoint
• For response message: method/endpoint → API Proxy → API Proxy Group

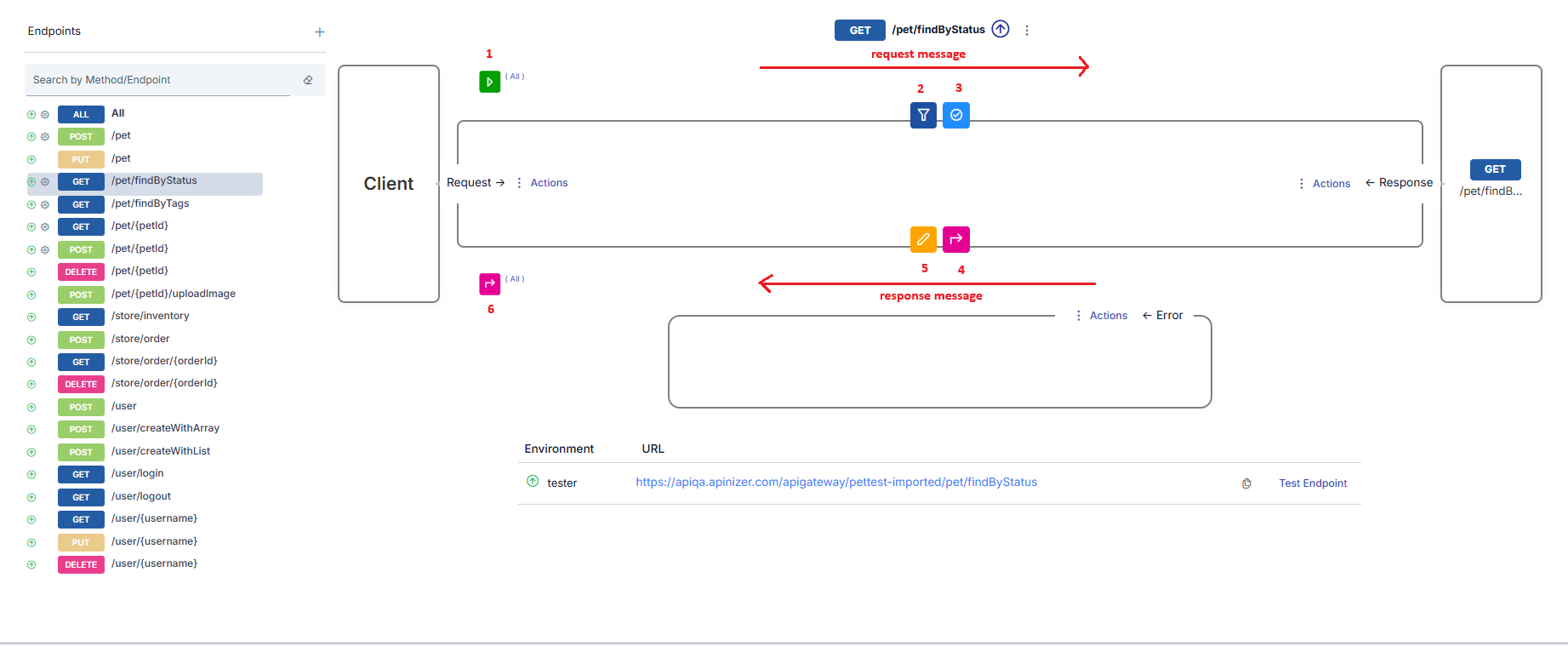

At each level, policies at that level are processed according to the ordering in the message flow direction. In the visual below, this situation is summarized, and the order in which policies are processed is shown with numbers.

​

Policy Execution Order in Error Cases

Policies to be executed in error cases are added with the “Add Error Policy” option. If an error occurs at any point in the flow, the normal flow is interrupted and first, if there is an error response template, it is applied to the error message. Then, policies added to the “Error Policies” line are executed from right to left in order.

​

Policy Management Operations

​

Adding Policy to Flow

To add a policy:

• The entity where the policy is desired to be added is selected. For example, for a policy desired to be applied to all methods/endpoints of the API Proxy, All is selected in the API Proxy’s method/endpoint field.

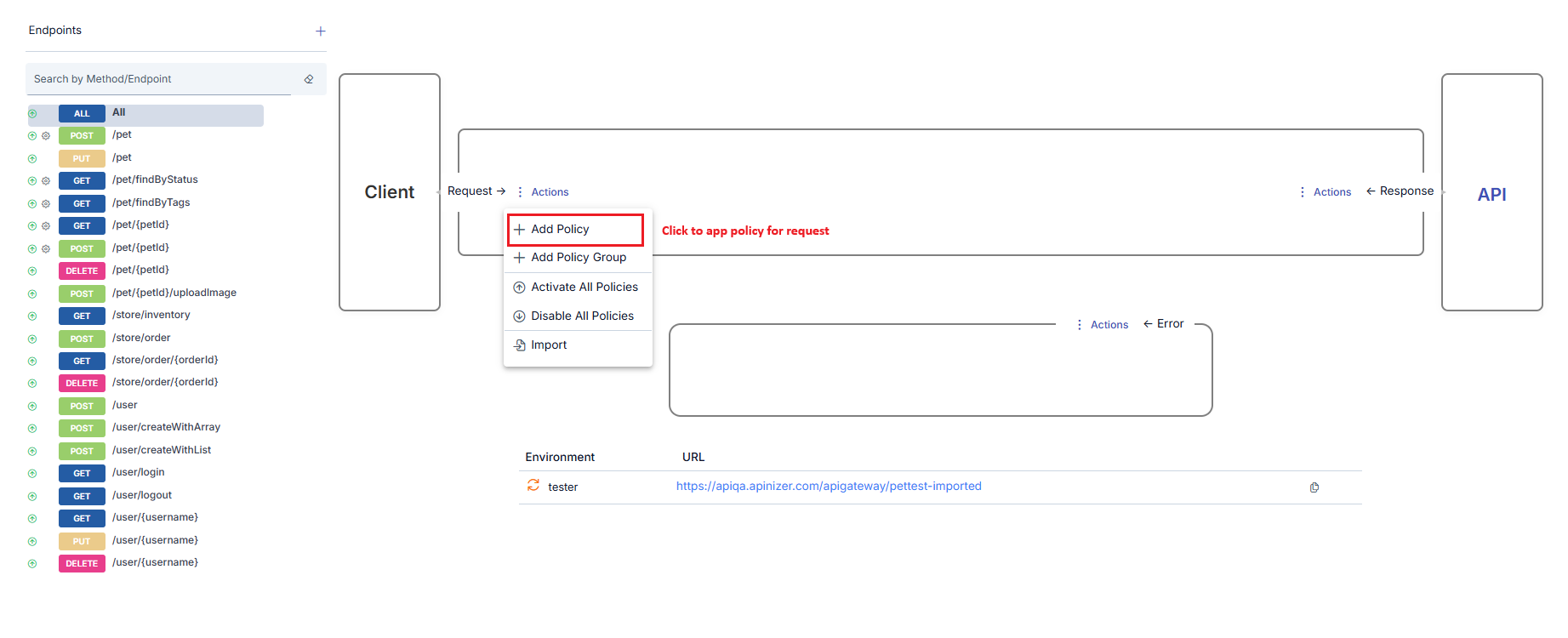

• The ➕ Add Policy icon in the appropriate area is clicked according to whether the policy will be added to the request message or response message.

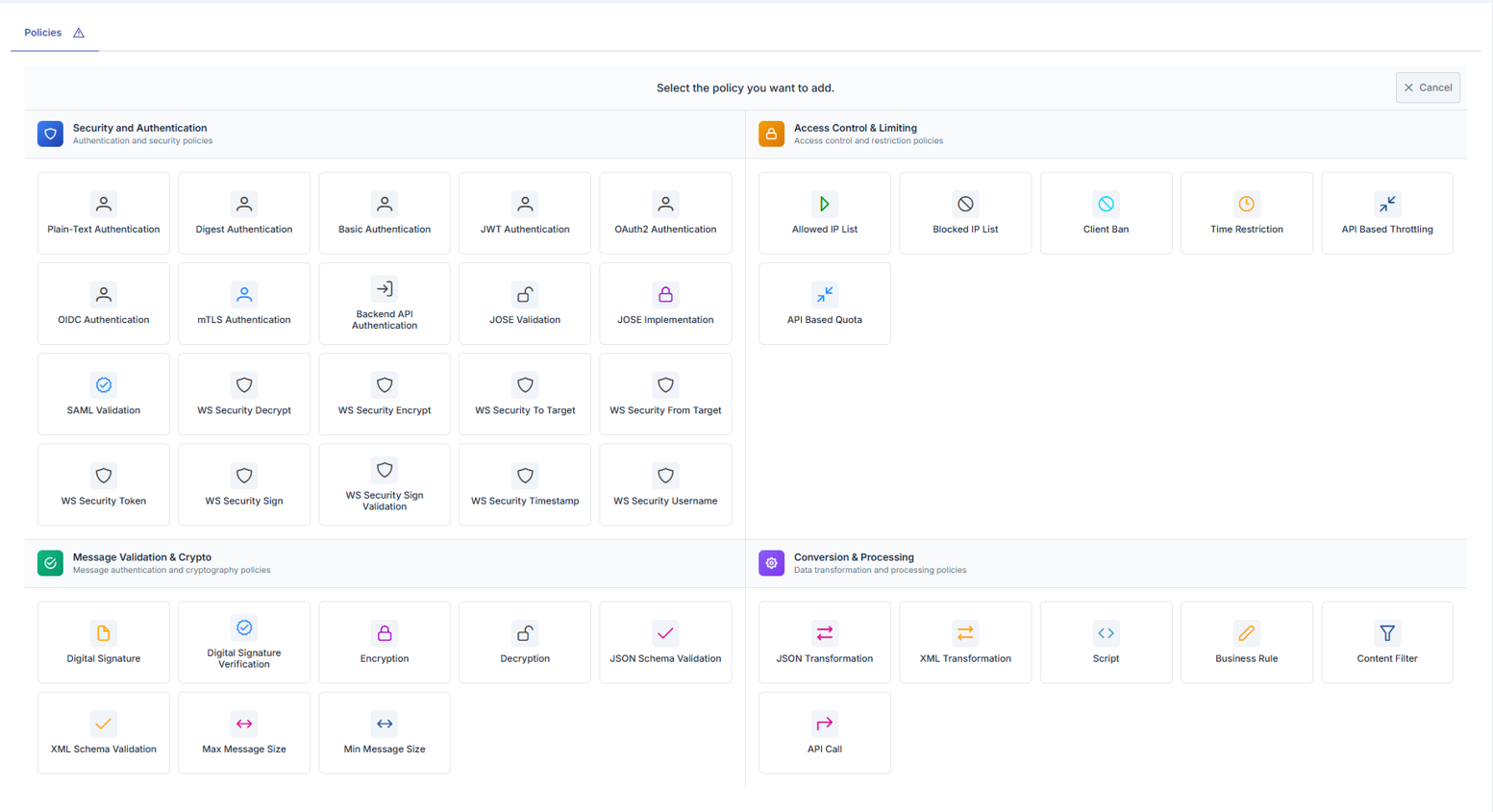

• The type of policy desired to be added is selected from the window that opens. The policy types shown in this window vary according to the active API Proxy’s type and which region the policy is desired to be added to.

• When the policy desired to be added is selected, a window opens where configuration information related to that policy can be entered. Policies can be added in different ways from this window:

1. To add an existing global policy: In the policy window, the Select From Global Policies link next to the policy type at the top is clicked. The appropriate policy is selected from the window that opens and the process is completed.
2. To create a local policy: A local policy is created with the data entered in the window that opens without any special operation.

​

Updating Policy in Flow

When the icon of an existing policy is clicked, a window opens where that policy’s information can be updated.

​

Activating/Deactivating Selected Policy

A policy can be temporarily disabled without being deleted from the method/endpoint or API Proxy where it is added. For this, the policy is opened for update and the Deactivate button at the top of the opened window is clicked.

​

Activating/Deactivating All Policies

In the method/endpoint section, the Disable All Policies link appears at the bottom of the middle section. When this link is clicked, if it is in the All option, all policies added to the API Proxy; if it is in any method, only all policies added within that method are disabled. Disabled policies can later be reactivated one by one from the policy update window or collectively by clicking the Activate All Policies link. When policies are disabled, the colors of the icons change to a gray appearance.

​

Removing Policy from Flow

When the mouse is hovered over the policy desired to be deleted, an icon appears that will delete the policy. The policy can be deleted by clicking this icon.

​
