Trace

Tracing enables you to monitor and analyze your API Proxy message processing flow in real-time. Trace operations are performed on an API Proxy basis and are activated separately for each API Proxy.

This module is particularly used for:

• Understanding how policies work
• Detecting performance issues
• Debugging
• Examining request/response flow
• Validating transformations

API Proxy-Based Trace

You can start a separate trace session for each API Proxy

Detailed Tracking

You can track each policy's execution step by step and view log records

Performance Analysis

You can analyze timing metrics and detect bottlenecks

Debugging

You can easily detect errors and perform root cause analysis

bilgi

Trace runs per API Proxy. Clicking a log row opens the trace detail drawer on the right, with timing breakdown, the Client–Gateway–API map, and before/after policy panels. For the full walkthrough, see Step-by-Step Tracing.

Starting Trace Mode

Trace mode is started separately for each API Proxy. You can activate trace mode from the API Proxy's own page.

Prerequisites

Before starting trace mode:

API Proxy Must Be Loaded

The API Proxy you want to track must be loaded into at least one Environment

Go to API Proxy Page

Go to the detail page of the API Proxy you want to trace

Make Environment Selection

Select the Environment for which trace mode will be opened from the Environments where the API Proxy is loaded

Click Start Button

Activate trace mode by clicking the Start button

ipucu

With Custom Query from the filter field next to environment selection, you can specifically trace only desired data.

uyarı

When trace mode is activated:

• Log record content is expanded to allow detailed examination
• Log records are written to MongoDB configuration database
• Detailed log records are created for all executed policies
• This continues to be stored until the mode is stopped or automatically closed by the platform after 5 minutes

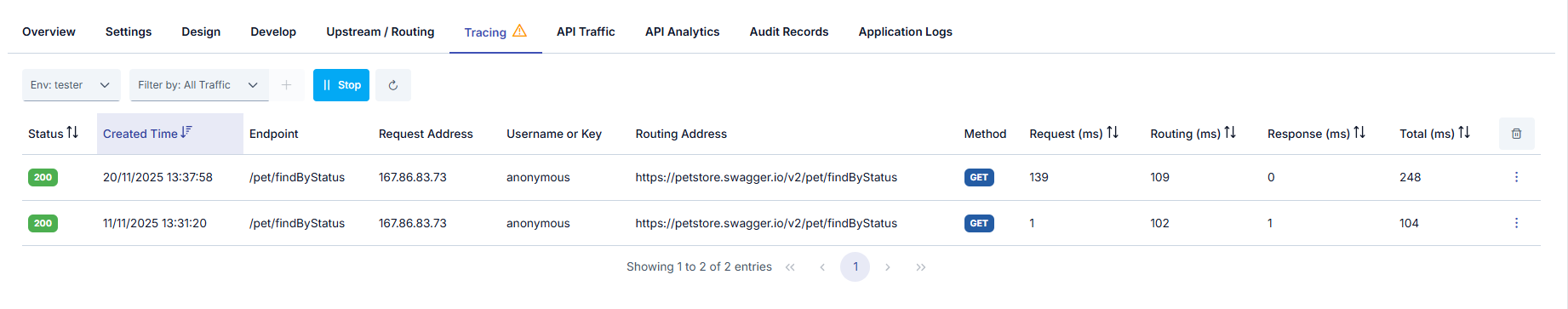

Trace Records

After trace mode is activated, requests coming to the API Proxy are automatically tracked and detailed records are created.

bilgi

Refresh Delete

Log records being displayed are not automatically updated. Use the Refresh Logs button to see new records.

Each log record shown in the table belongs to the request coming from the client to this API Proxy and the response message given to that request.

bilgi

Since the log record of API Call Policy is kept separately, double logs appear for the same request. The first is the before and after state of the message in the main flow, and the second is the request and response message coming out of the API Call.

Trace List

The following information is displayed for each record in the trace list:

Information	Description
Timestamp	Date and time when the request arrived
Method	HTTP method (GET, POST, PUT, DELETE, etc.)
Path / Endpoint	Request path and endpoint name
Status Code	Response status code (200, 404, 500, etc.)
Duration	Total processing time (ms)
Policies	Number of policies executed
Correlation ID	Request-specific correlation ID

not

When API Call Policy is used, double log records appear for the same request:

1. Before and after state of the message in the main flow
2. Request and response message coming out of the API Call

Trace Operations

The following operations can be performed for each trace record:

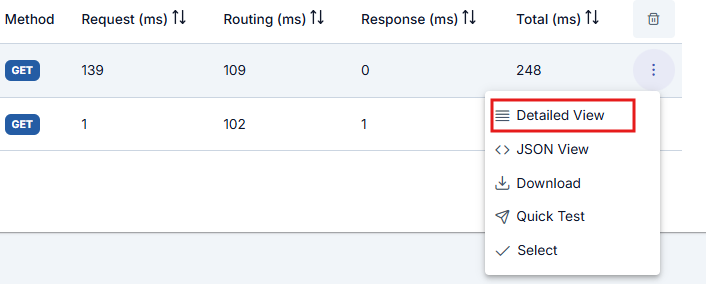

Detailed viewing

The first control at the end of the row for the request message to be examined opens a window that displays the log records of that message.

In the opened window, logs are divided into sections related to message flow. When the name of the section to be examined is clicked, log records related to that area are displayed. By default, the Overview section is open.

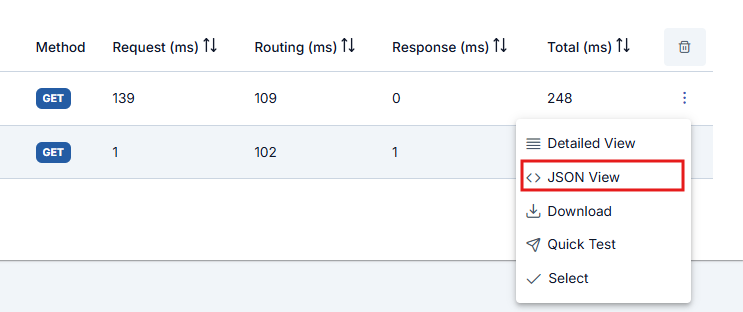

View in JSON format

The button next to the Detailed View button displays log records in JSON format.

bilgi

Key values in JSON view are written in readable format. For example:

• The "apiProxyId" value is stored as "api" in the log record
• For actual log format, you can refer to the API Traffic Log Record Data Structure page

Download

When Apinizer is in step-by-step tracking mode, it also creates detailed log records for all policies executed for the API Proxy. The download option provides the ability to download all log records created on a request basis collectively.

ipucu

If the data size of the log record is greater than 500KB, the Show Details and View in JSON Format options are disabled. In this case, the record must be downloaded for examination.

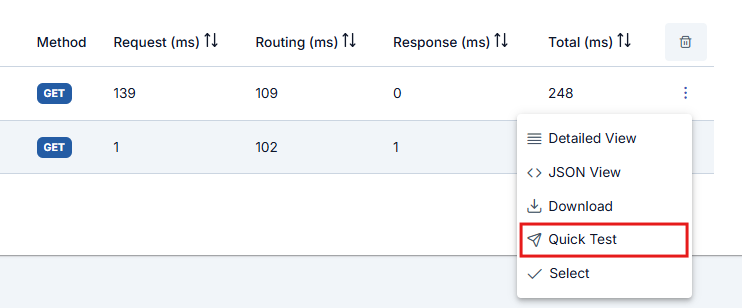

Quick Test

The Quick Test button on the relevant row opens the Test Console formatted so that the sent request can be immediately retested and sent.

uyarı

The Quick Test button must be enabled in general settings to appear.

Tracking Policy Flow

Click the Select button to view the detailed execution information Apinizer keeps for policies run on the API Proxy while step-by-step tracing is on.

When you click a table row or Select in the row menu, the trace detail drawer opens on the right. At the top you see timing breakdown and the Client → Gateway → API map; request-line (top row) and response-line (bottom row) policy nodes show execution order, including policies from an API Proxy Group when applicable.

Nodes show a green check for success, ! for error or block, and a faded appearance with an S badge for skipped policies. Use ‹ Back / Next › or click a node to move between steps. For the full walkthrough, see Step-by-Step Tracing.

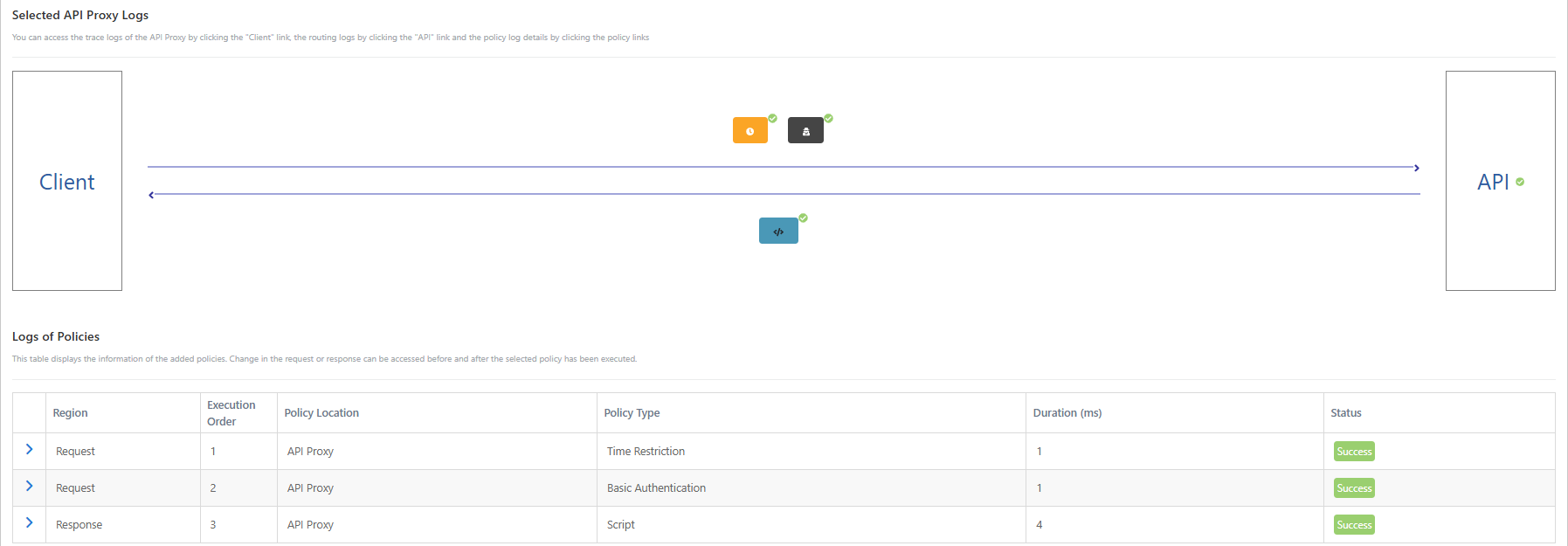

Successful Flow

Example when all steps succeed: timing bar, map, and Client step with request/response panels.

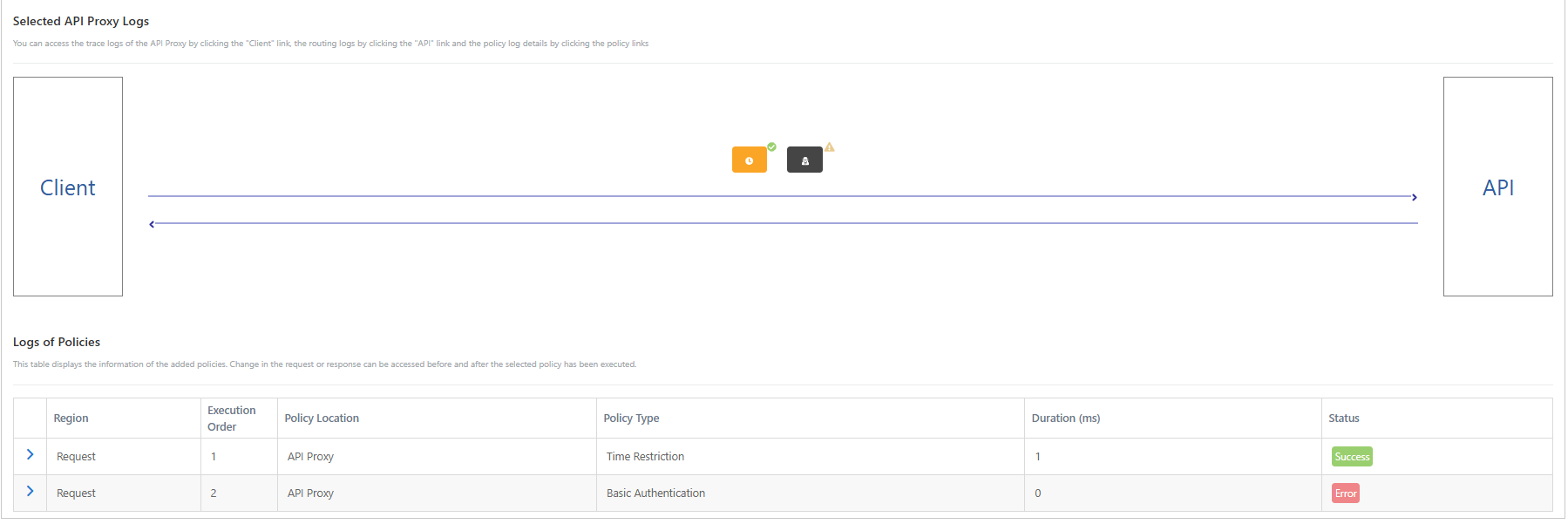

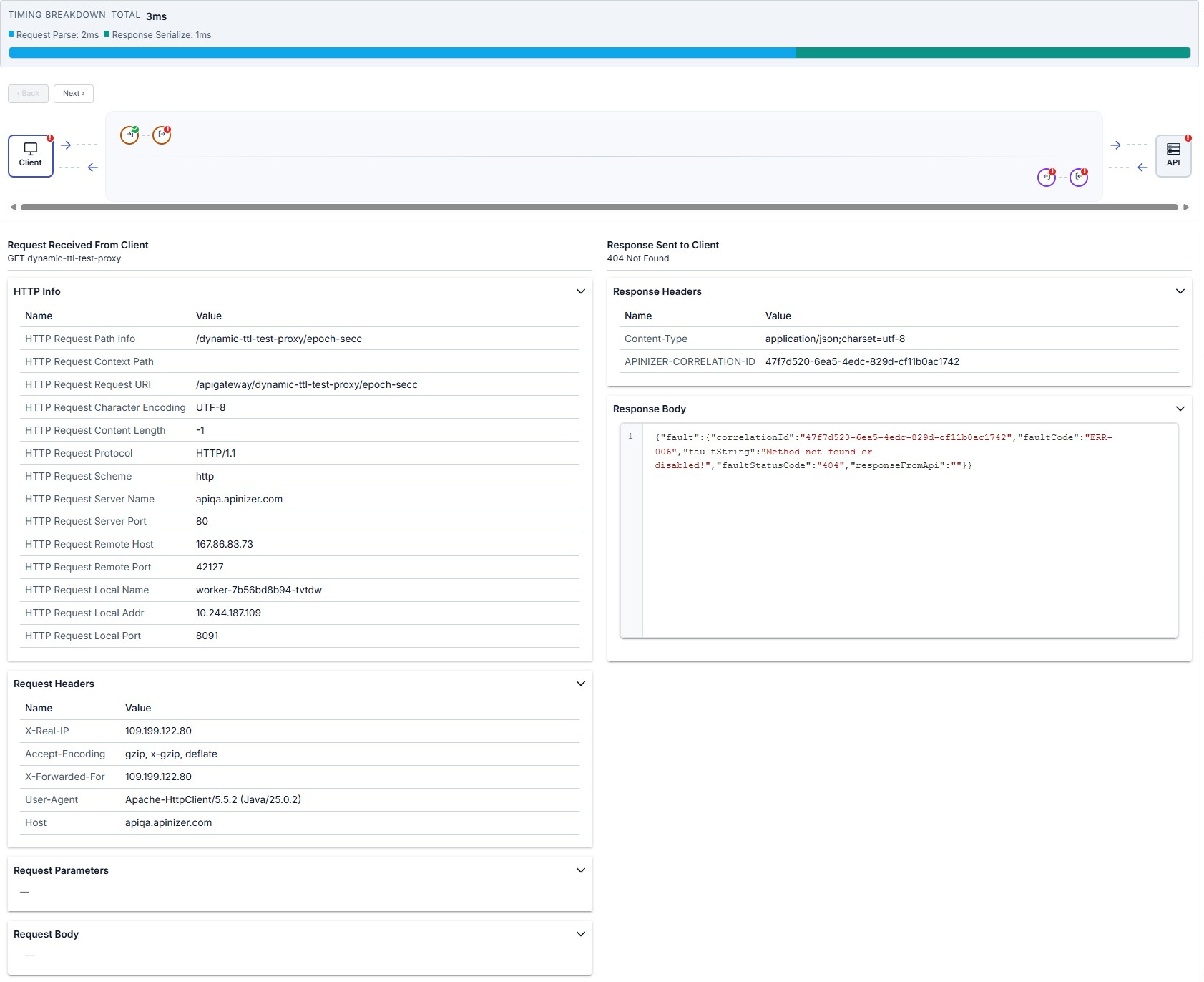

Failed Flow

On errors (for example policy rejection, routing, or backend 404), related nodes on the map may show a red !; on the Client step you can read the HTTP status and details such as a JSON fault body in the response to the client.

uyarı

Steps expected after the failure may be missing on the map or appear unexecuted; an error response is returned to the client.

Policy Execution Details

Pre-flow Policies

Policies executed first when a request arrives:

• Policy Name: Name of the executed policy
• Execution Time: Policy execution time (ms)
• Status: Success / Failure status
• Changes: Changes made by the policy to the message (header, body, variable changes)

Examples: Authentication, rate limiting, IP control

Route Step (Routing)

Routing step to Backend API:

• Selected Upstream: Selected upstream target
• Load Balancing Decision: Load balancing algorithm decision
• Connection Time: Connection time to backend (ms)
• Backend Response Time: Backend response time (ms)
• Retry/Failover: Retry or failover status

Post-flow Policies

Policies executed after response comes from backend:

• Policy Name: Name of the executed policy
• Execution Time: Policy execution time (ms)
• Status: Success / Failure status
• Changes: Changes made to the response message

Examples: Response transformation, cache writing, logging

Fault Handler

Policies executed in case of error:

• Error Type: Error type (authentication, routing, policy, etc.)
• Error Message: Error message
• Handler Policies: Executed error handler policies
• Final Response: Final response returned to client

bilgi

Fault Handler only runs when an error occurs and allows you to customize the error response.

Policy-Specific Execution Details

Certain policy types display an "Execution Details" button in the policy panel header bar. Clicking the button opens a modal with policy-type-specific domain information presented in accordion sections. This detailed view is available on both request-side (pre-flow, request) and response-side (response, post-flow) policy nodes in the trace detail drawer.

Policy types with Execution Details:

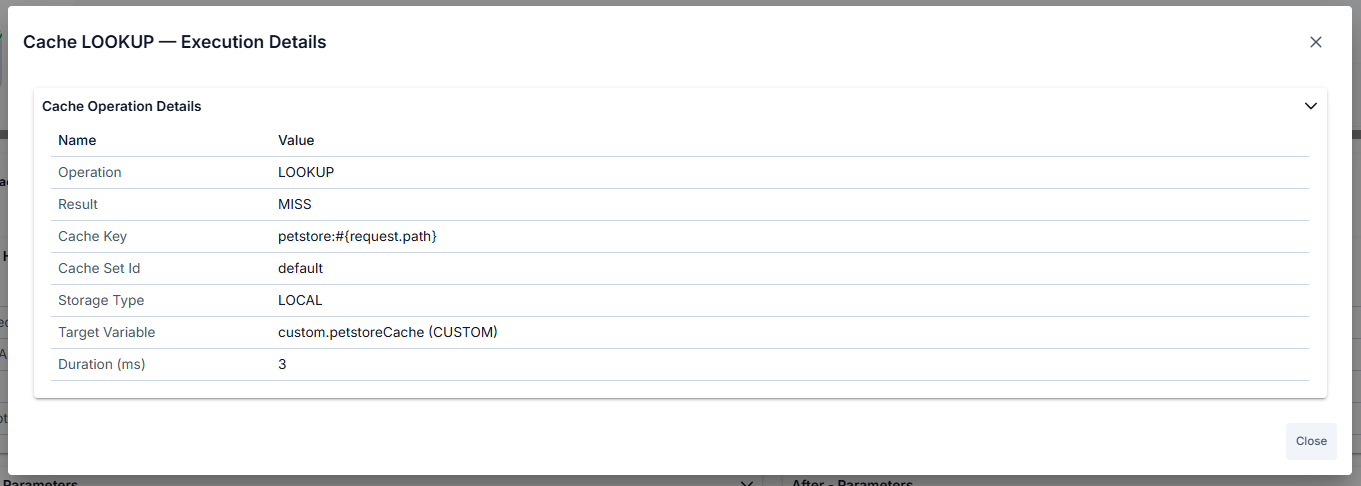

1. Cache Policy — Operation (LOOKUP/POPULATE/INVALIDATE), cache key, cache set name, hit/miss status (for LOOKUP), source/target variable names, TTL applied, time remaining in cache.

2. API Call Policy — Cache status (HIT/MISS/DISABLED), backend service URL, HTTP method and status code, request/response headers, full request/response body, connection time, backend response time, retry/failover details.

3. Backend API Authentication Policy — Authentication result (authenticated true/false), extracted username or principal, assigned roles, extracted claims or attributes, HTTP authentication call details (URL, method, headers).

4. JOSE Validation / Implementation Dynamic Key Fetch Policy — Key cache lookup status (hit/miss), validation or implementation mode, key extraction path (JSONPath/XPath), key ID (kid), algorithm used, HTTP call details for remote key fetch (if applicable).

5. Client Ban Policy — Ban status (banned/not banned), ban source (IP address or other identifier), remaining ban duration, ban reason, cache lookup details.

6. API Based Throttling Policy — Current request count and limit threshold, time window, allowed/blocked decision, cache lookup status (hit/miss), sliding window details.

7. API Based Quota Policy — Current quota usage and quota limit, period end time, allowed/blocked decision, cache lookup status (hit/miss), reset time for next period.

8. Business Rule Policy — Per-action execution list showing: action type, operator, execution status (executed/skipped/error), condition evaluation result, input and output values, execution duration in milliseconds.

Detailed Log Records

When you select a log row, the drawer summarizes success or failure via the map and header; the lower panel shows tables and bodies for the selected node. Overview example — map, summary line, and request headers:

Below, common steps in the same drawer are summarized with the recommended screenshots (full walkthrough on Step-by-Step Tracing).

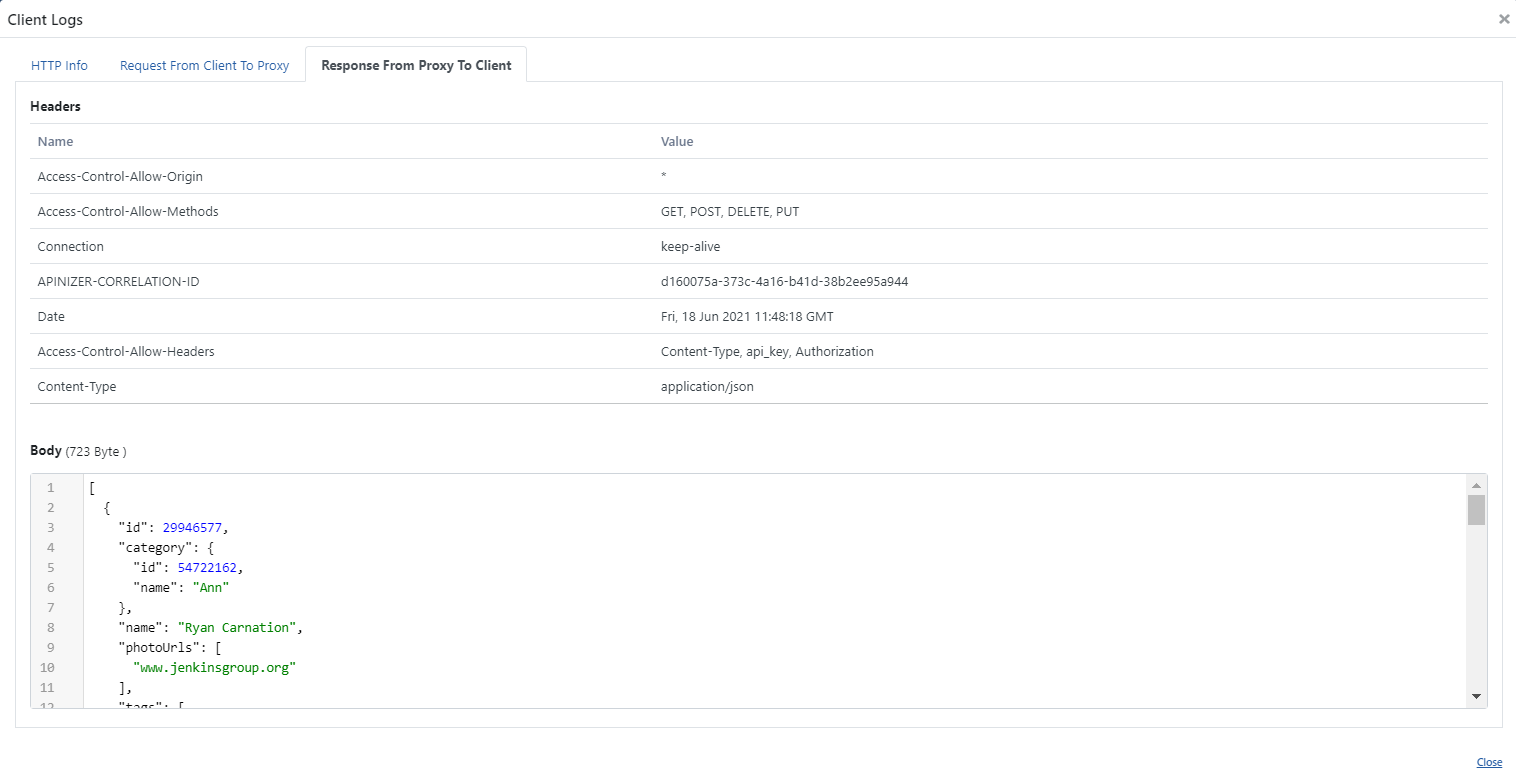

Client step

When the Client node is selected on the map, the left column shows the request from the client (HTTP Info, headers, parameters, body) and the right column shows the response sent to the client.

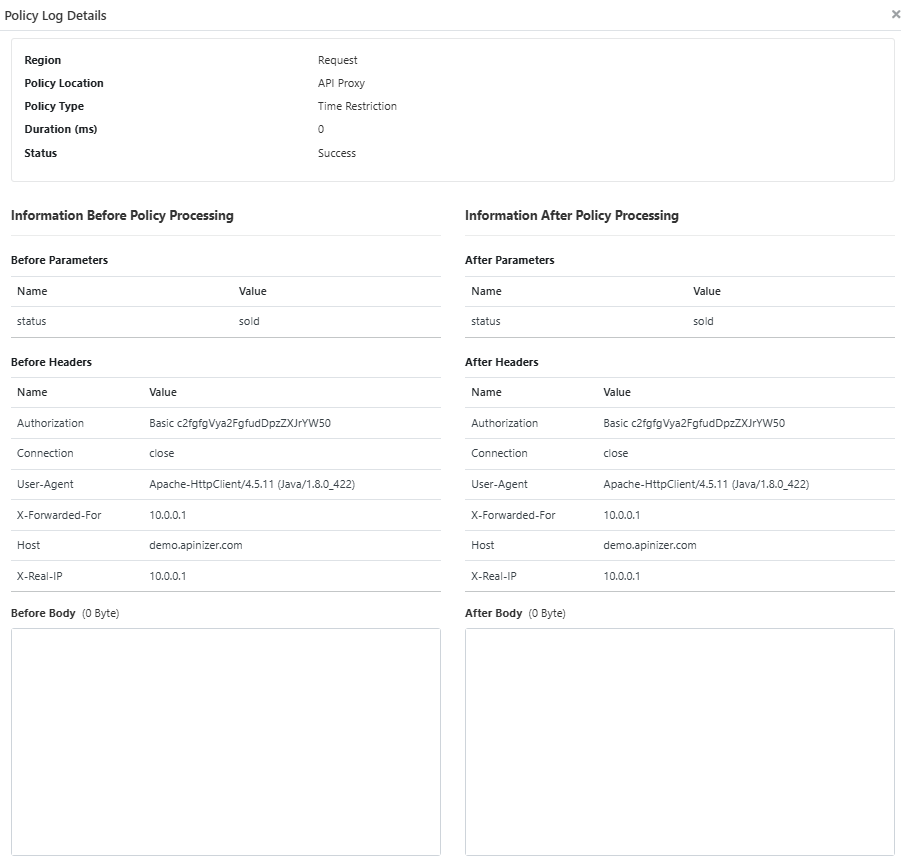

Policy step (Before / After)

Click a policy node on the map to see execution info and Before / After accordions comparing message state.

Backend API and routing

Target (API) summary, Routing table (expanded row; see HTTP Routing), and response from target are illustrated below in order.

Request/Response Comparison

Trace mode shows how the message changes along the flow:

Before/After

You can compare the before and after state of the message for each policy

Transformation Analysis

You can see the effect of transformation policies

Header Changes

You can see added, modified, or deleted headers

Body Changes

You can see JSON/XML transformations and content changes

Performance Analysis

Trace mode provides detailed timing metrics to detect performance issues.

Timing Metrics

The following metrics are displayed for each trace record:

Metric	Description
Total Duration	Total entry-exit time of the request (ms)
Pre-flow Duration	Total execution time of pre-flow policies
Route Duration	Connection to backend and response receiving time
Backend Duration	Backend API response time (net)
Post-flow Duration	Total execution time of post-flow policies
Gateway Overhead	Time added by Apinizer Gateway (Total - Backend)

ipucu

If Gateway Overhead is high, policy optimization can be done. If Backend Duration is high, backend API should be optimized.

Policy Performance Analysis

To analyze policy performance:

Slowest Policies

You can identify and optimize policies taking the longest time

Policy Count

You can see the total number of policies executed, remove unnecessary policies

Average Policy Duration

You can monitor the average execution time of each policy

Policy Execution Order

You can improve performance by changing the order of policies

Optimization Recommendations:

• Cache Policy: Use cache to reduce backend calls
• Conditional Flow: Conditionally skip unnecessary policies
• Script Optimization: Optimize slow operations in script policies
• Transformation: Remove unnecessary transformations

Backend Performance Metrics

To monitor backend API performance:

Metric	Description
Connection Time	TCP connection time to backend server
SSL Handshake Time	SSL handshake time for HTTPS connection
Response Time	Backend response generation time
Total Backend Time	Connection + Response total time
Backend Status	Success status of backend call
Retry/Failover Count	Number of retries or failovers performed

uyarı

High Connection Time indicates that the backend server is slow or has network issues. High Response Time indicates that the backend API needs to be optimized.

Use Cases

Scenario 1: Performance Issue Detection

Situation: Response times of an API Proxy are higher than expected.

Start Trace

Activate trace mode from the API Proxy page

Examine Slow Requests

Find slow requests (e.g., >1000ms) in trace records

Examine Policy Flow

Open the trace detail drawer (table row or Select) and identify the slowest policies

Detect Bottlenecks

• Is backend API slow? → Backend should be optimized
• Are policies slow? → Script/transformation should be optimized
• Is database query slow? → Cache can be used

Perform Optimization

Fix detected issues and test again with trace

Scenario 2: Debugging

Situation: Some requests return 500 error and the cause is unknown.

Start Trace

Activate trace mode from the API Proxy page

Find Failed Requests

Find 5xx errors in trace records

Find Policy Where Error Occurred

Open the trace detail drawer (table row or Select) and find the policy marked with !

Examine Policy Details

• Examine the message coming to the policy (Before)
• Read the error message
• Examine detailed log records

Perform Root Cause Analysis

• Is data format wrong?
• Is header missing?
• Is it a script error?
• Is backend unreachable?

Fix and Test

Fix the issue and test again with trace

Scenario 3: Transformation Validation

Situation: Checking if JSON to XML transformation works correctly.

Start Trace

Activate trace mode from the API Proxy page

Send Test Request

Send a sample JSON request from Test Console

Select Transformation Policy

Open the trace detail drawer (table row or Select) and click the transformation policy node

Compare Before/After

• Before: Incoming JSON message
• After: Converted XML message
• Check if the transformation is correct

Check Message Going to Backend

Verify in Backend API log records that the outgoing message is in XML format and correct

Scenario 4: Conditional Flow Testing

Situation: Testing if conditional policies work correctly.

Start Trace

Activate trace mode from the API Proxy page

Send Requests for Different Conditions

• Request for premium user
• Request for normal user
• Request for guest

Examine Trace for Each Request

Open the trace detail drawer (table row or Select) and see which policies ran

Check Condition Evaluation

• What was the condition expression?
• What was the evaluation result?
• Did the correct policies run?

Fix Conditions if Necessary

Fix incorrect conditions and test again with trace

Best Practices

Trace Usage

Use Frequently in Development Environment

• Trace continuously during development
• Always test with trace when adding new policies
• Validate API changes with trace

Be Careful in Production

• Activate trace in production only when necessary
• Trace automatically closes after 5 minutes
• Consider performance impact

Use Custom Query

• Filter with Custom Query from the filter field next to environment selection
• Trace only relevant endpoints
• Minimize unnecessary trace records

Use on API Proxy Basis

• Start trace separately for each API Proxy
• Activate trace mode from the relevant API Proxy's page
• Trace records are stored in MongoDB

Performance Monitoring

uyarı

Create Performance Baseline:

• Measure average response time of API under normal conditions
• Record average execution time of each policy
• Monitor deviations from baseline and set alarms

Regular Monitoring:

• Run performance trace once a week
• Perform trend analyses
• Detect slowdowns early

Optimization Cycle:

1. Detect bottlenecks with trace
2. Optimize
3. Validate improvement with trace
4. Document results

Debugging

ipucu

Repeatable Test Scenarios:

• Prepare test scenarios before starting trace
• Get consistent results using the same test data
• Test edge cases

Systematic Approach:

1. Isolate the problem (which endpoint, under which condition?)
2. Collect detailed information with trace
3. Perform root cause analysis
4. Fix
5. Validate with trace
6. Document the process

Before/After Comparison:

• Compare input/output messages for each policy
• Detect unexpected changes
• Check transformation correctness

Related Resources

Step-by-Step Tracing

API Proxy-based trace operations

Test Console

API test and debug console

Policy Management

Managing and configuring policies

API Traffic Log Settings

Configuring log record settings

Message Processing and Policy Application

Information about message flow and policy execution

Conditional Policy Execution

Detailed information about conditional flow
