Overview

Secure Access

This Connection enables integration steps running on Apinizer to securely access SMTP servers.

Central Management

Provides manageability from a single configuration point in warning, alarm, notification, or bulk email scenarios.

Advanced Parameters

Ensures compatibility with different service providers thanks to advanced parameters such as TLS, authentication, and custom SMTP headers.

Environment-Based Settings

Reduces repetitive definitions in Development/Test/Production distinctions thanks to environment-based settings.

Connection Initialization

When SMTP type Connection is requested from within Integration Flow or Connector, the system reads configured connection parameters.

Connection Pool Management

Email Connections work with lightweight sessions opened per request; pool is disabled but worker queues queue concurrent requests.

Authentication

Authentication is performed with username/password if Auth toggle is on, otherwise with anonymous SMTP access.

Data Communication

MIME messages and additional headers are sent via SMTP with TLS/STARTTLS support.

Connection Management

After the operation is completed, session is closed and worker returns to clean state for new requests.

Error Management

In case of connection error, timeout, or authentication error, details are written to Apinizer logs, error message and recommended actions are notified to the user.

Automatic Notifications

Automatic email notifications for system events or monitoring alarms

Secure Mailboxes

Secure mailboxes that send verification codes from identity providers

PDF Attachment Communication

Outgoing communication scenarios with PDF attachments such as invoices, receipts, or reports

Periodic Reports

Sharing periodic status/health reports via Scheduled Jobs

​
Technical Features and Capabilities

STARTTLS Support

Upgrades SMTP sessions to TLS with enableStartTls toggle.

Conditional Authentication

When auth is active, username/password becomes mandatory and credential verification is performed.

Sender Identity Management

Sender address to be used in all messages is centrally defined with from field.

Environment-Based Configuration

Ability to define separate connection parameters for each environment (Development, Test, Production).

Enable/Disable Control

Making Connection active or passive (enable/disable toggle). In passive state, connection cannot be used but its configuration is saved.

Additional SMTP Properties

Server-specific headers or protocol parameters can be added with additionalProperties.

Address-Based Test Sending

Verification is performed before actual sending with addressToTest field and Test Mail button.

Deployment to Worker

Deployment of Connection to gateway or worker processes is controlled with deployToWorker flag.

Connection Test Feature

Ability to verify connection parameters before saving with “Test Connection” button.

Export/Import Feature

Exporting Connection configuration as ZIP file. Importing to different environments (Development, Test, Production). Version control and backup capability.

Connection Monitoring

Monitoring connection health, pool status, and performance metrics.

​
Connection Parameters

Name

Description: Connection name (must be unique)
Example Value: Production_EmailSMTP
Notes: Should not start with space, special characters should not be used

Host

Description: FQDN/IP information of SMTP server
Example Value: smtp.mailprovider.com
Notes: 255 character limit

Port

Description: SMTP port number
Example Value: 587
Notes: 587 recommended for TLS, 465 for SSL

From

Description: Sender address to be used in messages
Example Value: [email protected]
Notes: Must be valid email format

Default Encoding

Description: Body/header character set
Example Value: UTF-8
Notes: Comes as UTF-8 by default in UI

Username (Auth on)

Description: SMTP account username
Example Value: alert.bot
Notes: Required when Auth toggle is on

Password (Auth on)

Description: SMTP account password
Example Value: ••••••
Notes: Required when Auth toggle is on

Description

Description: Description field for Connection purpose
Default Value: Empty
Recommended Value: Example: Prod alarm mail channel

Enable STARTTLS

Description: Toggle for upgrading to TLS
Default Value: false
Recommended Value: true in environments where TLS is mandatory

Auth

Description: Authentication requirement
Default Value: false
Recommended Value: true in most providers

AddressToTest

Description: Address where test mail will be sent
Default Value: Empty
Recommended Value: Dev team distribution list

Additional Properties

Description: Provider-specific key/value set for SMTP
Default Value: Empty array
Recommended Value: Like mail.smtp.connectiontimeout=15000

DeployToWorker

Description: Deployment option on worker
Default Value: true
Recommended Value: Kept true in high traffic scenarios

Connection Timeout

Description: Maximum wait time for establishing connection
Default: 30000
Min: 5000 | Max: 60000
Unit: milliseconds

Request Timeout

Description: Maximum wait time for request response
Default: 60000
Min: 10000 | Max: 120000
Unit: milliseconds

Pool Size

Description: Maximum number of connections in Connection pool
Default: 1
Min: 1 | Max: 5
Unit: count

Mail Retry Delay

Description: Wait between failed SMTP attempts
Default: 2000
Min: 1000 | Max: 10000
Unit: milliseconds

​
Usage Scenarios

Alarm Notifications

Situation: Monitoring system produces critical alarm
Solution: Host=smtp.ops.local, From=[email protected], Auth=true
Expected Behavior: Alarm mail goes to recipient list via TLS

User Verification Codes

Situation: OTP sent during authentication process
Solution: Port=587, Enable STARTTLS=true, DeployToWorker=true
Expected Behavior: OTP message is transmitted within seconds

Financial Reporting

Situation: Monthly reports with PDF attachments sent
Solution: AdditionalProperties with mail.smtp.writetimeout=120000
Expected Behavior: Large attachments sent without timeout

Test Environment Smoke Test

Situation: Dummy address for test environment scenarios
Solution: Environment=Test, Auth=false, From=[email protected]
Expected Behavior: Messages fall to sandbox SMTP

External Service Failover

Situation: Secondary activates when primary SMTP is down
Solution: Host=primary, AdditionalProperties.failover=smtp2
Expected Behavior: Second host is used without flow interruption

Bulk Campaign

Situation: High volume in marketing campaign
Solution: Pool Size=5, DeployToWorker=true, Description=Campaign
Expected Behavior: Workers distribute load and increase throughput

​
Connection Configuration

​

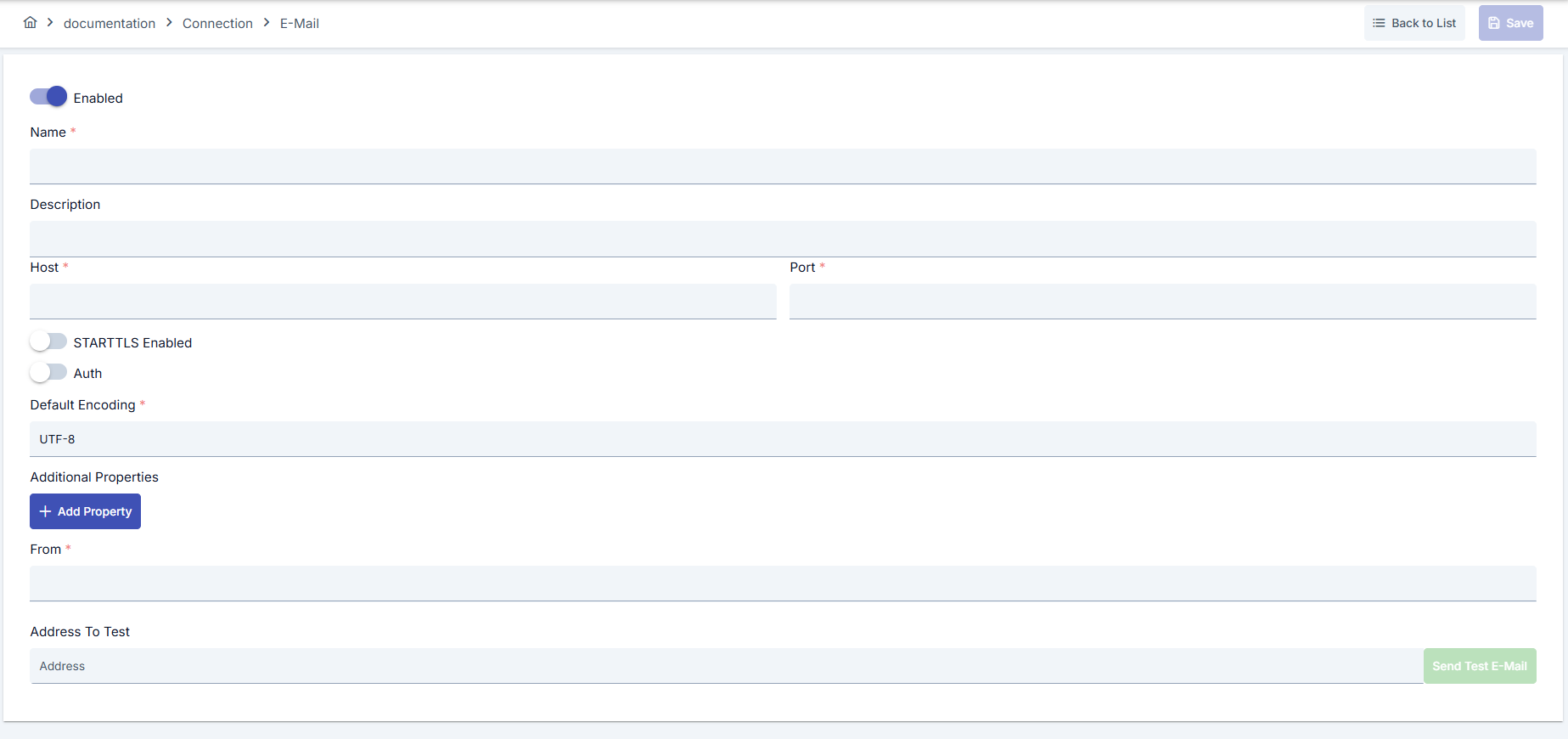

Creating New Email Connection

Image 2024 9 9 15 35 35 Pn

​
Configuration Steps

1

Going to Creation Page

  • Click Connection option from left menu on Apinizer main screen.
  • Select Email option from opened submenu.
  • Email Connection list page opens.
  • Click [+ Create] button in top right corner of page.
  • New Email Connection creation form opens.
2

Entering Basic Information

Enable Status (Active Status) Setting:
  • Find Enable Status toggle at top of form.
  • Set toggle to Active position (comes active by default).
  • If you want to make Connection passive, set toggle to Passive position.
  • Passive connections cannot be used in Integration Flows but their configurations are saved.
Name (Name) - Required Field:
  • Enter a unique connection name in Name field.
  • Name examples: Production_EmailSMTP, Test_EmailConnection, Dev_SMTP_Alerts
  • Name rules:
  • Should not start with space
  • Special characters should not be used (recommended: letter, number, underscore)
  • Maximum 255 characters
  • System automatically checks as you type name:
  • Green checkmark: Name is available
  • Red X mark: Name already exists, select different name
Description (Description) - Optional:
  • Enter text describing the purpose of connection in Description field.
  • Example descriptions:
  • “SMTP channel for alarms”
  • “Production environment email notifications”
  • “Dummy SMTP connection for test environment”
  • Maximum 1000 character limit exists.
  • This field can be left empty.
3

Environment Selection

  • Find Environment dropdown menu.
  • Open dropdown menu and select one of the following options:
  • Development: For development environment
  • Test: For test environment
  • Production: For production environment
  • Different connection parameters can be defined for each environment.
  • Environment selection determines in which environment connection will be active.
  • Connections with same name can be created separately for different environments.
4

SMTP Server Information

Host (Server Address) - Required:
  • Enter SMTP server address in Host field.
  • Host format:
  • FQDN (Fully Qualified Domain Name): smtp.mailprovider.com
  • IP address: 192.168.1.100
  • Maximum 255 character limit exists.
  • Get correct host address from your SMTP provider’s documentation.
Port (Port Number) - Required:
  • Enter SMTP port number in Port field.
  • Common port numbers:
  • 25: Standard SMTP (usually unencrypted)
  • 465: SMTP with SSL/TLS (SMTPS)
  • 587: SMTP with STARTTLS (recommended)
  • Check correct port number from your SMTP provider’s documentation.
  • Port number must be between 1-65535.
Enable STARTTLS Setting:
  • Find Enable STARTTLS toggle.
  • If your SMTP provider requires TLS/STARTTLS, set toggle to Active position.
  • If using port 587, STARTTLS should generally be active.
  • If using port 465, STARTTLS is generally not needed (SSL/TLS is used directly).
  • Check provider documentation to make correct setting.
Port 587 and STARTTLS combination is recommended for most modern SMTP providers.
5

Sender and Authentication

From (Sender Address) - Required:Auth (Authentication) Setting:
  • Find Auth toggle.
  • If your SMTP server requires authentication, set toggle to Active position.
  • Most modern SMTP providers require authentication.
Username (Username) - Required when Auth is on:
  • If Auth toggle is active, Username field becomes visible.
  • Enter username of your SMTP account.
  • Examples: alert.bot, smtp.user, [email protected]
  • In some providers, username may be full email address.
  • Check correct format from your SMTP provider’s documentation.
Password (Password) - Required when Auth is on:
  • If Auth toggle is active, Password field becomes visible.
  • Enter password of your SMTP account.
  • Password will appear masked for security reasons.
  • You can click eye icon to see password.
  • Use of secret manager is recommended for sensitive information.
6

Timeout and Connection Pool Settings

  • No field exists directly in UI for timeout and pool settings.
  • Use Additional Properties section to make these settings (detailed in Step 7).
  • Common timeout settings:
  • mail.smtp.connectiontimeout=30000 (30 seconds)
  • mail.smtp.timeout=60000 (60 seconds)
  • mail.smtp.writetimeout=120000 (120 seconds - for large attachments)
  • Connection pool settings generally work with default values.
  • Add to Additional Properties for special requirements.
7

Additional Properties and Security Settings

Additional Properties (Additional Properties) - Optional:
  • Find Additional Properties section.
  • Use this section to add provider-specific parameters for your SMTP provider.
  • Add parameters in Key-Value format:
  • Example: mail.smtp.connectiontimeout=15000
  • Example: mail.smtp.writetimeout=120000
  • Commonly used properties:
  • mail.smtp.connectiontimeout: Connection timeout (milliseconds)
  • mail.smtp.timeout: General timeout (milliseconds)
  • mail.smtp.writetimeout: Write timeout (milliseconds)
  • mail.smtp.auth.mechanisms: Authentication mechanism
  • Add one key-value pair per line.
  • Check supported properties from your SMTP provider’s documentation.
AddressToTest (Test Address) - Optional:
  • Find AddressToTest field.
  • Enter email address to be used for test mail sending.
  • This address is where test mail will be sent when Test Connection button is clicked.
  • Example: [email protected], [email protected]
  • This field can be left empty, but filling it is recommended for testing.
DeployToWorker Setting:
  • Find DeployToWorker toggle.
  • Set toggle to Active position in high traffic scenarios.
  • Deployment on worker is recommended for load distribution and performance.
  • Comes active by default.
8

Test Connection

  • Find [Test Connection] button at bottom of form or in top right corner.
  • Click button.
  • System tests connection parameters:
  • Connection is established to SMTP server
  • Authentication is performed (if Auth is active)
  • STARTTLS handshake is performed (if active)
  • Test mail is sent (if AddressToTest is filled)
  • Test result:
  • Successful: Green confirmation message is displayed, message like “Connection test successful”
  • Failed: Red error message is displayed, error details are shown
  • In error case:
  • Read error message
  • Check relevant parameters (Host, Port, Username, Password)
  • Check firewall and network settings
  • Check SMTP provider documentation
  • Fix parameters and test again until test is successful.
9

Saving and Deploying

  • Ensure all required fields are filled.
  • Verify that test connection is successful (recommended).
  • Click [Save and Deploy] button in top right corner of form.
  • System saves connection and deploys to selected environment.
  • After successful save:
  • You are redirected to Connection list page
  • New connection appears in list
  • Connection becomes Enabled status
  • Becomes available for use in Integration Flow and Connector steps
Checklist (Before Saving):
  • Name field is unique and valid
  • Host and Port fields are filled
  • From address is in valid email format
  • If Auth is active, Username and Password are filled
  • Environment is selected
  • Test Connection is successful (recommended)
  • All required fields are filled
Result:
  • Connection is successfully created and saved
  • Becomes active in selected environment
  • Connection selection can be made in Integration Flow and Connector steps
  • Is displayed and can be managed in Connection list
Connection created successfully! You can now use it in Integration Flow and Connector steps.

​
Deleting Connection

Deletion Operation

Select Delete from ⋮ menu at end of row or click [Delete] button on connection detail page

Deletion Tips

Check Before Deleting: May be used in Integration Flow or Connector steps. Assign alternative connection if necessary. Backup with Export before deletingAlternative: Deactivate
  • Use Disable option instead of deleting.
  • Connection becomes passive but is not deleted.
  • Can be reactivated when needed.

​
Exporting/Importing Connection

In this step, users can export (export) existing connections for backup, moving to different environments, or sharing purposes, or import (import) a previously exported connection again. This operation is used to maintain data integrity in version control, transitions between test and production environments, or inter-team sharing processes.

Method 1

Select ⋮ → Export from action menu. ZIP file is automatically downloaded.

Method 2

Click [Export] button on Connection detail page. ZIP file is downloaded.

File Format

Format: Date-connection-ConnectionName-export.zip
Example: 13 Nov 2025-connection-Production_EmailSMTP-export.zip

ZIP Contents

  • Connection JSON file
  • Metadata information
  • Dependency information (e.g., certificates, key store)

Usage Areas

  • Backup
  • Moving between environments (Test → Prod)
  • Versioning
  • Team or project-based sharing

Import Steps

  • Click [Import Email] button on main list.
  • Select downloaded ZIP file.
  • System checks: Is format valid? Is there name conflict? Are dependencies present?
  • Then click [Import] button.

Import Scenarios

Scenario 1: Name Conflict → Overwrite old connection or create with new name.Scenario 2: Missing Dependencies → Create missing certificates or key stores first or exclude during import.

​
Usage Areas of Connection

Creating and Activating Connection

Steps:
  1. Create Connection.
  2. Verify connection with Test Connection.
  3. Save and activate with Save and Deploy.
  4. Ensure Connection is in Enabled status

Usage in Integration / Connector Steps

Connection is selected in steps requesting communication with external systems such as message queue (queue), topic, email, FTP/SFTP, LDAP, or similar. Examples: steps like “Send Message”, “Consume Message”, “Upload File”, “Read Directory”. Connection selection is made from Connection field in these steps’ configuration

Scheduled Job Usage

Connection is selected in scheduled tasks (e.g., sending messages at certain intervals, file processing, etc.) to access external systems. When Connection changes, job execution behavior is also updated accordingly

Test Purpose Usage

Connection accuracy can be checked independently of Integration Flow with Connection Test feature. This test is critical in debugging process

​
Best Practices

SMTP Provider Management

Bad: Managing different providers with same Connection.
Good: Opening separate Connection for each provider.
Best: Specifying environment + provider combination in name (Prod_SendGrid)

Sender Identity

Bad: Changing from field with random addresses.
Good: Using meaningful addresses according to business processes.
Best: Defining corporate alias compatible with DMARC/SPF records

Credential Lifecycle

Bad: Never updating shared passwords.
Good: Rotating manually at intervals.
Best: Setting up rotation automation through secret manager

Additional Parameter Management

Bad: Leaving additionalProperties field empty.
Good: Adding only needed keys.
Best: Recording all mandatory SMTP properties from provider documentation

Environment Management

Bad: Using same connection parameters in all environments.
Good: Creating separate connection for each environment.
Best: Managing all environments in single connection using environment option, only changing environment during inter-environment transitions

Connection Test

Bad: Saving and deploying Connection without testing.
Good: Verifying with Test Connection before saving.
Best: Testing after each parameter change, performing full integration test in test environment before moving to production

SMTP Authentication

When Auth is on, username/password should only be visible to necessary roles. Do not copy and share passwords through UI

Role-Based Access

Limit enable/disable permissions to teams responsible for email infrastructure; incorrect configuration can stop all notifications

Additional Parameter Security

If sensitive keys exist in additionalProperties, keep values with masked secret references

Credential Management

Store sensitive information such as username and password using environment variable or secret manager. Do not hardcode credentials in code or configuration files. Update passwords periodically

SSL/TLS Usage

Always enable SSL/TLS in Production environment. Use self-signed certificates only in development environment. Track certificate expiration dates and renew on time

Access Control

Allow only authorized users to change Connection configuration. Store Connection change logs. Apply change approval process for critical connections

Single Server Dependency

Why to avoid: All email flow stops when primary SMTP service is interrupted.
Alternative: Define secondary host with additionalProperties or separate Connection

Shared Credentials

Why to avoid: Password leak affects all processes.
Alternative: Open separate user account for each application, audit accesses

Wrong Sender Address

Why to avoid: SPF/DKIM incompatibility causes emails to fall into spam folder.
Alternative: Use approved domain aliases and keep DNS records up to date

Using Production Connection in Test Environment

Why to avoid: Test data may be written to production system, real users may be affected, security risk occurs.
Alternative: Create separate connection for each environment, use environment parameter, separate connection names by adding prefix according to environment (Test_, Prod_)

Very Low Timeout Values

Why to avoid: Connection constantly times out in network delays, Integration steps fail.
Alternative: Adjust timeout values according to real usage scenarios, measure network latency and determine timeouts accordingly

Not Using Connection Pool

Why to avoid: New connection opens on each request, performance decreases, resource consumption increases, target system load increases.
Alternative: Enable Connection pool, adjust pool size according to traffic volume, set up pool monitoring

SMTP Host Selection

Recommendation: Prefer SMTP hosts in same datacenter.
Effect: Network delay decreases, timeout risk decreases

Additional Parameter Optimization

Recommendation: Adjust mail.smtp.connectiontimeout, mail.smtp.writetimeout values according to real load tests.
Effect: Stable performance even with large attachments

Test Mail Automation

Recommendation: Trigger Test Connection API in CI/CD.
Effect: Incorrect configurations are caught before moving to production

Connection Pool Optimization

Recommendation: Adjust pool size according to peak traffic (recommended: concurrent request count × 1.5), set idle connection timeouts, perform pool health check.
Effect: Connection opening cost decreases by 80%, response times decrease, resource usage is optimized

Timeout Values Optimization

Recommendation: Measure real network latency, adjust timeout values accordingly, avoid very low or very high timeouts.
Effect: Unnecessary waits are prevented, fast fail-over is provided, user experience improves

Connection Monitoring

Recommendation: Monitor Connection pool usage, track timeout rates, perform connection health check, set up alerting.
Effect: Problems are detected proactively, performance bottlenecks are identified early, downtime decreases

​
Troubleshooting

Wrong from domain, SMTP provider blocked, or TLS may be mandatory but disabled.
1

DNS/SPF Check

Verify DNS/SPF records.
2

Provider Logs

Check provider logs.
3

Enable STARTTLS

Open Enable STARTTLS toggle and test again.
addressToTest may be invalid, Auth information may be wrong, or SMTP port may be closed in firewall.
1

Test Address

Update test address.
2

Credential Check

Re-enter credentials.
3

Port Check

Verify port opening from network team.
Network delay, target system responding slowly, or timeout value may be too low.
1

Network Check

Check network connectivity.
2

System Health

Check target system health.
3

Timeout Settings

Increase timeout values.
4

Log Review

Review Connection logs.
Wrong username/password, expired credentials, or permission problem may exist.
1

Credentials

Verify credentials.
2

User Status

Check that user is active in target system.
3

Permission Check

Check that necessary permissions are granted.
4

Certificate Check

Check SSL/TLS certificates.
Pool size may be too low, connection leak may exist, or traffic may be too high.
1

Pool Size

Increase pool size.
2

Connection Check

Check that connections are properly closed.
3

Idle Timeout

Set idle connection timeouts.
4

Metric Monitoring

Monitor Connection usage metrics.
Different connection may be selected in Integration/Connector step, step may be incorrectly configured, or Flow/Job may not have been redeployed.
1

Enable Toggle

Check that Connection’s enable toggle is active.
2

Connection Selection

Verify that correct connection is selected in Integration Flow.
3

Connection Deploy

Redeploy Connection.
4

Flow/Job Deploy

Redeploy Integration Flow or Job.
5

Log Check

Check Gateway logs.

​
Frequently Asked Questions (FAQ)

Single Connection can carry single from address; create separate Connection by cloning for different addresses or use application-level override.
Most SMTP servers support STARTTLS command, if not supported you will get error at handshake stage; in this case close toggle.
Provider’s JavaMail compatible parameters (mail.smtp.connectiontimeout, mail.smtp.auth.mechanisms, etc.) are supported; key and value are free text.
No, only single mail is sent to address entered in addressToTest field; Integration Flow is not triggered.
Yes, when connectorMode is activated from connector screen, same form is used and your saved Connection appears in list.
Yes, the same connection can be used in multiple Integration Flow or Connector steps. This provides central management and guarantees configuration consistency. However, care should be taken as changes made to connection will affect all usage locations.
Connection pool usage is not mandatory but strongly recommended in high-traffic systems. Reusing existing connections instead of opening new connection on each request significantly increases performance.
Yes, it is recommended that you create separate connection for each environment. Alternatively, you can manage all environments within a single connection using environment parameter. This approach provides easier management and less error risk.
Several reasons may exist:
  1. Connection enable toggle may be passive
  2. Different connection may be selected in Integration step
  3. Connection may not have been deployed
  4. Integration Flow may not have been redeployed yet
