Application Logs
Filtering and Search

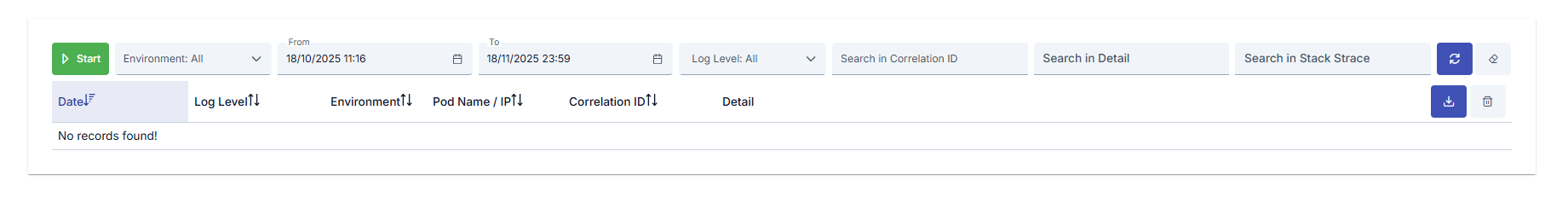

The fields used for operations and filtering on Application Logs are shown in the table below.
| Field | Description |
|---|---|
| Start | Enables recording of application logs on API Proxy basis. |
| Environment Filter | Enables filtering of application logs for the specified environment. |
| Time Filter | Enables filtering of application logs for the specified date range. |
| Log Level | Enables filtering of records at the specified log level in application logs. |
| Search by Correlation ID | Enables detailed search in application logs with the correlation ID defined by Apinizer for requests coming to API Proxy. Application logs for only the relevant request can be accessed with the correlation ID obtained from API Proxy Traffic logs. |
| Search by Detail | Enables search in text fields of application logs. |
| Search by Stack Trace | Enables search on exception text if an exception has occurred in application logs. |
| Download | Enables downloading application logs as a single file. All logs belonging to the API Proxy can be downloaded with the "All" option, filtered logs can be downloaded with the "Search Results" option. |
| Delete | Enables deletion of application log records belonging to this API Proxy. |
This page can be used when a software error is suspected or when you want to investigate how the application behaves in the background.
Log Levels
The Log Levels tab lets you configure the logging verbosity of each Apinizer component on a class or package basis.
| Field | Description |
|---|---|
| Class/Package Name | The fully qualified class or package name the level applies to; the level is applied to every logger whose name starts with this value. The seeded ROOT and com.apinizer entries (which cannot be removed) provide the baseline levels for the whole application and the Apinizer codebase respectively. |
| Manager / Gateway Engine / Cache / Integration Level | The log level (ALL, TRACE, DEBUG, INFO, WARN, ERROR, OFF) applied to the corresponding component for the given class or package. |
| Update All | Applies the selected levels to every existing entry at once. |
| Update / Remove | Updates or removes a single existing entry. |
A level change is delivered to the running Manager, Gateway Engine, and Cache components immediately, and each component also reloads its log level settings from the database when it restarts.
For the Integration level to take effect, the API Integration (Task Flow) Module URL must be configured under General Settings. If it is not set, the level change for Integration is skipped while the other components are still updated.
