Database Provider

Info

Accessible and manageable by roles that have the "Manage Authentication Services" permission such as "Project Owner".

1) Identity Authentication Connection with Database

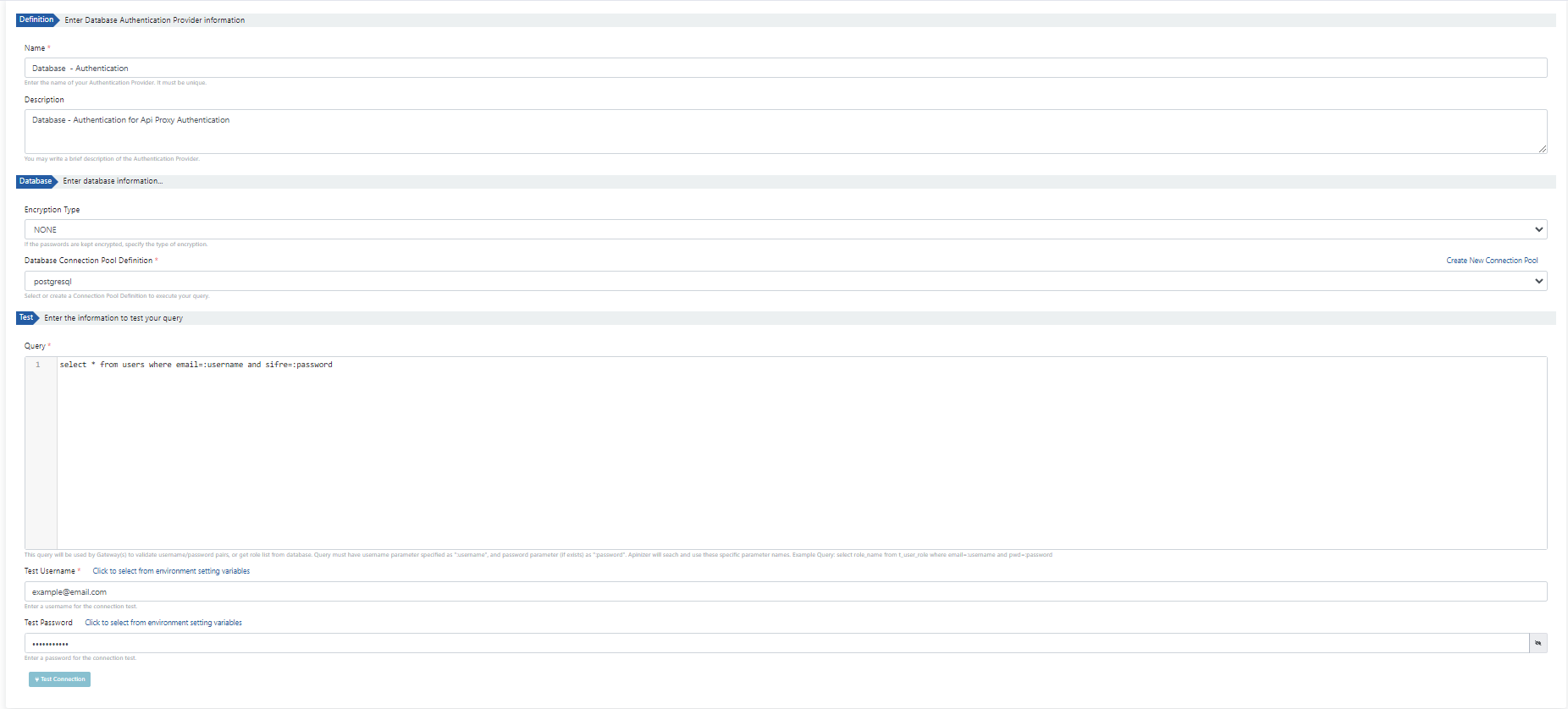

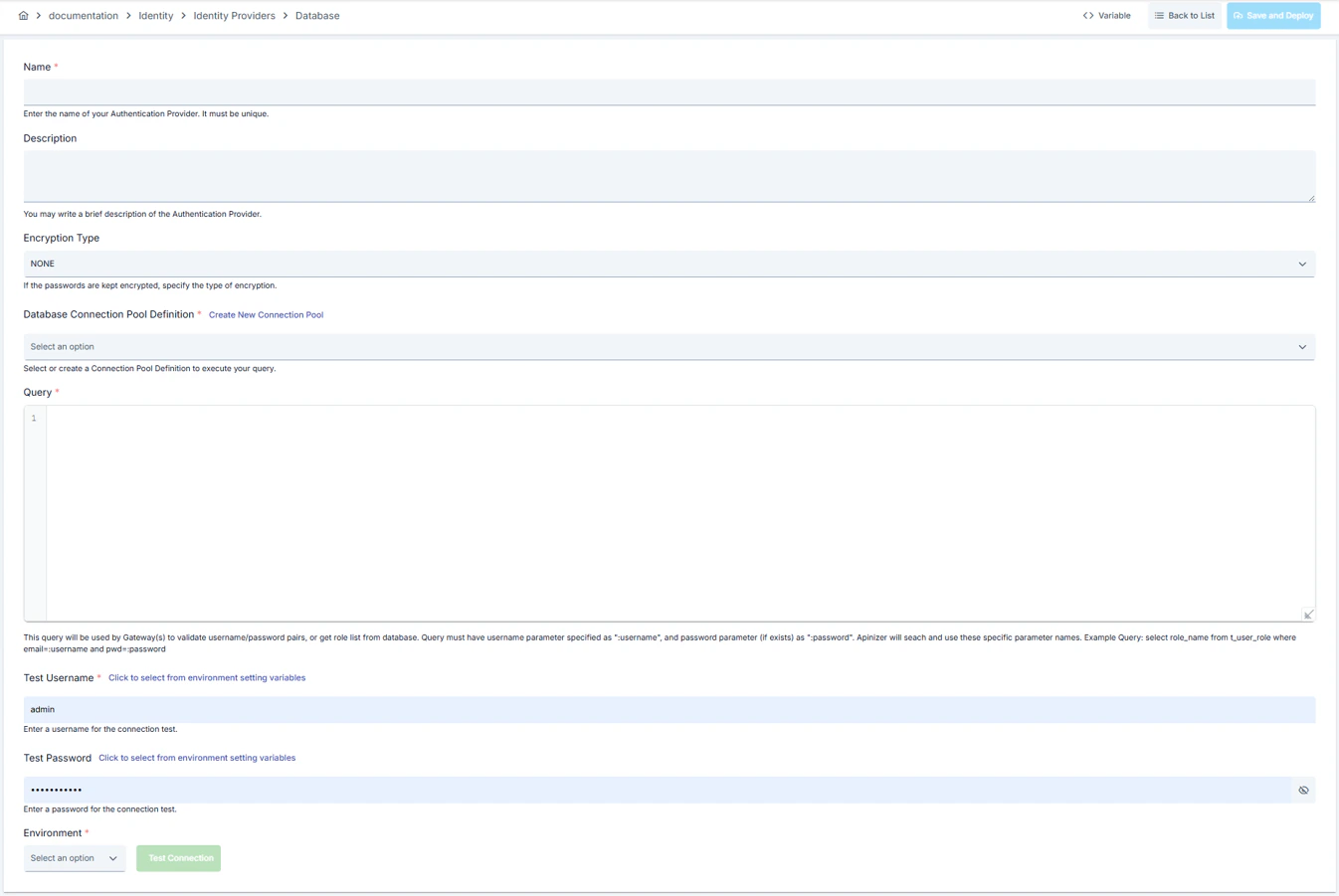

An image containing connection settings for identity authentication with database is shown below:

The fields used in connection settings for identity authentication with database are shown in the table below.

Field	Description
Name	Name information of the created Database Identity Provider.
Description	A description can be written to facilitate management related to the created Identity Provider.
Encryption Type (Encryption Type)	If password information is stored encrypted in the table to be used in the database connection, the encryption type of the password stored in the table must be selected. Options: NONE, MD2, MD5, SHA1, SHA224, SHA256, SHA384, SHA512, Blowfish, RC2, RC4, AES CBC NoPadding, AES CBC PKCS5Padding, AES ECB NoPadding, AES ECB PKCS5Padding, AES GCM NoPadding, AES CFB NoPadding, AES CFB PKCS5Padding, AES OFB NoPadding, AES OFB PKCS5Padding, AES CTR NoPadding, AES CTR PKCS5Padding, DES CBC NoPadding, DES CBC PKCS5Padding, DES ECB NoPadding, DES ECB PKCS5Padding, DESede CBC NoPadding, DESede CBC PKCS5Padding, DESede ECB NoPadding, DESede ECB PKCS5Padding
Database Connection Pool Definition (Database Connection Pool Definition)	The pool from which the database connection will be obtained is selected or created.
Query (Query)	A query is used to get username/password pairs or role list from the database. In the query, the username parameter should be defined as ":username" and if there is a password parameter, it should be defined as ":password". Apinizer works with these special parameter names. Example query: select role_name from t_user_role where email=:username and pwd=:password
Test Username (Test Username)	Enter the value that will be used instead of the username parameter when running the test query. You can select values from environment setting variables next to the field.
Test Password (Test Password)	Enter the value that will be used instead of the password parameter when running the test query. You can select values from environment setting variables next to the field.
Environment (Environment)	Select the environment for the Test Connection operation. This determines which environment variables are used in the test.
Variable Button (Variable)	You can select dynamic values for fields using the [<> Variable] button at the top of the page. For details, review Dynamic Variables.

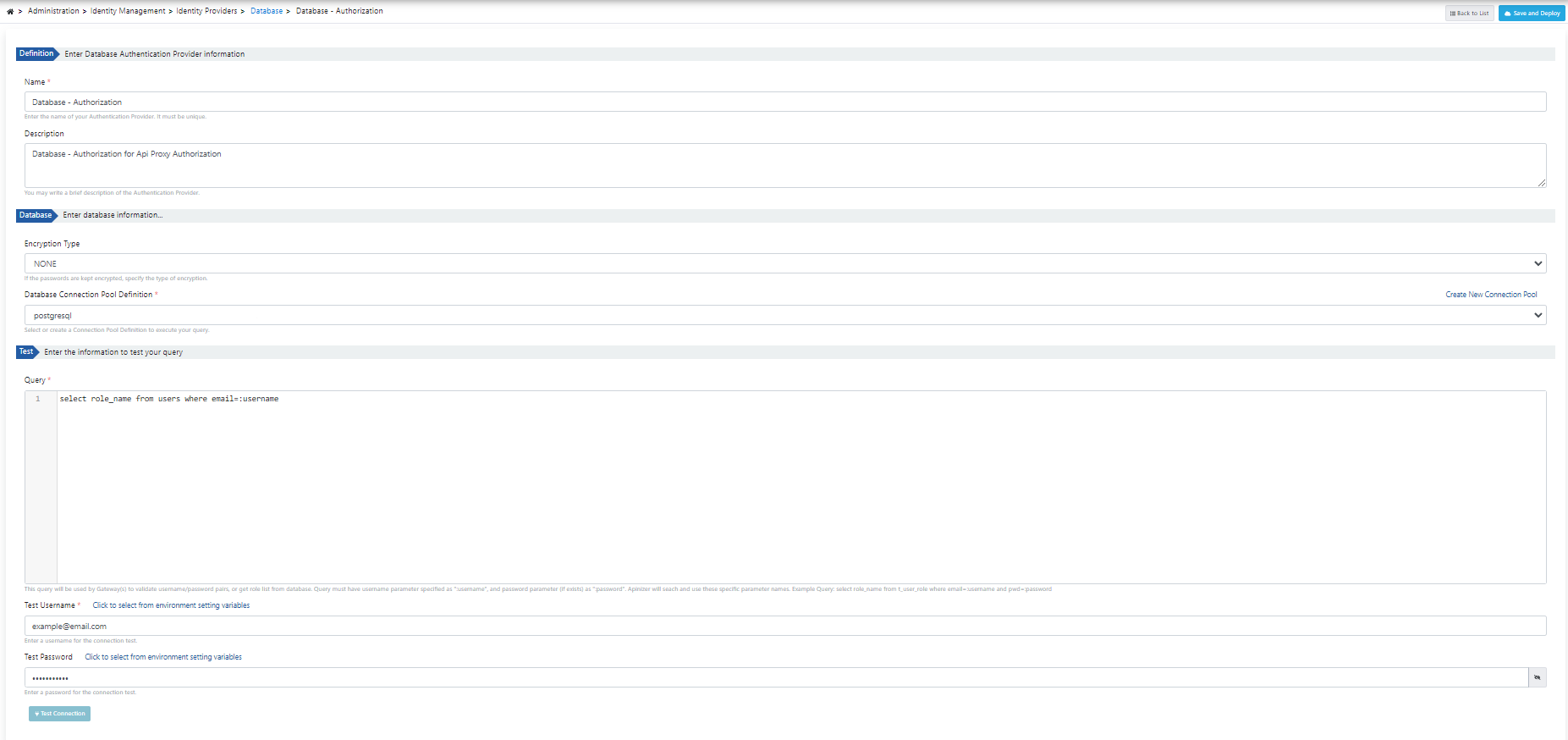

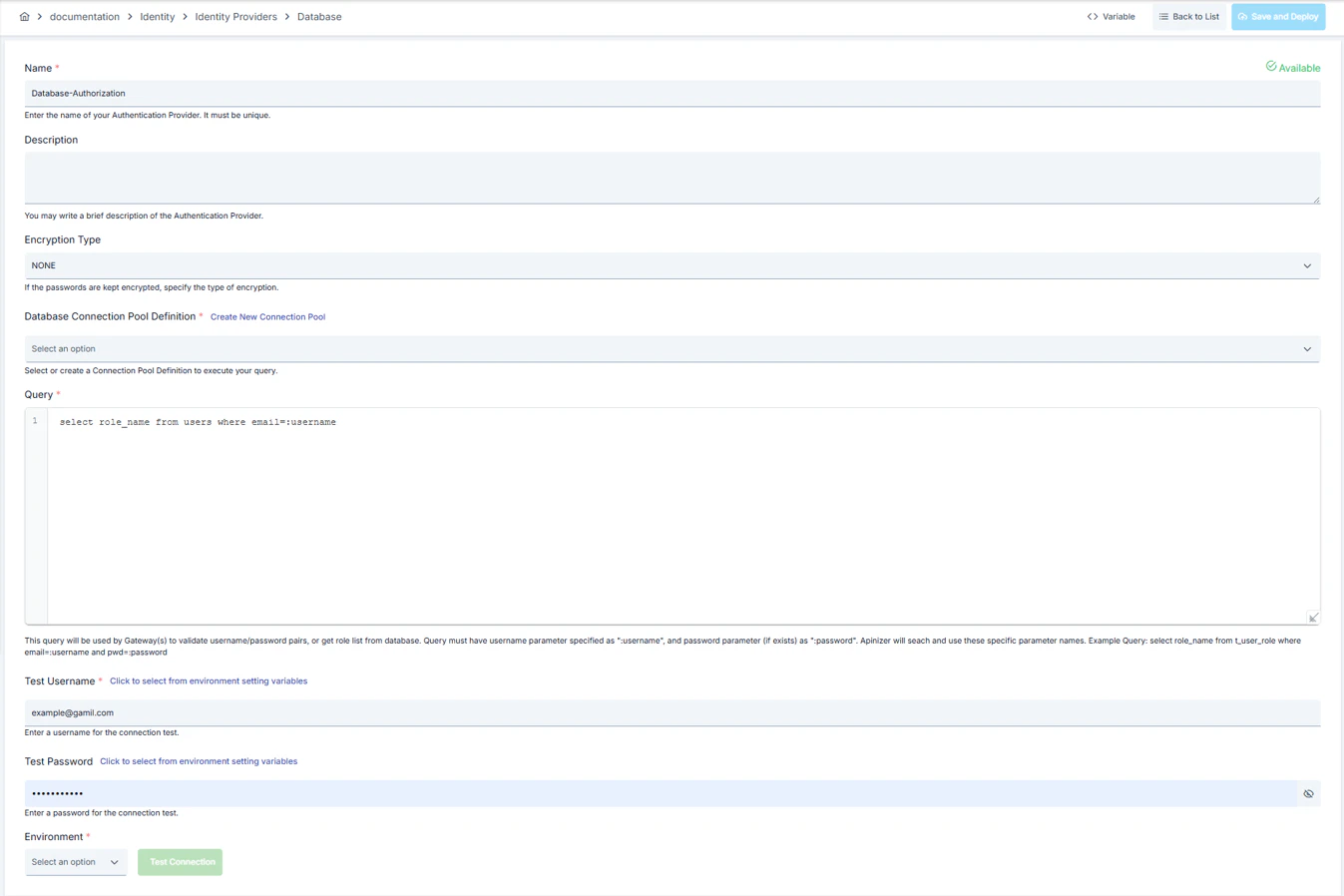

2) Identity Authorization Connection with Database

When performing identity authorization, the role field of the relevant user is obtained in the database query. This role field is later matched with the ROLES/GROUPS field in Authorization in the proxy policy.

Authorization uses the same Database Provider form; the query typically includes only the :username parameter. Example:

select role_name from t_user_role where email=:username

Synchronization

Using the Identity Synchronization Profile tab on the Database Provider edit screen, you can synchronize users from this source into Credential records. For the fields shared with every source — enable/cron, deactivation mode, synchronization scope, and the reconciliation safety net — see Credential Sync. The tab's Synchronize Now button becomes available only after the provider has been saved once; it does not appear yet on the create screen.

User Query Columns

The User List Query is a parameterless SELECT statement. Apinizer reads its result by column alias, case-insensitively, so the query can name its own columns however the source needs and use AS to line them up with the aliases below.

Alias	Required	Meaning
username	Yes	Login name. If no username alias is present in the query result, the first column is used instead. A row with neither a username nor an e-mail is skipped.
email	No	E-mail address.
full_name (or fullname)	No	Full name.
external_id	No	Stable identity at the source. Destructive operations stay off while it is empty — see Reconciliation Safety Net.
enabled	No	Account state at the source. Recognized values (case-insensitive): true, 1, y, yes, t, active, enabled mean active; false, 0, n, no, f, inactive, disabled mean inactive. Anything else is taken as active and recorded as an issue — see Preview Issues below.
organization_path	No	Organization path of the user, for example /Head Office/IT.
organization_external_id	No	Stable identity of that organization.

Organization List Query

An optional second query, Organization List Query, returns the organization tree to reconcile against. Leaving it empty is valid — the tree is then derived entirely from the organization_path values on the user rows.

Alias	Required	Meaning
path	Yes, once this query is configured	Full organization path.
name	No	Display name. The last path segment is used when it is empty.
external_id	No	Stable identity of the organization.
parent_path	No	Path of the parent organization. It is derived from path when empty.

Note

The examples below use PostgreSQL syntax — only the column aliases matter, not the SQL dialect.

SELECT login AS username, mail AS email, display_name AS full_name,
       emp_no AS external_id, status AS enabled, dept_path AS organization_path
FROM users;

SELECT unit_path AS path, unit_name AS name, unit_code AS external_id, parent_unit_path AS parent_path
FROM units;

What Can Go Wrong

Situation	Result
organization_path is not one of the query's columns	The field is never read; a synchronized user keeps the organization it already has.
organization_path is present but blank on a row	That user is linked to no organization, and the run records a diagnostic.
external_id is present but blank on some rows	For those rows the stable identity is treated as missing; the run falls back to matching by user name for them, so renaming a user in the source looks like a removal.
An enabled value is not recognized	The account is taken as active, and the run records a diagnostic.
organization_path uses a backslash instead of a forward slash, or is malformed otherwise	The path is treated as malformed; write it with / as the separator.

Connection Test and Source Preview

Alongside the existing Test Connection button (above, using Test Username/Test Password/Environment), the provider's edit screen offers three more diagnostic tools. All three work against the query and connection currently entered in the form, and none of them writes anything.

Action	What it does
Test connection (step by step)	Measures the connection in 9 separate steps and shows each one on its own row — see Connection Test Step Matrix.
Preview	Reads the first rows the User List Query (and, if configured, the Organization List Query) would return — see Source Preview.
Explain	Walks a single username through the same steps synchronization itself takes, and shows the outcome of each — see Explain User.

Info

All three send requests, from the Manager, using the connection and queries currently entered in the form — they therefore require the "Manage Authentication Services" permission, the same as saving the provider.

Connection Test Step Matrix

Test connection (step by step) opens a Connection Test dialog. Each step is measured separately, so you can see exactly where the connection breaks. If a step fails, every step after it is reported as Not applicable.

#	Step
1	Configuration Check
2	Connection Pool
3	Database Connection
4	User Query
5	Column Contract
6	Account State Values
7	Organization Path
8	Organization List Query
9	Sample Rows

The result table shows, for each step, its status (Succeeded, Failed, Not applicable, or Unsupported), duration, an explanation, and — when relevant — the HTTP status, a provider code, a suggestion, and a technical detail.

Source Preview

Preview opens a Source Preview dialog. This preview runs the user query and reads the first rows; it creates, updates, and deactivates nothing.

• The number of rows read is capped at 200.
• Turning on Dry run reads every page and reports what a synchronization run would change, still without writing anything.
• Results are shown on three tabs: Users, Organizations, Issues.
• The Users tab shows, per row: User Name, Full Name, E-mail, Stable Identity, Account State, Organization Path, and Resolved Organization.
• The Organizations tab shows, per row: Path, Name, Source Code, Source (From list or Derived), and Users.

With Dry run on, a Dry Run Difference box also reports Users read/Organizations read, and how many records would be created, updated, deactivated, unlinked, reactivated, or would skip (a row whose user name is already registered under another project — see DB-I11 below). If the list was read only in part, the would-deactivate counts are reported as zero rather than the real number, to avoid suggesting a mass deactivation that has not actually been checked.

Preview Issues

The Issues tab lists one row per rule the preview's data raised, with a code, a severity, and a finding; some rows also carry a one-click Apply fix.

Code	Severity	Finding
DB-I00	Error	The source could not be read at all — see the step-by-step connection test.
DB-I01	Warning	Row(s) with a blank username/email were skipped.
DB-I02	Warning	The same username is used by more than one row; only the first was created.
DB-I03	Error	A configured column alias is not in the query result.
DB-I04	Warning	Organization path(s) could not be read, for example because of a wrong separator.
DB-I05	Warning	An organization path is not in the configured organization list; it was derived from the user row instead.
DB-I06	Warning	An account state value was not recognized; the account was taken as active.
DB-I07	Warning	The stable identity is blank on some rows.
DB-I09	Info	An organization path matches a manually created organization; it was adopted and stays under manual management.
DB-I10	Info	No organization contract is configured at all; only users are synchronized.
DB-I11	Warning	The user name is already registered in another project, so no credential is created for that row. Rename the user in the source, or move the existing credential to this project.

Explain User

Explain opens an Explain User dialog: enter a username to see step by step why a user is synchronized or not, across 7 steps.

#	Step
1	Row Lookup
2	Raw Values
3	Organization Path
4	Organization Resolution
5	Account State
6	Stable Identity
7	Result

Each step reports Success, Warning, Failed, Not applicable, or Skipped, together with an explanation and, where relevant, the values it read.
