Overview

DevOps Automation

Enables Integration Flow or Connector steps to trigger scripts/commands on remote Linux servers and centralizes DevOps automation.

Credential Management

Makes maintenance, deployment, or monitoring scripts reusable with centralized credential management and reduces manual SSH dependency.

Project-Based Isolation

Enables traceable use of the same configuration across Development/Test/Production environments through project-based isolation.

Active/Passive Management

Allows safe stopping of triggered tasks during planned maintenance through active/passive connection management.

Connection Initiation

When a Linux Script connection is requested from within an Integration Flow or Connector, the system reads the configured connection parameters.

Connection Pool Management

Worker nodes open SSH sessions on-demand; a short-term lightweight cache is used for the same credentials to reduce unnecessary session opening costs.

Authentication

Authentication to the target Linux server is performed with username/password-based SSH Authentication mechanism.

Data Communication

Script body and variables are sent over SSH channel, output stream returns to Connector as JSON.

Connection Management

After the operation completes, the connection is closed and temporary credential data on the worker is cleared from memory.

Error Management

In case of connection error, timeout, or authentication error, detailed error code and message are generated with CustomParameterizedException; root cause is tracked through logs.

Deployment Automation

Automatic triggering of pre/post-deployment scripts

Log and Metric Collection

Periodic execution of log dumps or metric collection

System Health Check

Execution of system health checks for configuration drift control

Security Management

Sequential deployment of security patches or package updates

​
Technical Features and Capabilities

Script Triggering via SSH

Executes parametric bash scripts on remote Linux server without requiring interaction.

Real-time Output and Error Collection

Carries standard output and error streams back to Integration Flow steps; shares with Connector variables.

Project-Based Isolation

Each connection is tagged with a project, projects other than ADMIN_PROJECT_ID cannot see other projects’ resources.

Environment-Based Configuration

Ability to define separate connection parameters for each environment (Development, Test, Production).

Enable/Disable Control

Activating or deactivating the Connection (enable/disable toggle). In passive state, connection cannot be used but its configuration is preserved.

Dynamic Variable Injection

Global, previous task, or loop variables from Connector steps can be injected into script body.

Connector Integration

connector-linux-script component pulls connection list in real-time and makes new connections available as soon as they are added.

Centralized Event Logging

Success/error scenarios are logged with ApinizerMessageService and monitored simultaneously at UI and log layers.

Connection Test Feature

Ability to validate connection parameters before saving with “Test Connection” button.

Export/Import Feature

Export connection configuration as ZIP file. Import to different environments (Development, Test, Production). Version control and backup capability.

Connection Monitoring

Monitoring connection health, pool status, and performance metrics.

​
Connection Parameters

Name

Description: Connection name (must be unique)
Example Value: Production_LinuxScript
Notes: Cannot start with space, special characters should not be used

Host Name

Description: Fully qualified domain name or IP address of Linux server to be accessed via SSH
Example Value: ops-runner-01.apmz.local
Notes: DNS resolution must be possible, must be accessible from relevant worker

SSH Port

Description: Port used to connect to SSH service
Example Value: 22
Notes: Default 22; if different port is used for security reasons, it must be opened in Network/Firewall

Username

Description: Service or automation user on remote server
Example Value: deploysvc
Notes: Should be a restricted user with only necessary folder/script permissions

Password

Description: Password for the user (stored encrypted)
Example Value: (Encrypted value)
Notes: Required in UI; validated in test connection before saving

Description

Description: Purpose or scope description of the Connection
Default Value: (Empty)
Recommended Value: Should include task, server, and risk information

Deploy To Worker

Description: Determines whether the connection will be deployed to Integration Workers
Default Value: true
Recommended Value: Recommended to deploy only to worker pools where it will be used

Environment (Ortam)

Description: Development/Test/Production selection
Default Value: Development
Recommended Value: Appropriate credential selection should be made for the environment

​
Timeout and Connection Pool Parameters

Connection Timeout

Description: Maximum wait time for connection establishment
Default: 5000 ms
Min: 1000 ms | Max: 30000 ms

Request Timeout

Description: Maximum wait time for request response
Default: 60000 ms
Min: 5000 ms | Max: 180000 ms

Pool Size

Description: Maximum number of connections in connection pool
Default: 5
Min: 1 | Max: 20

SSH KeepAlive Interval

Description: Keep-alive interval sent to keep session open during long operations
Default: 30000 ms
Min: 5000 ms | Max: 60000 ms

​
Use Cases

Service Restart After Live Deployment

Situation: Need to restart services after Rolling Deployment completes
Solution: Define service node as host name, systemctl restart commands as script, SSH Port 22
Expected Result: Script executes successfully, services restart sequentially

Log Archiving

Situation: Compressing daily logs and sending to FTP
Solution: Use tar and scp commands in script, give user relevant folder permission
Expected Result: Logs are collected, file path returns in Connector output when transfer completes

Security Patch Check

Situation: Reporting patch level at certain intervals
Solution: Select this connection in Scheduled Job, script returns yum check-update output
Expected Result: Report is transferred to SIEM via Integration Flow

Configuration Drift Detection

Situation: Checksum tracking of critical files under /etc
Solution: Script produces sha256sum output, result is processed as JSON
Expected Result: Files with detected drift are logged as warnings

Disaster Recovery Test

Situation: Infrastructure validation before failover in DR scenario
Solution: Create separate connection copies for host clusters, each runs health-check.sh
Expected Result: DR conditions are confirmed on success, process is stopped on error

High Resource Usage (Optional)

Situation: Automatic intervention when CPU/RAM increases
Solution: Script analyzes top output and restarts services
Expected Result: Automatic correction is performed when threshold is exceeded, connector log contains details

​
Connection Configuration

​

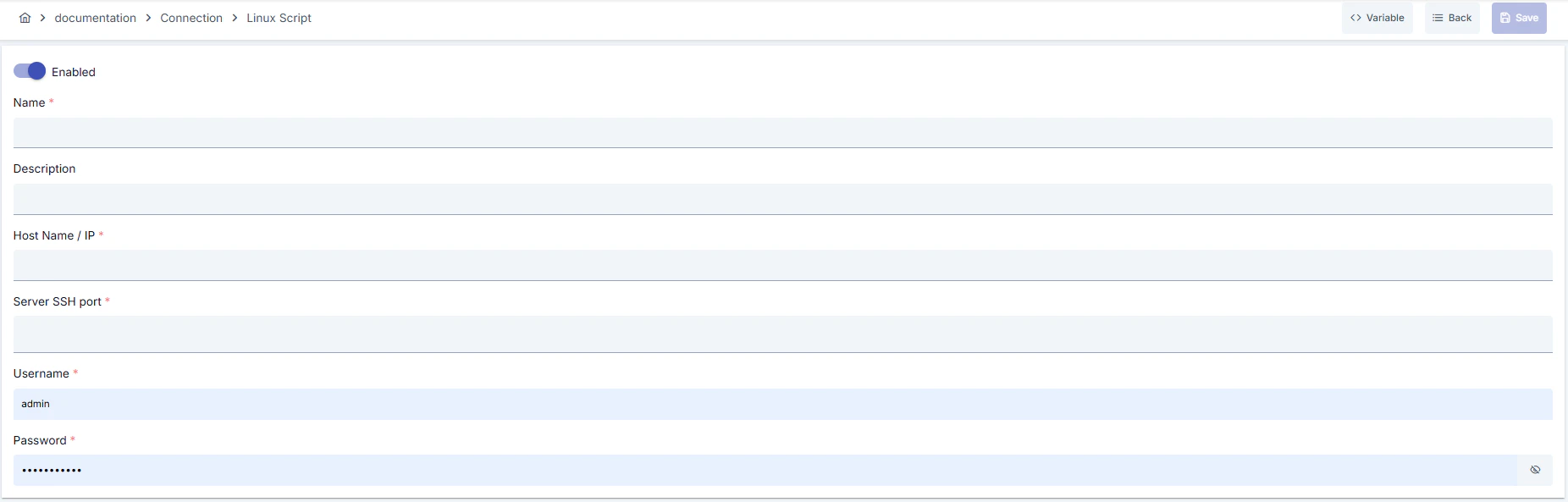

Creating New Linux Script

Image 2024 9 9 15 35 35 Pn

​
Configuration Steps

1

Navigate to Creation Page

  • Go to Connection → Linux Script section from left menu.
  • Click [+ Create] button at top right.
2

Enter Basic Information

Enable Status (Active Status):
  • Set active/passive status with toggle. New connections are active by default.
Name - Required:
  • Example: Production_LinuxScript
  • Enter unique name, cannot start with space.
  • System automatically checks. Green checkmark: available. Red X: existing name.
Description:
  • Example: “Prod node restart scripts”
  • Max. 1000 characters.
  • Describe the purpose of the Connection.
3

Environment Selection

  • Select environment from dropdown menu: Development, Test, or Production.
  • Different connection parameters can be defined for each environment.
4

Linux Server Parameters

  • Host Name: Enter Linux server where script will run with fully qualified domain name (FQDN) or IP.
  • SSH Port: Default is 22; if security policy is different, write new port and ensure it’s opened in firewall.
  • Host access should be tested from worker; inaccessible servers will error during save.
5

Credentials and Script Permissions

  • Username: Use service user with only necessary directory/script permissions.
  • Password: Password field is tested before saving and stored encrypted in database.
  • Ensure user has execute permission on target scripts.
6

Timeout and Connection Pool Settings

  • Adjust connection timeout, request timeout, and pool size values according to workload.
  • Prevent SSH session from closing by reducing keep-alive interval for long-running commands.
7

Security and Authentication Settings

  • Fill credentials from secret manager or environment variable.
  • If SSL/TLS tunneling is required, configure port forwarding through bastion host.
  • Do not use root account; define only service user with necessary permissions.
8

Test Connection

  • Click [Test Connection] button.
  • Test whether connection parameters are correct.
  • Success: Green confirmation message
  • Failed: Error details are shown
9

Save

  • Click [Save and Deploy] button at top right.
Checklist:
  • Unique name
  • Required fields filled
  • Test connection successful (recommended)
Result:
  • Connection is added to list
  • Becomes available in Integration Flow and Connector steps
  • Becomes active according to environment
Connection created successfully! You can now use it in Integration Flow and Connector steps.

​
Deleting Connection

Delete Operation

Select Delete from ⋮ menu at end of row or click [Delete] button on connection detail page

Delete Tips

Check Before Deleting: May be used in Integration Flow or Connector steps. If necessary, assign an alternative connection. Back up with Export before deleting

Alternative: Deactivate

Use Disable option instead of deleting. Connection becomes passive but is not deleted. Can be reactivated when needed

​
Exporting/Importing Connection

In this step, users can export existing connections for backup, moving to different environments, or sharing purposes, or import a previously exported connection again. This operation is used to maintain data integrity in version control, transitions between test and production environments, or inter-team sharing processes.

Method 1

Select ⋮ → Export from action menu. ZIP file is automatically downloaded.

Method 2

Click [Export] button on connection detail page. ZIP file is downloaded.

File Format

Format: Date-connection-ConnectionName-export.zip
Example: 13 Nov 2025-connection-Production_LinuxScript-export.zip

ZIP Contents

  • Connection JSON file
  • Metadata information
  • Dependency information (e.g., certificates, key store)

Use Cases

  • Backup
  • Moving between environments (Test → Prod)
  • Versioning
  • Team or project-based sharing

Import Steps

  • Click [Import Linux Script] button on main list.
  • Select downloaded ZIP file.
  • System checks: Is format valid? Is there name conflict? Are dependencies present?
  • Then click [Import] button.

Import Scenarios

Scenario 1: Name Conflict → Overwrite old connection or create with new name.Scenario 2: Missing Dependencies → Create missing certificates or key stores first or exclude during import.

​
Connection Usage Areas

Creating and Activating Connection

Steps:
  1. Create the connection
  2. Validate connection with Test Connection
  3. Save and activate with Save and Deploy
  4. Ensure connection is in Enabled state

Usage in Integration / Connector Steps

Linux script connector selects this connection in Scheduled Job or ops steps within Integration Flow. Examples: “Execute Linux Script”, “Pre-Deployment Hook”, “Health Check” steps. Connection selection is made from Connection field in these steps’ configuration

Scheduled Job Usage

In scheduled tasks (e.g., daily log archiving, resource usage measurements), commands are executed on remote servers by selecting this connection. Job behavior is updated immediately when connection changes

Test Usage

Connection correctness can be checked independently from Integration Flow with Connection Test feature. This test is critical in debugging process

​
Best Practices

SSH User Management

Bad: Sharing root account for all scripts
Good: Create separate service user for each team
Best: Give permission only to necessary commands in sudoers file according to least privilege principle

Command Versioning

Bad: Manually maintaining current scripts
Good: Store script content in VCS and copy to Connector
Best: Use IaC processes that automatically update script during pipeline

Output Management

Bad: Writing long outputs directly to logs
Good: Filter critical lines
Best: Standardize output in JSON format and pass as parameter to subsequent steps in Integration Flow

Resource Consumption

Bad: Triggering dozens of long-running scripts simultaneously
Good: Spread access with scheduled jobs
Best: Continuously monitor and adjust pool size and keep-alive values according to traffic

Environment Management

Bad: Using same connection parameters in all environments
Good: Create separate connection for each environment
Best: Manage all environments in single connection using Environment option, only change environment during transitions between environments

Connection Test

Bad: Saving and deploying connection without testing
Good: Validate with Test Connection before saving
Best: Test after every parameter change, perform full integration test in test environment before going to production

Credential Rotation

Renew passwords periodically, create new connection during rotation plan and disable old one

Bastion Host Usage

Tunnel through bastion instead of leaving direct internet-exposed port for production servers and apply IP whitelisting

Command Authorization

Give user permission to run scripts only in allowed directories, restrict sudo requirement command-based in sudoers file

Credential Management

Store sensitive information such as username and password using environment variable or secret manager. Do not hardcode credentials in code or configuration files. Update passwords periodically

SSL/TLS Usage

Always enable SSL/TLS in production environment. Use self-signed certificates only in development environment. Track certificate expiration dates and renew on time

Access Control

Allow only authorized users to change connection configuration. Store connection change logs. Apply change approval process for critical connections

Shared Root Account

Why avoid: Single error affects all servers, cannot be audited
Alternative: Define role-based service users

Ignoring Firewall Restrictions

Why avoid: Scripts fail if SSH port is closed
Alternative: Get opening approval from network team for host/port and set up monitoring

Not Validating Script Output

Why avoid: Incorrect success messages mislead processes
Alternative: Parse output and add conditional steps in Integration Flow

Using Production Connection in Test Environment

Why avoid: Test data may be written to production system, real users may be affected, security risk occurs
Alternative: Create separate connection for each environment, use environment parameter, separate connection names by adding prefix according to environment (Test_, Prod_)

Very Low Timeout Values

Why avoid: Connection constantly times out in network delays, Integration steps fail
Alternative: Adjust timeout values according to real usage scenarios, measure network latency and set timeouts accordingly

Not Using Connection Pool

Why avoid: New connection opens on every request, performance decreases, resource consumption increases, target system load increases
Alternative: Enable connection pool, adjust pool size according to traffic volume, set up pool monitoring

Script Duration Monitoring

Recommendation: Add duration metric to Connector outputs, monitor 95th percentile value
Impact: Long scripts are detected early, scaling is performed

Output Size Control

Recommendation: Compress large outputs and return as file, send only summary in Integration Flow
Impact: Payload decreases, Gateway memory is optimized

Parallel Request Planning

Recommendation: Distribute workloads targeting same host, run sequentially with Cron envelopes
Impact: Server resources are used balanced, SSH queues don’t form

Connection Pool Optimization

Recommendation: Set pool size according to peak traffic (recommended: concurrent request count × 1.5), set idle connection timeouts, perform pool health check
Impact: Connection opening cost decreases by 80%, response times decrease, resource usage is optimized

Timeout Values Optimization

Recommendation: Measure real network latency, adjust timeout values accordingly, avoid very low or very high timeouts
Impact: Unnecessary waits are prevented, fast fail-over is provided, user experience improves

Connection Monitoring

Recommendation: Monitor connection pool usage, track timeout rates, perform connection health check, set up alerting
Impact: Problems are proactively detected, performance bottlenecks are identified early, downtime decreases

​
Troubleshooting

Script may be writing to file instead of stdout, JSON format may be invalid, or output key validation may have failed.
1

Script Update

Update script to write to stdout.
2

JSON Validation

Validate JSON output with jq.
3

Output Key Check

Check Connector output key setting.
User may not have access to target directory, sudo requirement may not be met, or host fingerprint may not be verified.
1

User Permissions

Check user permissions.
2

Sudoers Settings

Add command-based permission to sudoers file.
3

Host Fingerprint

Add host fingerprint to worker.
Network delay, target system responding slowly, or timeout value may be too low.
1

Network Check

Check network connectivity.
2

System Health

Check target system health.
3

Timeout Settings

Increase timeout values.
4

Log Review

Review connection logs.
Wrong username/password, expired credentials, or permission problem may exist.
1

Credentials

Verify credentials.
2

User Status

Check that user is active on target system.
3

Permission Check

Check that necessary permissions are granted.
4

Certificate Check

Check SSL/TLS certificates.
Pool size may be too low, connection leak may exist, or traffic may be too high.
1

Pool Size

Increase pool size.
2

Connection Check

Check that connections are properly closed.
3

Idle Timeout

Set idle connection timeouts.
4

Metric Monitoring

Monitor connection usage metrics.
Different connection may be selected in Integration/Connector step, step may be misconfigured, or Flow/Job may not be redeployed.
1

Enable Toggle

Check that connection’s enable toggle is active.
2

Connection Selection

Verify that correct connection is selected in Integration Flow.
3

Connection Deploy

Redeploy connection.
4

Flow/Job Deploy

Redeploy Integration Flow or Job.
5

Log Check

Check Gateway logs.

​
Frequently Asked Questions (FAQ)

No, each connection belongs to a specific project; if sharing is needed, export/import or move-to-global operation should be applied.
No, connector performs single execution. If retry is needed, Retry step should be configured in Integration Flow.
Passwords entered through UI are encrypted when saved, decrypted only at runtime on worker side with UtilCommon.decryptWithDefaultAlgorithm.
During save, ls command is triggered via UtilRemoteLinux.runLinuxCommand; thus SSH and permission validation is performed.
You can select output keys returned from Connector as variables in subsequent steps within Integration Flow; get only necessary fields with JSON path settings.
Yes, the same connection can be used in multiple Integration Flow or Connector steps. This provides centralized management and guarantees configuration consistency. However, changes made to the connection will affect all usage locations, so care should be taken.
Connection pool usage is not mandatory but strongly recommended in high-traffic systems. Reusing existing connections instead of opening new connection on every request significantly increases performance.
Yes, it is recommended to create separate connection for each environment. Alternatively, you can manage all environments in a single connection using environment parameter. This approach provides easier management and less error risk.
Several reasons may exist:
  1. Connection enable toggle may be passive
  2. Different connection may be selected in Integration step
  3. Connection may not be deployed
  4. Integration Flow may not be redeployed yet
