SIEM & Log Forwarding

Info

Reach this screen by following Administration → System Settings → SIEM & Log Forwarding. Only users with the Administrator (Admin) role can open it. Click Save and Deploy to save; changes are pushed to the running Gateway environments immediately.

Overview

Apinizer's configuration database is the system of record for audit, session, token and application events. Whatever you forward to a SIEM is a copy, produced for correlation, alerting and long-term archiving on your side.

The delivery contract is best effort:

• Events are handed to the connector on the path that produced them; the connector buffers and sends them.
• When a connector's queue is full, events are dropped rather than blocking the request that produced them.
• Over UDP and plain TCP syslog, "delivered" cannot be observed. For that reason the test button reports Queued, not Sent, for syslog destinations.
• Nothing is retried from a durable outbox. If the SIEM was unreachable, the record is still in the Apinizer database — it is not in your SIEM.

Warning

Do not design a compliance control that depends on the SIEM copy alone. Query the Apinizer database (Audit Records, Login Records, Token Requests, Application Logs) when you need the authoritative answer, and use the SIEM copy for correlation and alerting.

Concepts

Streams

A stream is one family of events. Each stream has its own producer, its own collection in the Apinizer database, its own event types and its own way of deriving an outcome.

Stream	What it records	Apinizer database collection	Event types	Outcome
Audit	Administrative changes, Management Console requests, rejected requests, sensitive-access events (secret disclosure, package export, API token lifecycle, PII unmask), and operation events (deployments, promotion executions, ACL grants and revokes)	audit_event	ENTITY, MANAGER_REQUEST, ACCESS_DENIED, SECRET_REVEALED, EXPORT, API_TOKEN_CREATED, API_TOKEN_REVOKED, PII_UNMASK, DEPLOY, UNDEPLOY, PROMOTION_REQUESTED, PROMOTION_APPROVED, PROMOTION_REJECTED, PROMOTION_STARTED, PROMOTION_EXECUTED, PROMOTION_CANCELLED, ACL_GRANT, ACL_REVOKE, PROJECT_DELETED	SUCCESS, FAILURE, DENIED
Session	Management Console and API Portal sign-in, sign-out, token refresh, lockout, and the password lifecycle of a locally managed user	persistent_audit_event	LOGIN_SUCCESS, LOGIN_FAILURE, LOGOUT, TOKEN_REFRESH_SUCCESS, TOKEN_REFRESH_FAILURE, ACCOUNT_LOCKED, PASSWORD_CHANGED, PASSWORD_CHANGE_REQUIRED, PASSWORD_POLICY_VIOLATION, LDAP_AUTHORITY_GRANTED, LDAP_AUTHORITY_REVOKED, LDAP_AUTHORITY_REVOKE_SKIPPED_LAST_ADMIN (a system authority granted or revoked by LDAP group mapping; a revoke skipped because the user is the last administrator)	derived from the event type; ACCOUNT_LOCKED is DENIED, LOGIN_FAILURE, TOKEN_REFRESH_FAILURE and PASSWORD_POLICY_VIOLATION are FAILURE, the rest are SUCCESS
Token	Token issuance, refresh and rejection on the Gateway	log_tokentraffic	TOKEN_ISSUED, TOKEN_REFRESHED, TOKEN_REJECTED, TOKEN_REQUEST (a token-family request that is neither an issued token nor a refusal, for example the browser login page)	SUCCESS when there is no error and the HTTP status is below 400, FAILURE when there is an error or the status is 400 or above; authentication errors and the statuses 401 and 403 are DENIED
Application	Component logs from the Management Console, Gateway, Cache and Integration modules	apinizer_log	LOG.TRACE … LOG.ERROR	WARN and ERROR are FAILURE, everything else SUCCESS
API Security	Gateway requests blocked by a policy or failed with an error, across HTTP, gRPC and WebSocket traffic	log_apisecurityevent	AUTHENTICATION, AUTHORIZATION, QUOTA, THROTTLING, VALIDATION, IP_SECURITY, THREAT, ROUTING, GATEWAY, OTHER	DENIED when the request was blocked, FAILURE when it errored
API Access	Every request that passes through the Gateway — successful ones included — as bodiless metadata, across HTTP, gRPC and WebSocket traffic	log_apiaccess	the same ten categories as API Security	SUCCESS when the request completed, DENIED when it was blocked, FAILURE when it errored
Portal	The API Portal's own domain events — an application registered or removed, a subscription requested/approved/rejected/cancelled, an organization membership or join request managed, a support ticket opened, a personal API access token created or revoked	audit_event (the same collection as Audit — see Portal Events)	PORTAL_APP_CREATED, PORTAL_APP_DELETED, PORTAL_SUBSCRIPTION_REQUESTED, PORTAL_SUBSCRIPTION_APPROVED, PORTAL_SUBSCRIPTION_REJECTED, PORTAL_SUBSCRIPTION_CANCELLED, PORTAL_ORG_MEMBER_INVITED, PORTAL_ORG_MEMBER_ADDED, PORTAL_ORG_MEMBER_ROLE_CHANGED, PORTAL_ORG_MEMBER_REMOVED, PORTAL_ORG_JOIN_REQUESTED, PORTAL_ORG_JOIN_APPROVED, PORTAL_ORG_JOIN_REJECTED, PORTAL_TICKET_CREATED, PORTAL_API_TOKEN_CREATED, PORTAL_API_TOKEN_REVOKED	SUCCESS, FAILURE, DENIED

Info

Portal sign-ins and sign-outs are not part of the Portal stream — they are Session events, physically recorded in a separate collection, portal_login_logs, rather than persistent_audit_event. A PORTAL_LOGIN_SUCCESS, PORTAL_LOGIN_FAILURE, PORTAL_LOGOUT, PORTAL_ACCOUNT_LOCKED, PORTAL_ACCOUNT_UNLOCKED, PORTAL_PASSWORD_CHANGED, PORTAL_PASSWORD_CHANGE_REQUIRED, PORTAL_PASSWORD_RESET_REQUESTED, PORTAL_PASSWORD_POLICY_VIOLATION or PORTAL_ACCOUNT_DISABLED event type on the Session row above carries source.component: PORTAL and data.portalId, so a rule can select or exclude portal sign-ins without touching Management Console ones — see API Portal Login Logs for the full catalog (ten types in all). PORTAL_ACCOUNT_DISABLED is written only by the inactive-account job so far; PORTAL_ACCOUNT_UNLOCKED only by an administrator's explicit Unlock on Accounts/Developers — a lock that simply expires on its own writes no event of its own, the sign-in row that follows says what happened.

The API Access stream is the high-volume one

API Access produces one event per request, so it grows at the rate of your traffic rather than at the rate of your incidents. Two settings govern it:

• Local storage — whether the events are written to the log_apiaccess collection at all, on the Streams tab. It is off by default. Turning it on asks for confirmation, because from that moment every request costs a database write.
• The API Access rule of a destination — the stream reaches a destination only when you switch on Send this stream to this destination in that destination's API Access rule.

Before you turn local storage on, set a short retention for the collection — 3 to 7 days is the recommendation — from the API Access Events row on Application Log Cleanup Tasks. Consider sampling the rule that forwards it.

Blocked and failed requests reach two streams

A request that a policy blocks or that ends in an error produces both an API Security event and an API Access event — the two streams overlap on purpose, so that a destination can subscribe to security incidents without the traffic, or to the traffic without duplicating incidents.

If you forward both streams to the same destination, set Outcomes to SUCCESS on the API Access rule. The API Security rule then carries the blocked and failed requests and the API Access rule carries only the successful ones, and nothing is counted twice.

Full traffic logs — the ones with request and response payloads — are still a separate mechanism and are not part of the SIEM streams; they continue to be forwarded by the log connectors of the Gateway environment. An API Access event is metadata only and never carries a body, a header or a query string.

Destinations

A destination is one connector plus everything that is applied before an event reaches it:

Part	Meaning
Connector	The connection configuration that carries the payload — Syslog, Kafka, Webhook, RabbitMQ, ActiveMQ, Logback, Elasticsearch, Graylog or a database connector.
Payload profile	The format of the payload. See below.
Stream rules	Per stream: whether the stream is sent to this destination at all, and which of its events are selected.
Privacy profile	Optional masking, hashing, deletion or encryption applied to the payload before it leaves Apinizer.
Size policy	Optional maximum event size and what happens when an event exceeds it.

The destination record alone decides where a stream goes and with which payload. A stream reaches a destination when the destination is Enabled and that destination's rule for the stream is switched on. The rules always apply. A destination that has no rule for a stream never receives that stream. The same connection configuration can be used by several destinations.

Info

The Portal stream's sixteen domain events reach a destination only when that destination has a Portal rule that is switched on. Portal sign-ins and sign-outs are Session events: a destination receives them through its Session rule, as explained under Portal sign-in delivery.

Payload profiles

Profile	What it produces	Available for
Legacy Raw	The fixed output for your connector type — a database connector still writes SQL columns, a Graylog connector still writes a GELF message, an Elasticsearch connector still writes its own document, and the string-based connectors still receive the same JSON they receive today. The field list is frozen: fields added to Apinizer in later versions do not appear in this output. For the Audit stream, the document holds only the fields listed on Transferring System Logs to Syslog. It has no event type, outcome, client IP address, user agent, correlation ID or source, and the licence key is removed from the object snapshots. A Graylog destination receives the same fields in its GELF message and attributes.	Every connector type
Apinizer JSON v2	The canonical envelope described under Schema v2 — a stable field order, a typed field allowlist, a severity value, and a data object that carries only the fields explicitly permitted for that stream.	Syslog, Kafka, Webhook, RabbitMQ, ActiveMQ, Logback, Elasticsearch, Graylog
CEF 0	A single-line ArcSight Common Event Format record, produced from the v2 envelope after the privacy profile and the size policy have been applied. See CEF and LEEF.	Syslog
LEEF 2.0	A single-line, tab-separated IBM QRadar Log Event Extended Format record, produced the same way. See CEF and LEEF.	Syslog

Info

Database connectors write into fixed table columns and therefore cannot carry the v2 envelope; they stay on Legacy Raw. Privacy profiles and size policies are applied on every profile except Legacy Raw, so a destination that needs masking must be switched to Apinizer JSON v2, CEF 0 or LEEF 2.0.

Warning

Do not point an Apinizer JSON v2 destination and a Legacy Raw destination at the same Elasticsearch index. The source field mapping of the two formats conflicts, and Elasticsearch rejects the Legacy Raw documents with a 400 error. Use a separate index for each format.

Warning

For an Elasticsearch destination, leave the Cluster Administration switch on the connection turned off. Enter an Index Name that is separate from the API traffic log index. Apinizer does not create the SIEM index template. The organization that owns the Elasticsearch cluster creates and manages the template, the ILM policy and the data stream. Ready-made commands are on Elasticsearch Index Templates for SIEM Destinations.

The same rule applies to a Database destination. Apinizer does not create the tables. The organization creates the log_AuditEvent, log_LoginLog, log_TokenTraffic and log_Application tables that Legacy Raw writes to. See Table Creation Commands for Apinizer Logs.

Legacy Raw is kept byte-for-byte compatible so an existing SIEM parser keeps working after the upgrade. It also keeps whatever it emits today, including fields such as the token log's clientInfo. The v2 profile is where the field list is curated: token values, passwords, and Authorization, Cookie and API-key headers are never part of it, and any remaining field whose name looks like a credential is dropped a second time before the payload is sent.

The page

The page has three tabs.

Destinations

The destination list shows the name, the connector type and connection configuration, the payload profile, a badge for every stream routed to it, and whether it is enabled. Add Destination opens the destination dialog, where you configure:

• Name, Description and the Enabled switch.
• Connector — Select Connector opens the same connector editor used elsewhere in Apinizer; Edit Connector reopens it for an existing destination.
• Payload Profile — the list is filtered by connector type. CEF 0 and LEEF 2.0 are single-line syslog formats and are offered only when the destination's connector is a Syslog connector.
• Size Policy — Limit event size, the maximum event size in bytes, and the action taken when the limit is exceeded.
• Privacy Profile — Apply privacy profile plus Apply recommended SIEM profile, which fills in the identity rules for you.
• Stream Rules — one section per stream, each starting with Send this stream to this destination.

Info

A Database destination's connector uses the same Operation field as the Gateway Runtime connectors — only Insert-Update-Delete is offered, regardless of database type. See Adding Log Connectors for details.

Use Send test event on a saved destination to verify connectivity.

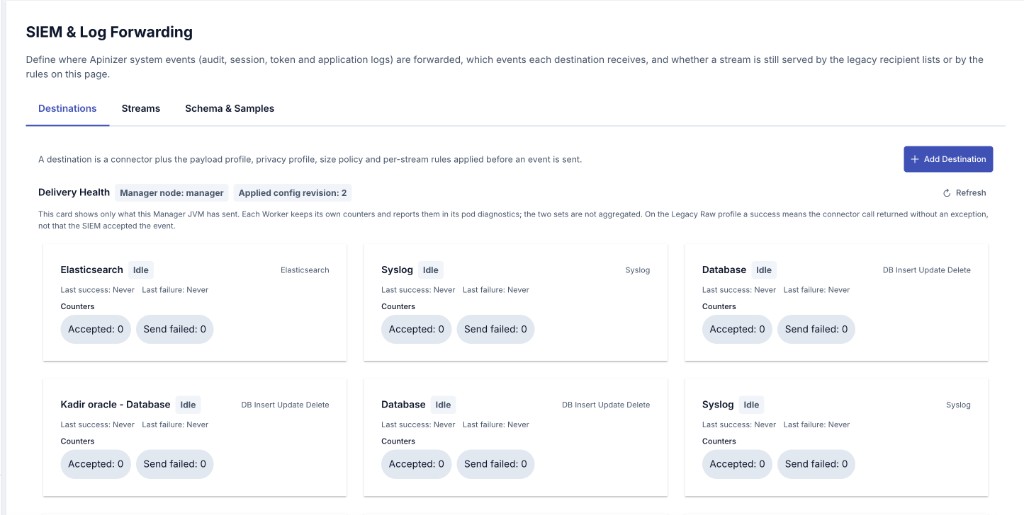

SIEM & Log Forwarding — Destinations tab

Streams

One row per stream, with three columns:

Column	What it does
Stream	The stream's name. A stream that exists in the platform but is not configurable yet would carry a Planned badge; as of this release every stream is configurable.
Apinizer Database / Local Retention	Whether the stream is stored locally, plus a Retention settings link to the retention configuration for that log family. Audit, Session, API Security and Portal are marked Always stored and cannot be turned off. Token and Application have a Store in the Apinizer database switch that is on by default. API Access has the same switch but it is off by default and asks for confirmation before it is turned on — see the warning above. The Audit row also carries two switches. Audit manager requests controls whether Management Console requests are recorded at all. Also audit the request body additionally records the request body; it is off by default, and you can change it only while Audit manager requests is on. See Recording Manager Console Requests.
Destinations	A summary of the rule for each destination configured for that stream. When no destination is configured the cell says No destination is configured for this stream.

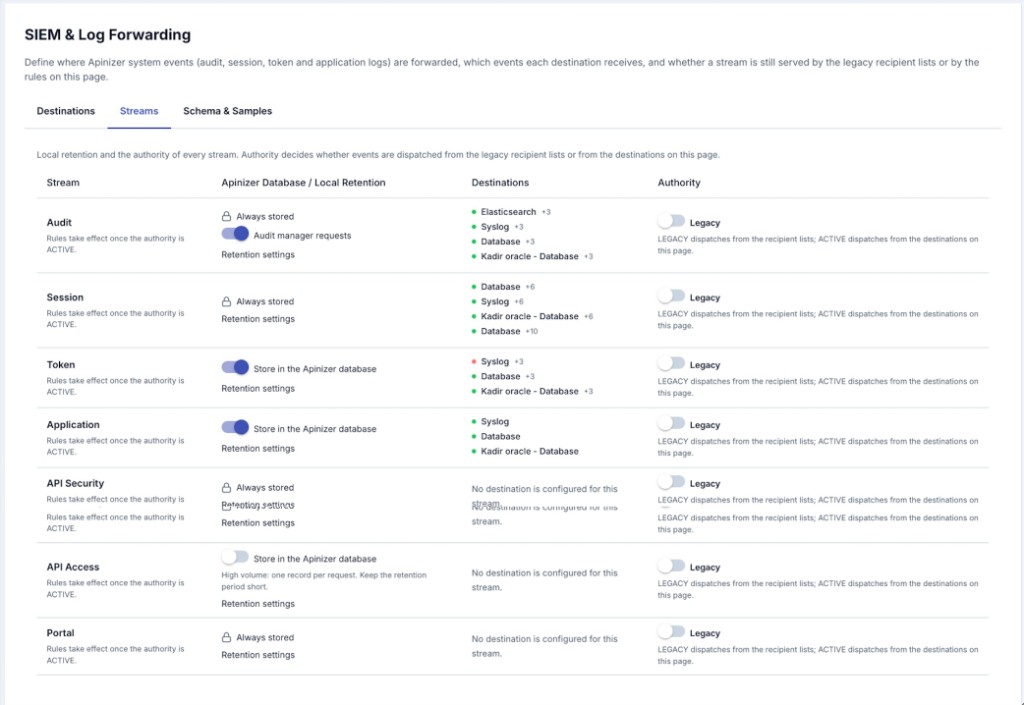

SIEM & Log Forwarding — Streams tab

Schema & Samples

Pick a stream and a profile and the tab renders the payload the running platform produces for that combination, together with the field allowlist. All four profiles can be previewed here, including the CEF and LEEF lines, independently of which connector the destination actually uses. Use it to build your parser, and read the note next to it: new fields may be added without raising the schema version, so your parser must ignore unknown fields.

Below the payload the tab also shows the RFC 5424 STRUCTURED-DATA sample — the framing metadata a Syslog connection writes when structured data is enabled on it. It is not part of the payload. The number in the apinizer@ element of the sample is an example: the real value is the Enterprise Number (PEN) on the Syslog connection, and when that field is empty the element is not written at all.

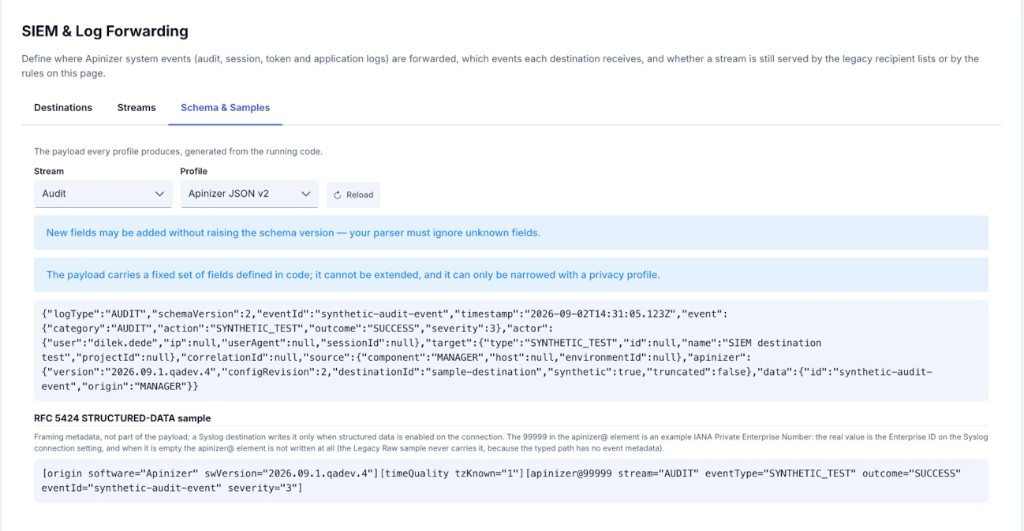

SIEM & Log Forwarding — Schema & Samples tab

Rules

Rules are evaluated at the source, on the path that produced the event, before anything is handed to a connector. There is no scripting and no regular expression matching — the evaluation is a fixed sequence of checks, so it stays cheap even on the token path.

Evaluation order

Step	Check	Result when it matches
1	The rule is switched off	Not sent
2	The event type is in Excluded event types	Not sent — exclusion always wins over inclusion
3	Included event types is not empty and does not contain the event type	Not sent
4	Any dimension of Scope — exclude matches	Not sent
5	Scope — include is not empty and no dimension matches	Not sent
6	The threshold rejects the event — Minimum level for Application, Outcomes for every other stream	Not sent
7	Sample percent is set (API Access only) and this event is not in the sampled share	Not sent — sampled out
8	Maximum events per second has been exhausted for this second	Throttled
9	—	Sent

A value in Included event types and Excluded event types can be an exact event type (ENTITY.CREATED) or a family name (ENTITY). A family name covers every ENTITY.* type.

An explicit Included event types list does not grow on its own: event types added in later Apinizer versions are forwarded through that rule only after you add them. A rule that leaves Included event types empty forwards every type, including the ones added later.

The upgrade to 2026.10.3 changes two explicit lists. A Token rule that lists TOKEN_ISSUED also gets TOKEN_REQUEST. A Session rule that still holds the complete original list also gets the three LDAP authority types. The upgrade changes no other list.

An empty list always means everything: no included event types means every type, no outcomes means every outcome, no scope means every event. Within Scope — include the dimensions are combined with OR — the event has to match at least one filled dimension — while an event matching any dimension of Scope — exclude is dropped.

Sampling

The Sample percent field appears on the API Access rule only, and it is the knob that makes a per-request stream affordable for a SIEM that is priced or sized by event count. Leave it empty to forward every event that matched the rule; set it to 10 to forward roughly a tenth of them.

Two things about it are worth being precise on:

• It thins forwarding, never storage. Sampling decides what leaves for the destination. It does not affect what is written to the log_apiaccess collection — that is governed solely by the local storage switch, so the Security Events screen keeps showing every event regardless of the sample percent.
• The decision is deterministic, not random. It is derived from the event's own identifier, so the same event always gets the same verdict, and a request either reaches every destination that sampled it in or none of them. Re-evaluating the same event never flips the result.

Sampling is the wrong tool for reducing a specific kind of noise — use Outcomes, Scope — include or Scope — exclude for that, and keep sampling for the case where you want a representative slice of everything.

Warning

Sampling is not compatible with using API Access as an audit trail. A sampled destination holds a statistical picture of your traffic, not a complete one; do not point a compliance report at it.

Scope dimensions

Dimension	Matched against	Streams where it is meaningful
Project ids	The project the affected object belongs to	Audit, Session, Token
API proxy ids, API proxy names	The API proxy the event belongs to	Token, Application
HTTP methods	The HTTP method of the token request or of the Gateway request	Token, API Security, API Access
Credentials	The consumer or client key that requested the token	Token
Environment ids	The environment that produced the event	Token, Application
Components	The Apinizer component that wrote the log — Manager, Gateway, Cache, Integration, Portal	Application
Client CIDR blocks	The client IP address, matched against IPv4 or IPv6 CIDR blocks	Audit, Session, Token
Portal ids	The API Portal the event belongs to	Session (portal sign-in/sign-out events only), Portal

Names are matched case-insensitively; identifiers must match exactly.

Warning

Management Console request and access-denied audit events belong to no project. If you fill Project ids with a project identifier, those events stop matching and disappear from that destination. To keep them, add the literal value admin to the list — it selects the events that have no project.

Warning

Management Console sign-ins have no Portal ids to match, and portal sign-ins have no Project ids to match — a filled-in Portal ids scope on the Session stream selects only the portal side of it, exactly the way Project ids already selects only the Management Console side.

Examples

Goal	How to configure it
Send only failed and rejected administrative operations	Audit rule → Outcomes: FAILURE, DENIED
Keep the high-volume Management Console request stream out of a destination	Audit rule → Excluded event types: MANAGER_REQUEST
Forward only one project's events	Audit rule → Scope — include → Project ids: the project identifier (add admin as well to keep platform-level events)
Forward warnings and errors only	Application rule → Minimum level: WARN
Protect a shared syslog target from a token burst	Token rule → Maximum events per second: 200
Forward successful API traffic without duplicating the security incidents	API Access rule → Outcomes: SUCCESS (leave the API Security rule to carry the blocked and failed requests)
Keep a per-request stream affordable on a metered SIEM	API Access rule → Sample percent: 10 — roughly a tenth of the matching events is forwarded, the collection still stores all of them
Send token rejections only	Token rule → Included event types: TOKEN_REJECTED
Forward only one portal's sign-ins/sign-outs	Session rule → Scope — include → Portal ids: the portal identifier
Forward a portal's application/subscription/ticket activity but not its sign-ins	Portal rule with no scope restriction; leave the Session rule for that destination off (or scoped to a different portal)

Privacy profile

Sensitive data is handled in two layers.

The first layer cannot be turned off. Token values, passwords and password hashes, Authorization, Cookie and Set-Cookie headers, API-key headers, query strings, certificate and key material, and the privacy salt itself are never part of a v2 payload. They are not in the allowlist, and a second check removes any remaining field whose name resembles a credential. The same check runs over the change list described under Fields per stream: a changed field whose name resembles a credential carries "[REDACTED]" in place of both the old and the new value. The token-signing key of a Gateway Runtime (the RSA private key shown on the JWT Token Validation Keys tab) belongs to this layer as well: it appears neither in the environment's audit record, nor in the change list, nor in a captured request body.

The second layer is the privacy profile you configure per destination. It is optional and it applies on every profile except Legacy Raw, after the envelope has been produced and before the size policy runs. On a CEF 0 or LEEF 2.0 destination it therefore runs before the line is formatted, so a masked field reaches the line already masked. Each rule targets an envelope field by name, by regular expression, or by built-in PII type (national identity number, IBAN, e-mail address, phone number, card number) and applies one operation: mask, hash, delete, encrypt or detect.

The recommended profile, applied with a single click in the destination dialog, hashes the identity fields — user, email and the consumer name — leaves the IP address readable, and runs built-in PII detection over the free-text fields.

A destination you are creating starts with masking already on for the API Security stream. The moment you switch that stream on for a new destination, its privacy profile is filled with three built-in PII rules — Turkish identity number, Turkish IBAN and card number — each set to mask. An API Security event carries no body, but its credential and path fields can still hold an identifier a caller typed into a URL or sent as a quota key. The three rules appear in the destination's privacy table and you can remove any of them before saving. Nothing is applied to a destination that already exists, a profile you emptied or switched off yourself is never overwritten, and removing the stream rule later does not remove the profile — from that point on it is ordinary configuration. The same default is applied on the server, so a destination created through the API rather than this page is protected too. Note that a privacy profile belongs to the destination, not to one stream: if that destination also forwards Audit, Session or Application events, these three rules apply to them as well.

Rule of thumb	Why
Hash identities instead of deleting them	A salted hash keeps the same user consistent across events, so correlation and user-based alerting still work.
Leave the IP address readable	Most SIEM detections — impossible travel, brute force, unusual source — are built on it.
Do not mask everything	Excessive masking removes the very signals your SIEM needs; an over-masked feed passes an audit and detects nothing.
Set a salt before you use hashing	A hash rule without a salt is rejected.
Rotate the salt deliberately	After a rotation the same user hashes to a different value, so pseudonym correlation across the rotation boundary is broken. Plan it with your SIEM team.

Warning

If masking fails for an event, that event is not sent at all rather than sent unmasked. Losing a copy is preferred over leaking sensitive data. These events are counted separately so you can see them.

The envelope's structural fields — logType, schemaVersion, timestamp, everything under event, and everything under apinizer — are protected. A privacy rule that targets them is ignored, because masking them would break every parser downstream.

Privacy profiles are not applied to Legacy Raw destinations, which reproduce today's output exactly. Switch the destination to Apinizer JSON v2, CEF 0 or LEEF 2.0 if you need masking.

Size policy

The size policy applies on every profile except Legacy Raw and bounds the UTF-8 size of the whole payload, envelope included. On a CEF 0 or LEEF 2.0 destination it is applied to the envelope before the line is formatted; a formatted line that is still over the limit is dropped rather than shortened a second time.

Setting	Behaviour
Off (default)	No limit.
Truncate data	The bulk fields inside data — reference, message, stackTrace, changes — are shortened largest-first until the payload fits, each one marked with a truncation note, and apinizer.truncated is set to true. The envelope fields are never touched. If truncation is not enough, the event is dropped.
Drop the event	The event is not sent and is counted as an oversize drop.
Replace data with a hash	data is replaced by its SHA-256 digest and byte count, so the event is still correlatable but carries no payload.

The minimum you can configure is 1024 bytes. For syslog destinations, 8192 bytes with Truncate data is a good starting point — most RFC 5424 receivers accept between 2 and 8 KB per message and silently cut anything longer. Kafka, Webhook and Elasticsearch destinations normally need no limit.

Application stack traces, audit reference objects and audit change lists are the fields that make an event large. All three are opt-in or bounded: the reference object is off by default on the Audit stream, the change list is on by default but is already capped before this policy ever runs — at most 200 entries, each value cut at 512 characters, the whole list at 512 KB — and the stack trace switch on the Application stream can be turned off for a destination that does not need it.

Info

This is a different control from the Max Message Size (Bytes) on a Syslog connection itself. This size policy shortens, drops or hashes the event's content so it fits a target size; the Syslog connection's setting instead keeps all of the content and splits an oversized message into several syslog messages. See Splitting Oversized Messages for how the two relate when a destination uses both.

Upgrading from the recipient lists

What the upgrade does

Earlier versions kept recipient lists for application, token, audit and login logs under General Settings. When you upgrade, Apinizer converts every recipient on those lists into a destination on this page:

• One destination per recipient, keeping its connector configuration.
• The payload profile is Legacy Raw, with no privacy profile and no size policy. The output is byte-for-byte identical to what your SIEM received before the upgrade.
• A rule for the stream that recipient served. The rule is switched on and has no outcome or scope filter. For the Audit, Session and Token streams, Included event types lists every event type the stream had at the time of the upgrade, so the destination receives the same events as before.
• The local storage switches for token and application logs are copied across.

Nothing else changes: your existing SIEM parsers keep working. A destination that already had rules keeps its rules and its payload profile.

Moving a destination to a new format

A destination keeps its output until you change its payload profile. To move a destination to the new format:

1. Open the destination and review its stream rules — event types, outcomes, scope and the events-per-second limit.
2. Select Apinizer JSON v2 as the payload profile. On a Syslog destination you can select CEF 0 or LEEF 2.0 instead.
3. Confirm the payload on the Schema & Samples tab with your SIEM team.
4. Click Save and Deploy. From this moment the destination sends the new format.
5. Click Send test event and confirm that the event arrives.
6. Watch the Delivery Health counters and your SIEM for a few minutes.

The privacy profile and the size policy of the destination apply from the moment its profile is no longer Legacy Raw. A Database destination always stays on Legacy Raw.

Destinations the upgrade splits

One destination has one payload profile. When one connector must keep two different outputs, the upgrade creates a second record on the same connection configuration. It opens no new connection.

• A connector that is in an old recipient list and also belongs to a destination with rules. The upgrade creates two records. The existing record keeps its rules and its payload profile. A second record named <name>-legacy uses Legacy Raw and carries the streams of the old list.
• A connector that is in a General Settings recipient list and also in a portal list. The upgrade creates a second record named <name>-portal. If the connector also receives Management Console sign-ins, the existing record excludes portal events from its Session rule. The <name>-portal record is limited to the portal events and to the Portal ids of those portals.
• A destination that is switched off stays switched off.

Portal sign-in delivery

Portal sign-ins and sign-outs are Session events. The destinations on this page deliver them, like every other event. To send the sign-ins of selected portals, fill Portal ids under Scope — include in the Session rule of the destination.

The Login Log tab in each portal's settings has no recipient table. It shows an information note that points to this page.

The upgrade converts the recipient list of each portal. For every connector on a portal's list, a destination exists on this page with a Session rule that is scoped to that portal (Portal ids) and limited to the event types a portal produces. If the same connector is also in a General Settings recipient list, the upgrade creates the <name>-portal record described above.

Warning

The recipient lists and the two local storage switches are owned by this page. Values sent for them through the General Settings screen, the Management APIs or APIops are ignored, and so are the values in a whole-project configuration import. Configure them here — this page's own configuration can be moved to another installation on its own, as the SIEM Settings type in the Export/Import wizard; see Export and import below.

Local storage and retention

The first column of the Streams tab answers a different question from everything else on the page: not where is the copy sent, but is the record kept in the Apinizer database at all.

Stream	Local storage	Retention today
Audit	Always stored — cannot be turned off	Configurable under the Audit Records row on Application Log Cleanup Tasks; off by default (365 days once enabled).
Session	Always stored — cannot be turned off	Configurable under the Login Records row on Application Log Cleanup Tasks; off by default (365 days once enabled).
Token	Switchable	Configurable under Log Retention; off by default.
Application	Switchable	Configurable per component under Log Retention and through the Application Log Cleanup Tasks page; off by default.
API Security	Always stored — cannot be turned off	Configurable under Log Retention and through the Application Log Cleanup Tasks page; off by default.
API Access	Switchable — off by default, asks for confirmation before it is turned on	Configurable under the API Access Events row on Application Log Cleanup Tasks; off by default (3 to 7 days recommended, since one row is written per request).
Portal	Always stored — cannot be turned off	Shares the audit_event collection with Audit above, so it shares the same Audit Records retention row on Application Log Cleanup Tasks; the sixteen domain events are not covered by the Portal Login Logs retention switch described below, which only removes sign-in/sign-out records.

Warning

Turning off local storage for the token or application stream means the Apinizer database no longer holds those records, and the Token Requests and Application Logs pages stop showing them. Do it only when at least one destination is confirmed to be receiving them.

Info

The Session row above is only the full picture for Management Console sign-ins. Portal sign-ins and sign-outs live in a separate collection, portal_login_logs, which — unlike persistent_audit_event — does have a retention switch: Portal Login Logs under Application Log Cleanup Tasks, off by default. Turning it on removes old portal sign-in/sign-out records only; administrator sign-ins in persistent_audit_event are unaffected either way.

Export and import

This page's whole configuration — every destination and both local storage switches — can be moved to another Apinizer installation as the SIEM Settings type in the Export/Import wizard. Only a system administrator can export or import it, whether through the wizard or through APIops, and it is reachable only from Administration → Export/Import — a project's own Export/Import menu never lists it, because this configuration has no owning project.

• A destination's connector — the connection configuration it sends to, and its failover connection when it has one — travels as a dependency, the same way a connector travels for any other type. Package it along, or let the wizard map it by name to a connection configuration that already exists on the target.
• Importing is a save and deploy. The import saves the settings through the same path as Save and Deploy on this page. An imported destination that is enabled and whose connector can be resolved starts forwarding on the target immediately, according to its stream rules and its payload profile.
• Replace Existing replaces the target's destination list wholesale with the package's and takes both local storage switches from the package. Import as New appends the package's destinations to the target's list instead — a name already in use there gets an -imported suffix — and leaves the target's own local storage switches untouched.
• The wizard asks only for the target, never for a new name or a Portal. The SIEM configuration is a single installation-wide object, so Import as New does not ask you to rename it — only the destinations inside it get the -imported suffix — and the upload step has no Target Portal choice; that choice belongs to Portal-scoped types such as API Products.
• A destination whose connector cannot be resolved on the target — not packaged, and no connection of the same name and type on the target either — still imports, with Enabled turned off, and the import result names the destination and the connection that could not be found; it is never imported active with a broken reference, and it is never silently dropped. The same applies to a destination's failover connection.
• A destination created by Import as New that sends the API Security stream, and carries no privacy profile of its own, is seeded with the same masking rules described under Privacy profile above, exactly as one created directly on this page is.
• The privacy salt travels in the package as plain text, unchanged — the same way a connector's salt already travels inside other packages today. That is deliberate: two installations only hash the same value to the same result when they share the salt. If the package might sit somewhere shared, such as a CI repository, export it with a passphrase — see Package Encryption on the Export/Import wizard page.

For the full behavior — what belongs to the package, how a name collision is handled, how server-managed fields are treated — see SIEM Settings on the Export/Import wizard page.

Session stream — event types and legacy payload

The Streams table above names the Session event types; this section describes what each one means and exactly what a Legacy Raw destination receives for them. It applies to Management Console sign-ins. Portal sign-ins travel on the same stream but carry their own event names and their own payload shape — see API Portal Login Logs for those.

A Session record is always written to the Apinizer database (persistent_audit_event for the Management Console, portal_login_logs for a portal) and that cannot be turned off. A destination is an additional copy sent alongside the database write, never instead of it.

Management Console event types

Event	eventType	Description
Successful login	LOGIN_SUCCESS	Username and password verified
Failed login	LOGIN_FAILURE	Invalid credentials or locked account
Sign-out	LOGOUT	The user signed out of the Management Console
Token refresh (project switch)	TOKEN_REFRESH_SUCCESS	The session token was renewed for a different project
Token refresh denied	TOKEN_REFRESH_FAILURE	The user has no permission in the requested project (reasonCode=NO_PROJECT_PERMISSION)
Account locked	ACCOUNT_LOCKED	The account was locked after too many failed attempts
Password changed	PASSWORD_CHANGED	A user's password was set or changed — by the account holder or by an administrator
Password change required	PASSWORD_CHANGE_REQUIRED	The user signed in with a password that must be changed before anything else can be done
Password policy violation	PASSWORD_POLICY_VIOLATION	A password was rejected for not meeting the configured password policy

Every event also carries userAgent, and a failed event carries a machine-readable reasonCode. See Login Records for the full field and reason-code reference.

Legacy Raw payload

This is what the Legacy Raw profile produces; its field list is frozen and does not grow in later versions. Switch the destination to Apinizer JSON v2 for the canonical envelope, the shared actor/target blocks and field-level privacy — see Schema v2.

{
  "source": "API_MANAGER",
  "principal": "username",
  "email": null,
  "displayName": null,
  "eventDate": "2026-03-31T10:00:00Z",
  "eventType": "LOGIN_SUCCESS",
  "remoteAddress": "1.2.3.4",
  "message": null,
  "errorType": null,
  "portalId": null,
  "accountId": null
}

A failed sign-in fills message and errorType:

{
  "source": "API_MANAGER",
  "principal": "username",
  "email": null,
  "displayName": null,
  "eventDate": "2026-03-31T10:01:00Z",
  "eventType": "LOGIN_FAILURE",
  "remoteAddress": "1.2.3.4",
  "message": "Bad credentials",
  "errorType": "org.springframework.security.authentication.BadCredentialsException",
  "portalId": null,
  "accountId": null
}

Graylog destinations receive the same event as a GELF message whose short message is LogLogin. With Append to Message on, the JSON above is written to the GELF full_message field; with Append to Attributes on, each populated field (source, principal, email, displayName, eventDate, eventType, remoteAddress, message, errorType, portalId, accountId, userAgent, reasonCode, targetProjectId) is sent as a separate GELF additional field. Fields that are null are omitted.

Info

A Database destination writes Session records into the log_LoginLog table, which is not created automatically — create it before enabling the destination. See Apinizer Log Table Creation Commands for the CREATE TABLE statement for each supported database (Oracle, MySQL/MariaDB, PostgreSQL, SQL Server).

Schema v2

Envelope

Every Apinizer JSON v2 event has the same shape, in the same field order. Envelope fields are written even when they are null, so your parser can rely on them being present; fields inside data are omitted when they have no value. Timestamps are UTC ISO-8601 with milliseconds.

{
  "logType": "AUDIT",
  "schemaVersion": 2,
  "eventId": "68493da280f5de2a3c29c975",
  "timestamp": "2026-09-02T14:31:05.123Z",
  "event": {
    "category": "AUDIT",
    "action": "ENTITY.UPDATED",
    "outcome": "SUCCESS",
    "severity": 3
  },
  "actor": {
    "user": "admin",
    "ip": "10.0.0.7",
    "userAgent": "Mozilla/5.0",
    "sessionId": null
  },
  "target": {
    "type": "ApiProxy",
    "id": "68493bb680f5de2a3c29c609",
    "name": "Swagger Petstore Documentation",
    "projectId": "68493b6e80f5de2a3c29c5ee"
  },
  "correlationId": "dccababd-16e3-415e-b801-9f6a52b6a28c",
  "source": {
    "component": "MANAGER",
    "host": "manager-0",
    "environmentId": null
  },
  "apinizer": {
    "version": "2026.09.2",
    "configRevision": 17,
    "destinationId": "5f2c9a1e-7c4d-4a9b-9f0e-1b2c3d4e5f60",
    "synthetic": false,
    "truncated": false
  },
  "data": {
    "id": "68493da280f5de2a3c29c975",
    "state": "UPDATED",
    "origin": "MANAGER"
  }
}

Envelope field	Meaning
logType, event.category	The stream — AUDIT, SESSION, TOKEN, APPLICATION, API_SECURITY, API_ACCESS or PORTAL.
schemaVersion	2 for this envelope. It is raised only on a breaking change; adding a field is not breaking.
eventId	The identifier of the record in the Apinizer database, or a generated identifier when there is none.
event.action	The event type, dotted with its sub-type where one exists — for example ENTITY.UPDATED or LOG.ERROR.
event.outcome	SUCCESS, FAILURE or DENIED.
event.severity	A 0–10 value derived from the stream and event type. See the table below.
actor	Who caused the event, as far as it is known.
target	What the event was about.
source.component	The Apinizer component that produced the event — MANAGER, WORKER, CACHE, INTEGRATION or PORTAL.
apinizer.configRevision	The revision of this page's configuration that produced the event — useful when correlating a change in the feed with a change in the settings.
apinizer.synthetic	true only for an event produced by the Send test event button.
apinizer.truncated	true when the size policy shortened or replaced data.
data	The per-stream fields listed below, and nothing else.

Warning

Fields may be added to the envelope and to data in later versions without raising schemaVersion. Your parser must ignore fields it does not recognise, and must not fail on a field it did not expect.

Severity

Stream	Value
Audit	Management Console request success 1 · entity change 3 · entity deletion 4 · Management Console request failure 5 · access denied 6 · secret revealed 6 · export 6 · API token created 4 · API token revoked 3 · PII unmask 6 — the last five are fixed by event type and do not vary with outcome; deploy 4 · undeploy 5 · promotion requested 4 · promotion approved 4 · promotion rejected 5 · promotion started 3 · promotion executed 4 · promotion cancelled 4 · ACL grant 4 · ACL revoke 5 · project deleted 5, 6 on failure — of these, only deploy and promotion executed rise on a failed outcome, to 5 and 6 respectively; the rest are fixed by event type
Session	sign-out and successful token refresh 1 · successful sign-in 2 · password changed and password change required 3 · password policy violation 4 · failed sign-in and failed token refresh 5 · account locked 7 · the three LDAP authority events 2 (their outcome is success, so the value comes from the outcome; they have no PORTAL_ twin) · the PORTAL_ twins of the other events carry the identical value each, plus PORTAL_PASSWORD_RESET_REQUESTED 3 (no Management Console equivalent), PORTAL_ACCOUNT_DISABLED 5 and PORTAL_ACCOUNT_UNLOCKED 7 (same weight as the lock it reverses)
Token	request 1 · issued and refreshed 2 · rejected 5
Application	trace and debug 0 · info 1 · warn 4 · error 7
API Security	Authentication/Authorization/IP Security denied 7, failure 5 · Threat denied 8, failure 6 · Quota/Throttling denied 5, failure 4 · Validation 4 · Routing/Gateway denied 4, failure 5 · Other denied 6, failure 5
Portal	Anchored to the equivalent Audit value: token created 4, revoked 3 (as API Token Created/Revoked) · a membership, subscription or join approval, or an app deleted, 4 · an app created, a subscription/membership/join request, an invite, 3 · a subscription, membership, or join rejection/cancellation/removal, 5 · a support ticket created 1. A denied or failed outcome never ranks below the plain denied/failure floor (4/5) even where the row above it is lower.

Fields per stream

The data object carries a fixed set of fields defined in the platform. It cannot be extended, and it can only be narrowed — with a privacy profile, or with the content switches on the rule:

Switch	Stream(s)	Default	When it is off
Include the reference object in the payload	Audit, Portal	Off	data.reference is omitted
Include the changed fields in the payload	Audit, Portal	On	data.changes and data.changedPaths are omitted; data.changesStatus and data.changeKinds are still sent on every entity-change event
Include the stack trace in the payload	Application	On	data.stackTrace is omitted

Audit

Envelope field	Comes from the legacy field
actor.user, actor.ip, actor.userAgent	principal, clientIp, userAgent
target.type, target.id, target.name, target.projectId, target.projectName	className, objectId, objectName, projectId, the project's own name
event.action	eventType, dotted with state for entity changes
data.id, data.state, data.origin	id, state, source
data.reference	referenceObjectJson, parsed into an object — sent only when Include the reference object in the payload is on. The previous-state copy of that object is never sent. The detail fields of the sensitive-access events live here too — for example entityType (the affected asset's own type, such as Certificate, kept separate from target.type so you can filter and correlate on it), disclosedKind and via on SECRET_REVEALED, or sensitiveIncluded on EXPORT — so a SIEM rule that filters on them needs this switch on for the destination.
data.changesStatus	Set on every entity-change event, regardless of the content switches above — DIFFED when the fields below reflect an actual comparison against the previous version, NO_PREVIOUS_SNAPSHOT when there was nothing to compare against (the object's first save), SECRET_FIELDS_MAY_HAVE_CHANGED when the only fields that could have changed are ones that are never written to an audit record at all (see Hidden Fields in Audit Records), and TOO_MANY_CHANGES when the comparison produced more entries than the platform keeps — data.changedPaths still lists every changed path in that case; only data.changes is capped.
data.changeKinds	A system-defined summary of what kind of change this was, one or more of ENDPOINT_ADDED, ENDPOINT_REMOVED, ENDPOINT_METHOD_CHANGED, ENDPOINT_PATH_CHANGED, RELATIVE_PATH_CHANGED, POLICY_ADDED, POLICY_REMOVED, POLICY_CHANGED, ROUTING_CHANGED, CREDENTIAL_ACL_CHANGED, ROLE_PERMISSION_CHANGED, USER_ROLE_CHANGED, SETTING_CHANGED or LICENSE_CHANGED. RELATIVE_PATH_CHANGED refers to the API Proxy's Client Route relative path. LICENSE_CHANGED tells you the licence key was replaced without carrying the key itself (its old and new values are always "[REDACTED]"). Set regardless of the content switches above.
data.changedPaths	Every path that changed, addressed the same way as data.changes below. Sent only when Include the changed fields in the payload is on.
data.changes	One entry per changed value: op (add, remove, replace or move), path, and — for an entry inside a list, such as one endpoint of an API Proxy — key, the id or name that was matched between the two versions so that same endpoint keeps the same path across events even if its position in the list changes. old and new carry the previous and current value; a field whose name resembles a secret (for example a setting named after a password, token or secret, or the licence key) carries "[REDACTED]" in both instead — the entry itself, its op and its path are still sent, so the fact that such a field was added, removed or changed always reaches the SIEM. A field that only describes a password or secret rule, such as the password policy, the maximum password age in days or the password history count, carries its real value. On the first save after an upgrade, a field that the upgrade added is not reported as added: it is compared with the value of a newly created asset, and it appears only if it differs. A value longer than 512 characters is cut, and the list stops at 200 entries (data.changesStatus then reads TOO_MANY_CHANGES). Sent only when Include the changed fields in the payload is on; it is what replaces the need for the previous-state copy of the whole object mentioned above.

Change list examples

An endpoint added to an API Proxy:

{
  "logType": "AUDIT",
  "schemaVersion": 2,
  "eventId": "68c1f2a180f5de2a3c29e001",
  "timestamp": "2026-09-10T09:12:41.000Z",
  "event": { "category": "AUDIT", "action": "ENTITY.UPDATED", "outcome": "SUCCESS", "severity": 3 },
  "actor": { "user": "admin", "ip": "10.0.0.7", "userAgent": "Mozilla/5.0", "sessionId": null },
  "target": {
    "type": "ApiProxy",
    "id": "68493bb680f5de2a3c29c609",
    "name": "Swagger Petstore Documentation",
    "projectId": "68493b6e80f5de2a3c29c5ee",
    "projectName": "Public APIs"
  },
  "correlationId": "3b1f9a2c-6e4d-4a1b-9c0e-2b3c4d5e6f70",
  "source": { "component": "MANAGER", "host": "manager-0", "environmentId": null },
  "apinizer": {
    "version": "2026.09.3",
    "configRevision": 21,
    "destinationId": "5f2c9a1e-7c4d-4a9b-9f0e-1b2c3d4e5f60",
    "synthetic": false,
    "truncated": false
  },
  "data": {
    "id": "68c1f2a180f5de2a3c29e001",
    "state": "UPDATED",
    "origin": "MANAGER",
    "changesStatus": "DIFFED",
    "changeKinds": ["ENDPOINT_ADDED"],
    "changedPaths": ["/apiMethodList/8f1e2c3a-9b4d-4e77-8a2f-1a7c8b9d0e11"],
    "changes": [
      {
        "op": "add",
        "path": "/apiMethodList/8f1e2c3a-9b4d-4e77-8a2f-1a7c8b9d0e11",
        "key": "/pet/findByStatus",
        "new": { "name": "/pet/findByStatus", "httpMethod": "GET", "active": true }
      }
    ]
  }
}

A General Settings change (a platform-wide setting, so it carries no project):

{
  "logType": "AUDIT",
  "schemaVersion": 2,
  "eventId": "68c1f2a180f5de2a3c29e002",
  "timestamp": "2026-09-10T09:15:03.000Z",
  "event": { "category": "AUDIT", "action": "ENTITY.UPDATED", "outcome": "SUCCESS", "severity": 3 },
  "actor": { "user": "admin", "ip": "10.0.0.7", "userAgent": "Mozilla/5.0", "sessionId": null },
  "target": {
    "type": "GeneralSettings",
    "id": "605c1a2b3c4d5e6f70819203",
    "name": "General Settings",
    "projectId": null,
    "projectName": null
  },
  "correlationId": "9d2e8f1a-4c3b-4a2d-8e1f-6b5c4d3e2f10",
  "source": { "component": "MANAGER", "host": "manager-0", "environmentId": null },
  "apinizer": {
    "version": "2026.09.3",
    "configRevision": 22,
    "destinationId": "5f2c9a1e-7c4d-4a9b-9f0e-1b2c3d4e5f60",
    "synthetic": false,
    "truncated": false
  },
  "data": {
    "id": "68c1f2a180f5de2a3c29e002",
    "state": "UPDATED",
    "origin": "MANAGER",
    "changesStatus": "DIFFED",
    "changeKinds": ["SETTING_CHANGED"],
    "changedPaths": ["/navbarColor"],
    "changes": [
      { "op": "replace", "path": "/navbarColor", "old": "#245ca4", "new": "#1e3a5f" }
    ]
  }
}

Session

Envelope field	Comes from the legacy field
actor.user, actor.ip, actor.userAgent	principal, remoteAddress, userAgent
target.type, target.name, target.projectId	fixed User, principal, targetProjectId
event.action	eventType
data	reasonCode, errorType, message (capped at 512 characters), loginSource, portalId, accountId, email, displayName

On a portal-originated row (a PORTAL_ event type), target.type/target.name are PORTAL_ACCOUNT/the account's e-mail rather than the fixed User/principal above, actor.ip and actor.userAgent need the API Portal backend's forward-headers setup described under Known limitations to name the end user rather than the Portal backend host, loginSource is always API_PORTAL, and data carries only reasonCode, message, loginSource, portalId and — on an admin- or job-initiated row such as PORTAL_ACCOUNT_DISABLED or PORTAL_ACCOUNT_UNLOCKED — targetAccountId naming the affected account; errorType, accountId, email and displayName are not part of a portal row (the account is already named by target).

Token

Envelope field	Comes from the legacy field
actor.user, actor.ip	usernameOrKey, httpRequestRemoteAddress
target.type, target.id, target.name, target.projectId	fixed ApiProxy, apiProxyId, apiProxyName, projectId
correlationId, source.environmentId	apinizerCorrelationId, environmentId
data	id, applicationId, applicationName, httpRequestHttpMethod, httpRequestContentType, xForwardedFor, errorType, parentErrorType, authTokenType, audience, scope, tokenNeverExpires, issuedAt, expiresAt, expiresIn, refreshTokenIssuedAt, refreshTokenExpiresAt, refreshTokenExpiresIn, refreshCount, maxRefreshCount

The token response headers, the token response body and the client identifier (clientInfo) that Legacy Raw still carries are not part of the v2 payload. This is the main reason to move a token destination to v2.

Application

Envelope field	Comes from the legacy field
target.type, target.id, target.name	fixed ApiProxy, apiProxyId, apiProxyName, when the log belongs to one
source.component, source.host, source.environmentId	enumApplicationLog, hostName, the environment ID (the environment name when the log carries no ID)
event.action	LOG. followed by the level
data	level, environmentName, message, totalDuration, date, and stackTrace when Include the stack trace in the payload is on (it is on by default)

There is no actor for application logs.

API Security

This stream has no legacy predecessor, so there is no Legacy Raw output to map from — it is only available as Apinizer JSON v2, CEF 0 or LEEF 2.0.

Envelope field	What it holds
actor.user, actor.ip	The consumer that made the request (or anonymous), and its client IP address
target.type, target.id, target.name, target.projectId	fixed ApiProxy, apiProxyId, apiProxyName, projectId
event.action	The category — AUTHENTICATION, AUTHORIZATION, QUOTA, THROTTLING, VALIDATION, IP_SECURITY, THREAT, ROUTING, GATEWAY or OTHER
correlationId, source.environmentId	The request's correlation identifier, and the environment that produced it
data	errorType, parentErrorType, resultType (the raw BLOCKED/ERROR result, alongside the derived event.outcome), statusCode, protocol, httpMethod, path, latencyMs

There is no actor.userAgent for this stream. The request body, headers and query string are never part of the payload — the same bodyless guarantee described on the Security Events page.

Portal

This stream shares its source record — and therefore its envelope shape — with Audit; see the Audit table above, including target.projectName and the data.changesStatus/data.changeKinds/data.changedPaths/data.changes fields. The one difference is source.component, which is PORTAL rather than MANAGER, and the actor: it is the developer's own portal account whenever the API Portal backend could identify one, never the Management API service account it authenticates with — see Portal Events. Every row also carries data.portalId.

CEF and LEEF

A Syslog destination can emit each event as one line in ArcSight's Common Event Format or in IBM QRadar's Log Event Extended Format instead of the JSON envelope. Both are produced from the same envelope, in this order:

1. The event is written into the v2 envelope.
2. The destination's privacy profile is applied, so a masked field reaches the line already masked.
3. The destination's size policy is applied to the envelope.
4. The line is formatted.

Because formatting comes last, a line can still end up longer than the size limit — for example when field names and labels are added around the values. Such a line is dropped rather than truncated a second time, and counted under the dropped_oversize_formatted result. A field that the event does not carry is left out of the line entirely.

CEF 0

CEF:0|Apinizer|API Gateway|<version>|<event type>|<stream>:<event type>|<severity>|<extension>

The severity in the header is the event severity on a 0–10 scale. When the product version is not known on that path it is reported as unknown; when the event carries no severity the header shows 0 and no cn1 key is written.

Extension key	What it carries
rt	Event time, in epoch milliseconds
cat	Stream
act	Event type
outcome	Outcome
suser	Acting user
src	Client IP address
requestClientApplication	User agent
dvchost	Host that produced the event
sourceServiceName	Component that produced the event
externalId	Event identifier
cs1 with cs1Label=correlationId	Correlation identifier
cs2 with cs2Label=targetType	Target type
cs3 with cs3Label=targetId	Target identifier
cs4 with cs4Label=targetName	Target name
cs5 with cs5Label=projectId	Project identifier
cs6 with cs6Label=sessionId	Session identifier
flexString2 with flexString2Label=projectName	Project name
cn1 with cn1Label=severity	Severity
flexString1 with flexString1Label=environmentId	Environment identifier
msg	Everything left in the data object, as compact JSON

The remaining data is carried in msg because CEF offers only a fixed set of custom slots and a receiver silently discards keys it does not know.

Escaping follows the specification: in the header a backslash becomes \\ and a pipe becomes \|; in the extension a backslash becomes \\, an equals sign becomes \=, and a line break becomes \r or \n. A pipe inside an extension value is left as it is, because CEF treats the pipe as a separator only in the header.

LEEF 2.0

LEEF:2.0|Apinizer|API Gateway|<version>|<event type>|x09|<attributes>

The sixth header field, x09, declares the tab character as the separator between attributes, which is the QRadar convention.

Attribute	What it carries
devTime, devTimeFormat	Event time and the pattern needed to parse it
sev	Severity on a 1–10 scale; a severity of 0 is reported as 1
cat	Stream
action	Event type
outcome	Outcome
usrName	Acting user
src	Client IP address
userAgent	User agent
sessionId	Session identifier
resource, resourceType, resourceId	Target name, type and identifier
projectId	Project identifier
projectName	Project name
correlationId	Correlation identifier
eventId	Event identifier
srcNode	Name of the node that produced the event
component	Apinizer component that produced the event
environmentId	Environment identifier
data_<name>	One attribute per remaining field of the data object

LEEF has no escape alphabet, so a tab or a line break inside a value is replaced with a space and an equals sign inside an attribute name is replaced with an underscore.

Tip

Copy the exact line your installation produces from the Schema & Samples tab rather than transcribing the skeletons above — it is generated by the running code for the stream and profile you pick, so it already reflects your privacy profile and version.

Test event

Send test event on a saved destination produces one synthetic event for the stream you choose and sends it through that destination's full outbound path.

• Rules are skipped — the button answers "does this destination work", not "would this event pass my filter".
• The payload profile, privacy profile and size policy are applied, so the test shows exactly what the destination emits.
• On an Apinizer JSON v2 destination the event carries apinizer.synthetic: true and the action SYNTHETIC_TEST. On a CEF 0 or LEEF 2.0 destination the action is the same, but the synthetic marker itself is not part of the formatted line, so filter on the action.
• On a Legacy Raw destination it arrives as an audit record whose class name is SYNTHETIC_TEST. It is never written to the Apinizer database — you will see it in your SIEM only.
• The result is Queued, Sent or Failed. Syslog destinations report Queued: the event was accepted by the connector's queue, but syslog gives no delivery acknowledgement, so nothing stronger can be claimed.

A test event does not touch the delivery health cards or the counters described below — they reflect real dispatches only, so that a connectivity check cannot make a destination look busier or healthier than it is.

Consider excluding SYNTHETIC_TEST in your SIEM's correlation rules so administrator connectivity checks do not raise alerts.

Delivery health

The Destinations tab shows a health card for every configured destination above the destination list. The cards answer one question — is this destination receiving what we send it — and they are read-only.

Each card carries a state badge, the time of the last success and the last failure, the number of consecutive failures, and the Last error line. The line shows the error message. If the failure has no message, it shows the error type. Hover over the line to see the error type. For a Syslog destination the card adds the state of the sender: whether it is up, how many frames are queued, and how many were rejected, lost or blocked for longer than the write timeout. Below that is a compact set of counters — accepted, filtered, throttled, send failed, and one counter per drop reason, including Dropped (oversize formatted line) for a CEF or LEEF line that no longer fit after it was formatted.

State	When it is shown
Failing	The Syslog sender is down, or the last three or more attempts in a row failed
Degraded	One or two consecutive failures, or the sender still has frames queued, rejected or lost
Idle	Nothing has been sent or failed on this node yet, and every counter is zero
Healthy	Anything else — events are going out and nothing is currently failing

The cards refresh every ten seconds while the tab is open and stop when you leave it; Refresh reloads them immediately. When a refresh does not come back the last known values stay on screen with a note saying so, instead of the cards emptying.

Info

The cards describe this Management Console node only, which is why the block carries a Manager node tag. The counters live in memory and start again from zero when the node restarts, and each Gateway keeps its own set, which it reports in its own diagnostics; the two are not added together. Gateway delivery is on the Environment Diagnostics page, in the destinations array of the siem block shown below.

On the Legacy Raw profile a success means the connector call returned without raising an error, not that the SIEM accepted the event. Delivery is best effort in every profile, and a syslog server gives no acknowledgement of its own.

Observability

When Prometheus metrics export is enabled on the Management Console, its Prometheus endpoint (/management/prometheus) publishes the following SIEM counters:

Metric	Labels	What it counts
siem_events_total	destination, stream, result	Every dispatch attempt. result is accepted, filtered, throttled, dropped_oversize, dropped_oversize_formatted, dropped_secret, privacy_failed or send_failed. dropped_oversize_formatted counts a CEF or LEEF line that exceeded the size limit after it was formatted.
siem_events_filtered_total	destination, stream, reason	Filtered events broken down by the rule step that rejected them.
siem_dispatch_duration_seconds	stream	How long dispatching takes on the producing path.
siem_config_revision	—	The revision of the configuration currently in effect. Use it to confirm that a saved change reached the node.

The Gateway does not expose a Prometheus endpoint; the same counters are published in its diagnostics output, which you can read from the Environment Diagnostics page, under a siem block:

{
  "siem": {
    "configRevision": 17,
    "events": {
      "5f2c9a1e-7c4d-4a9b-9f0e-1b2c3d4e5f60|TOKEN|accepted": 41822,
      "5f2c9a1e-7c4d-4a9b-9f0e-1b2c3d4e5f60|TOKEN|filtered": 6103,
      "5f2c9a1e-7c4d-4a9b-9f0e-1b2c3d4e5f60|TOKEN|throttled": 55
    },
    "filteredReasons": {
      "5f2c9a1e-7c4d-4a9b-9f0e-1b2c3d4e5f60|TOKEN|threshold": 6103
    },
    "dispatchDuration": {
      "count": 47980,
      "totalNanos": 1583340000,
      "averageNanos": 32999
    },
    "destinations": [
      {
        "destinationId": "5f2c9a1e-7c4d-4a9b-9f0e-1b2c3d4e5f60",
        "lastSuccessAt": "2026-09-03T10:23:25.922Z",
        "lastFailureAt": null,
        "lastFailureClass": null,
        "consecutiveFailures": 0,
        "sentSinceStart": 41822,
        "failedSinceStart": 0,
        "sender": {
          "healthy": true,
          "queuedCount": 0,
          "queuedBytes": 0,
          "rejectedCount": 0,
          "lossCount": 0,
          "recoveredBatchCount": 0,
          "idleReconnectCount": 0,
          "reconnectCount": 1,
          "peerClosedAtAcceptCount": 0
        }
      }
    ]
  }
}

The destinations array reports what that Gateway node has delivered, with one row per destination, sorted by identifier so that two support bundles can be compared. A destination that is configured but has never produced an event appears with empty timestamps and zero counters, which distinguishes "the configuration never reached this node" from "it is here but nothing matched a rule". sender is filled in only for a Syslog destination whose connection pool has been created, and is null otherwise. The counters are in-memory and start again from zero when the pod restarts.

Two of the sender counters separate a receiving side that closes idle sessions from one that genuinely cannot keep up: idleReconnectCount counts sockets the Gateway refreshed before writing because nothing had been sent on them for a while, and recoveredBatchCount counts batches that failed once and then succeeded on a fresh socket. A recoveredBatchCount that keeps rising while lossCount stays at zero means no records are being lost and the receiving side is closing sessions sooner than the Gateway's own threshold — see Idle Connections and Reconnects on the Syslog connection page. A rising lossCount or rejectedCount is the different, more serious case.

The remaining two sender counters point at the receiving side rather than the network: reconnectCount is the total number of fresh TCP connections a destination's sockets have opened since the pod started — a socket's first connection counts too, so a sender that has never dropped still shows one per socket, and anything above that is a drop followed by a reconnect. peerClosedAtAcceptCount counts how many of those connections the receiver closed again immediately after accepting them, before a single byte went through. A peerClosedAtAcceptCount above zero means the fault sits on the receiving side — a session limit, a source-IP rejection, or a load balancer in between — not in the network path or on the Gateway. When both counters climb together on nearly every batch, the receiver is opening and dropping a session per attempt (a connection storm): each dropped connection still counts as a connection failure, so three in a row move that destination's traffic to its failover connector, the same as any other connection error. See Receivers That Close the Connection Right After Accepting It on the Syslog connection page for the receiver-side signal and the tuning properties.

A configRevision that differs between nodes means a node has not received the latest save yet. A rising send_failed or throttled count is the earliest sign that a destination cannot keep up.

Known limitations

• The save that adds a destination does not deliver its own audit rows to that destination. The audit records produced by that very save are dispatched before the recipient cache is refreshed; forwarding to the new destination starts with the next event (best-effort delivery).
• Delivery is best effort. There is no durable outbox and no replay. What the SIEM missed is still in the Apinizer database, but it will not arrive at the SIEM later.
• Database connectors are limited to Legacy Raw, and therefore to today's field list, with no privacy profile and no size policy.
• Privacy profiles and size policies apply to every profile except Legacy Raw. A Legacy Raw destination emits its current output unchanged.
• The health cards are node-local and not persistent. They cover only the Management Console node that answers your request, and every counter starts again from zero when that node restarts. Gateway delivery is reported separately, per pod, in the environment diagnostics.
• A busy Syslog destination can show Degraded while it is perfectly healthy, because a refresh that catches a non-empty send queue is enough for that state. Rejected and lost frames are also counted from the moment the sender started, so a single loss from days ago keeps the badge on Degraded until the connection is saved again and the sender is rebuilt.
• Application logs from the Cache and Integration modules are still forwarded through the legacy recipient list, so rules, privacy profiles and size policies do not apply to them. Application logs from the Management Console and the Gateway follow this page.
• A connection configuration shared by several streams shares one queue. An application-log burst can crowd out audit events on the same syslog connection. Give a high-volume stream its own connection configuration, or bound it with a minimum level and an events-per-second limit.
• A whole-project configuration import still ignores the recipient lists and local storage switches — this page owns them, so use the SIEM Settings type in the Export/Import wizard instead; see Export and import above.
• A blocked or failed request is counted by two streams. It produces an API Security event and an API Access event. Set Outcomes to SUCCESS on the API Access rule when both streams go to the same destination — see Streams.
• Sampling an API Access rule thins only what is forwarded, never what is stored. The log_apiaccess collection still receives every event while local storage is on, so bound it with a short retention rather than with the sample percent.
• API Access local storage is off by default and stays off after an upgrade. Until it is turned on, the API Access tab of the Security Events screen is empty even when the stream is being forwarded to a SIEM destination.
• API Security and API Access destinations must use Schema v2, CEF or LEEF — Legacy Raw is not available for these streams, because a new destination defaults to Legacy Raw and the events would otherwise be dropped silently.
• A newly introduced event type is not added to an explicit Included event types list automatically. This applies to every stream, including the Portal domain events. A rule left with an empty Included event types list is unaffected and always picks up new types — see Evaluation order.
• The client IP and User-Agent on a portal-originated Session or Portal event depend on the API Portal backend sitting behind a reverse proxy or ingress that is configured to pass the real client address through (server.forward-headers-strategy on the Portal backend, matching whatever your proxy sends). Without that, these fields fall back to the Portal backend's own host address rather than the end user's.
• The change list is on by default on every Audit and Portal destination, including ones created before this version. Include the changed fields in the payload defaults to on, so an existing v2 destination starts sending data.changes and data.changedPaths after the upgrade without any action on your side; data.changesStatus and data.changeKinds are sent on every entity-change event regardless of the switch. A Legacy Raw destination is not affected at all — its field list is frozen.
• Apinizer does not manage the schema of Elasticsearch and database destinations. The Cluster Administration switch on an Elasticsearch connection sets up the template for the API traffic log only. For SIEM documents, the organization creates the template, the ILM policy and the data stream. Database tables are not created automatically either. See Elasticsearch Index Templates for SIEM Destinations and Table Creation Commands for Apinizer Logs.
